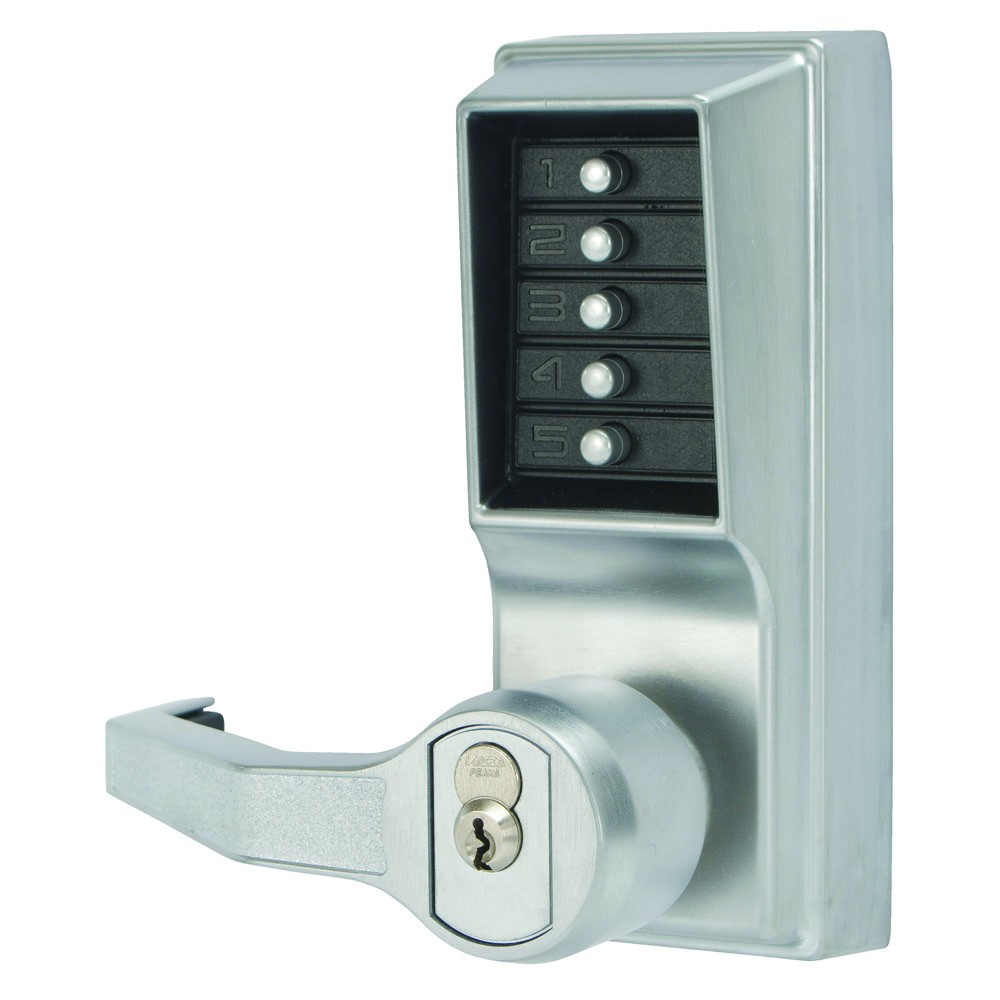

Kaba Access Combination Cylindrical Lever Locksets

• No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements
• Locking Device: Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors
• Number of Codes: Single access code—one easy-to-manage code for all users
• Programming: Lock is easily programmed via keypad without removing lock from the door
• Handing: Factory-handed for left-hand doors; easily field reversible
• Key Override (Optional): Small format interchangeable cores, large format removable cores
• Operation Modes: Pushbutton Access

Mechanical Features

• Construction: Heavy-duty cylindrical lock housing with cast front housing; unified trim plate, and fixed ADA-compliant levers
• Numeric Keypad: Vandal resistant, solid metal pushbuttons
• Handing: Factory-handed, not field reversible
• Standard Finish: Satin Chrome 26D (626)
• Backset: 2¾" (70 mm), 2⅜" (60 mm)
• Latch: ½" (13 mm) throw latch
• Minimum Stile Recommended: 5" (127 mm)
• Weight: 7.25 lbs. (3.3 kg)
• Strike: Standard strike plate; ASA strike plate

Key Override

• Interchangeable Cores: Small format—Best and equivalents (6 or 7-pin length); core not included
• Removable Cores: Large format—Medeco/ASSA/Yale/Abloy (5 or 6-pin length),
• Corbin Russwin (6-pin length), Schlage, and Sargent; core not included

Installation

• Door Preparation: Easily installs on wood or metal doors. ASA 161 door preparation with additional through bore holes required.
• Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm)—Pre-assembled to accommodate 1⅝" (41 mm) to 2" (51 mm)
• Items Supplied Include: Lock assembly, installation manual, full-scale template, combination change plug and access key, and required installation hardware

Certification and Testing

• Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant lever
• Durability: Weather resistant
• Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
