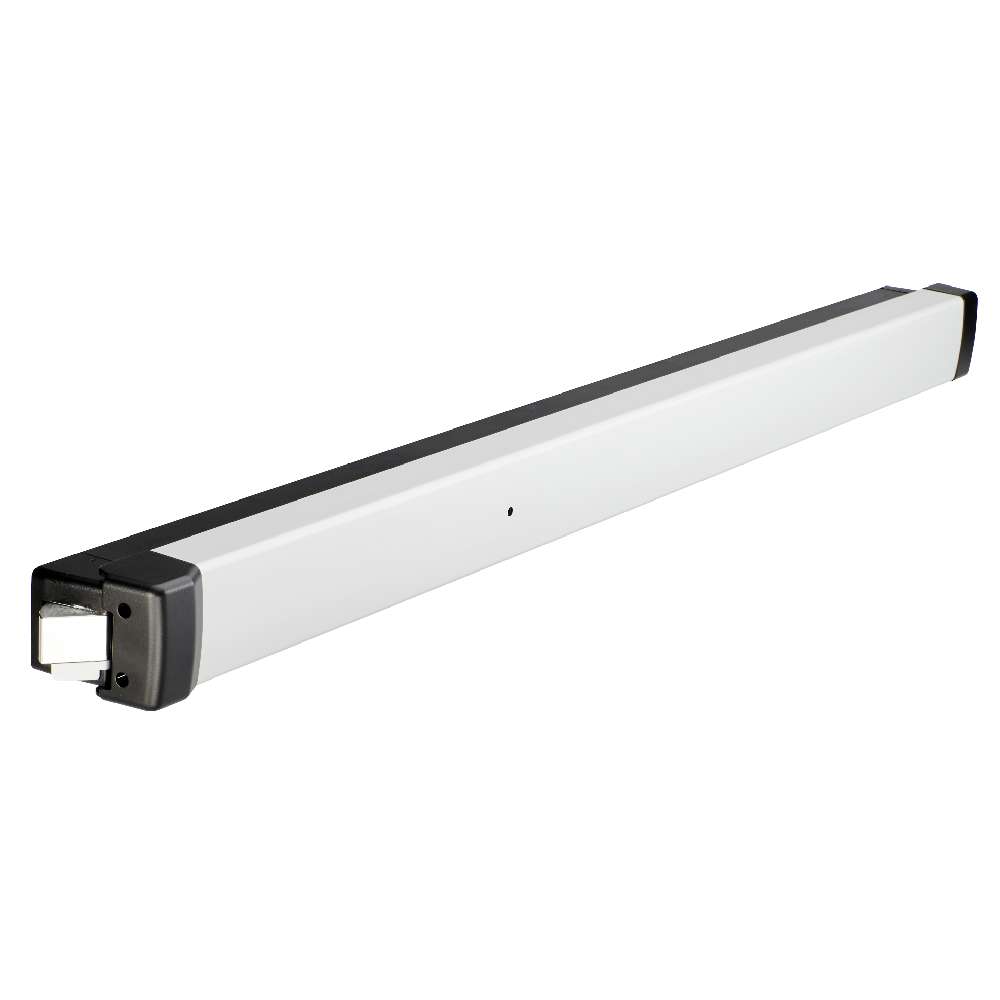

Adams Rite P8800 Rim Exit Cylinder Single 48in Satin Steel

SKU # AD/P8800CM48US32DMEC

Read Review(s) | Log in to Review

Adams Rite P8800 Series Pullman Rim Exit Devices Cylinder Dogging Single Switch 48in Satin Stainless Matching End Caps features include:

  • Active pushbar and back bar made of extruded aluminum, available in choice of finishes.
  • Device is non-handed.
  • Standard sizes: dimensioned for 30" [762.0 mm], 36" [914.4 mm], 42" [1,066.8 mm], and 48" [1,219.2 mm] openings.
  • Standard width bars can be field cut to the next smallest opening width.
  • Can be used with trim on 1-3/4" thick doors, up to 2-1/4" door thickness.
  • When cylinders are required, select rim cylinder length based upon door thickness.
  • Minimum 2" stile. Fits ultra-narrow, narrow, medium, and wide stile aluminum doors.
  • Standard cylinder dogging with 3/16” hex key.
  • Device mounted using standard type ‘F’ self-tapping screws. Rivnuts are provided for the P8700 only.
  • Horizontally adjustable strike assembly body made of Zamak 5 with hardened steel roller.
  • Standard strike assembly suitable for centering doors in 4" jamb.
  • Strike plate adjusts 1/4" horizontally.

Delivery: The Adams Rite P8800 Rim Exit Cylinder Single 48in Satin Steel is in stock, please allow 1-2 business weeks' lead time.

US$557.40

Description:

Description:

Adams Rite P8800 Rim Exit Cylinder Single 48in Satin Steel

Adams Rite P8800 Series Pullman Rim Exit Devices Cylinder Dogging Single Switch 48in Satin Stainless Matching End Caps

Pullman Rim Exit Devices are designed for narrow stile aluminum (P8800), hollow metal and wood (P8700) applications that require a life-safety exit device with Pullman latching solution. The P8800 and P8700 features a 3/4" stainless steel Pullman latchbolt.

When the door closes, the 3/4" throw deadlocking stainless-steel Pullman latch bolt nests inside the strike assembly and the smaller deadlatch rests on the strike assembly activating the deadlatching feature. When the active pushbar is depressed, both the Pullman latchbolt and the smaller deadlatch are retracted, allowing the door to open. Suitable for use on single doors, or with mullion on pairs of doors. Designed for optimal performance in high-use areas.
