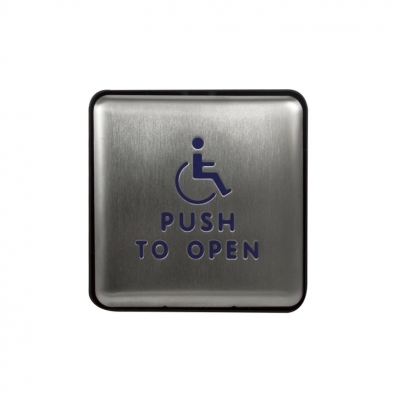

BEA 10EMS4751 Panther Plate, 5.74" Square Push Plate
BEA’s PANTHER FAMILY consists of 900 MHZ or 433 MHZ wireless technology integrated into 6 INCH ROUND, 4.75 INCH ROUND and 4.75 INCH SQUARE PUSH PLATES. With an integrated wireless transmitter and mounting box, the PANTHER FAMILY reduces installation time by eliminating the need to run wires from the push plate or use additional mounting hardware. This offers greater mounting flexibility in areas where hardwired push plates cannot be mounted.
Enhances accessibility
Offers a means of activation of automatic doors for these with limited mobility or disabilities
Wireless compatibility
Reduces installation time by eliminating the need to run wires from the push plate or use additional mounting hardware
Weather-rated
IP65 rated housing creates a weather resistant barrier that enables the push plates to be mounted in outdoor environments or wash-down applications
Vandal resistant
Concealed fasteners minimize vandalism
Technical Information:
- Dimensions: (W x H x D) 5.12 in x 5.12 in x 1.42 in
- Weight: 1.04 lbs.
- Mounting Options: Surface or bollard mount
- Transmitter Frequency: 433 MHz
- Power: 12V Type A23
Material:
- Faceplate: 16 Gauge, 304 2B Stainless Steel
- Housing: ABS Plastic
Degree of Protection:
- NEMA 4 / IP65
- FCC IC Part 15 Approved
