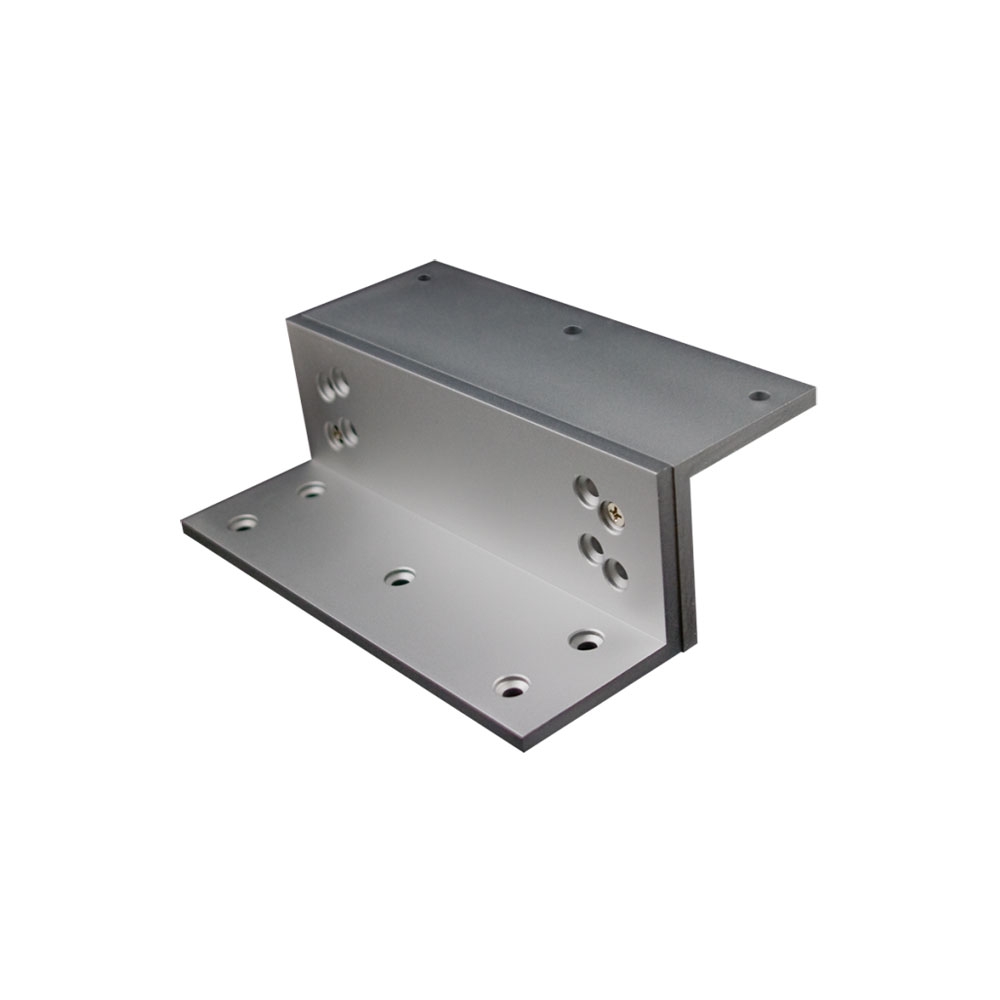

BEA 10LZBRGATE1200 Maglock Bracket, L and Z Bracket
BEA UL Listed Gatelocks are designed to withstand the elements, featuring a stainless steel exterior and NEMA 4 enclosure to protect internal electronics. Its weather-resistant construction makes it ideal for industrial gate and exterior door applications. With a holding force of 1,200 lbs, the Gatelock is available in both a front mount model for sliding gates and a side mount model for swinging doors/gates. These locks include a built-in lock status sensor with a output relay.
Product Features
1200lbs holding force
3/4 inch male NPS threaded conduit fitting
Watherized
Built-in remote lock status sensor with an output relay
Model
10GL1200R
Product Specifications
- Current Draw: 500 mA @ 12vdc, 250 mA @ 24vdc
- Material: Stainless Steel
- Sensor: Lock status sensor with relay output
- Cable Specifications: 24 AWG 7-conductor cable, 3.5ft
Product Dimensions
8.75 inches (W) × 2.50 inches (H) × 1.625 inches (D)
