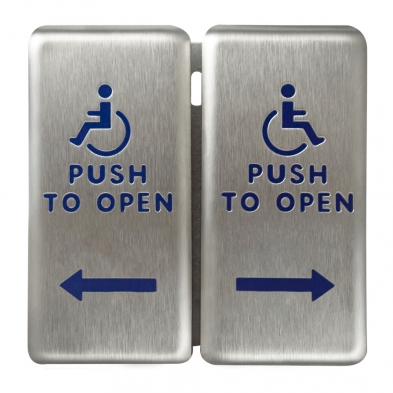

BEA 10PBDGP1 Stainless Steel Push Plate

BEA 10PBDGP1 Stainless Steel Push Plate

The PBDGP Series dual vestibule push plate from BEA provides an aesthetically pleasing solution for vestibule applications. Vestibule push plates provide an option to open one set of doors independently from the other set. 10PBDGP1 are two separate push plates that measure 4" x 4" together. They feature the blue Handicap logo, arrow and "Push to Open" text. The set provides a more efficient design for vestibule applications by eliminating the need for two separate push plates on a wall. Beveled edges reduce accidental damage from any side. Stainless steel faceplate is scratch/scuff resistant and will not deteriorate or rust from exposure to liquids or cleaning products. Graphics are etched onto the faceplates for maximum durability. A weather boot is located between the faceplates and the backplate for all-weather applications. Additionally, these push plates are ideal solutions for any doors with automatic sequencing applications. Adapter ring included. Requires two 10TD433PB3V transmitters.

Product Highlights:

• Aesthetically pleasing solution for vestibule applications
• 4" x 4" stainless steel dual push plates
• Features blue Handicap logo, arrow and "Push to Open" text
• Open one set of doors independently from the other set
• Eliminates the need for two separate push plates on a wall
• Beveled edges reduce accidental damage from any side
• Stainless steel faceplate is scratch/scuff resistant
• Will not deteriorate or rust from exposure to liquids or cleaning products
• Graphics are etched onto the faceplates for maximum durability
• Weather boot located between the faceplates and the backplate for all-weather applications
• Ideal solutions for any doors with automatic sequencing applications
• Adapter ring included
• Requires two 10TD433PB3V transmitters
• Technical Information:
• Faceplate Material: 16 gauge, 304 2B Stainless Steel
• Backplate Material: 1/8-inch-thick, Aluminum
• Mounting Screws: Stainless Steel
• 6-32 x 1 in & 8-32 x 1 in
• Allen Head Size: 5/64
• Cherry Switch: Single-pole, 15A, COM/NO/NC, UL Recognized
