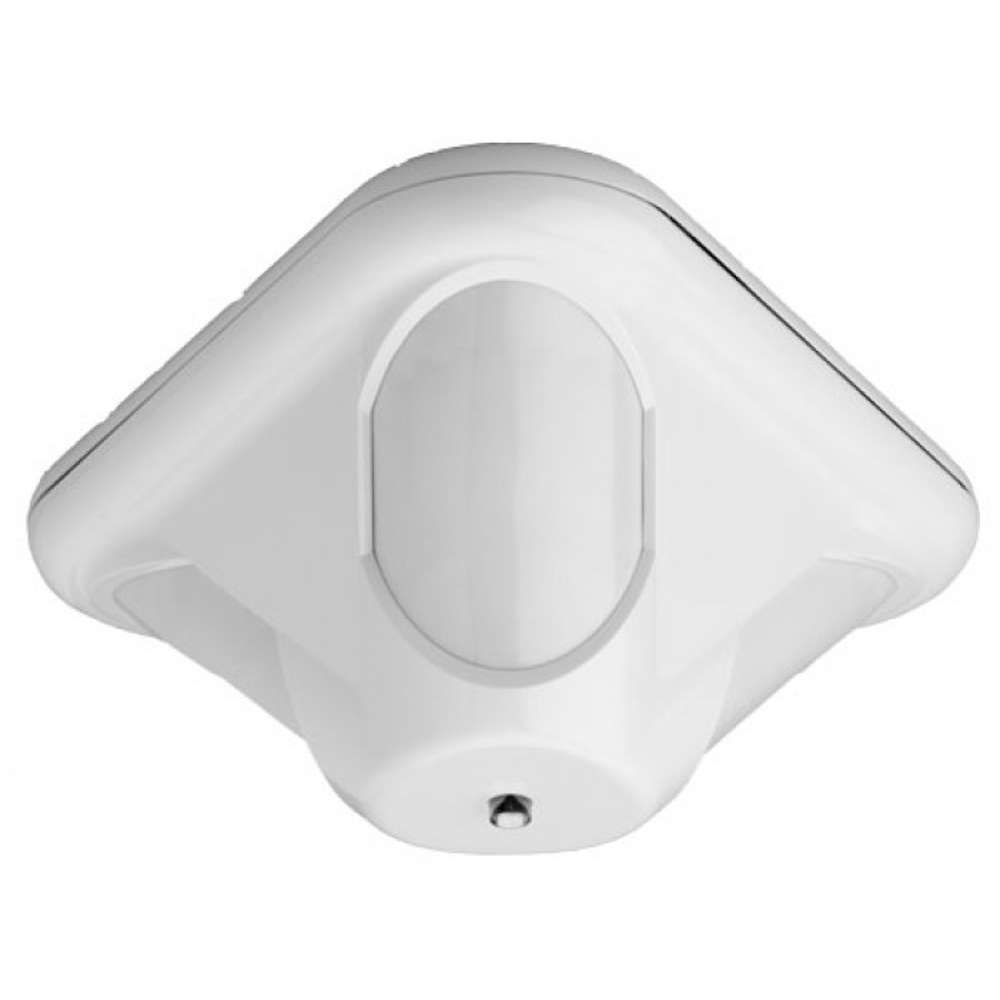

Bosch DS9370 Panoramic TriTech Ceiling Mount Detector

Bosch DS9370 Panoramic TriTech Ceiling Mount Detector

The Bosch DS9370 TriTech® PIR/Microwave Detector model is panormaic and uses several patented processing techniques to provide excellent catch performance with freedom from false alarms. Each model can be mounted on ceilings as high as 7.6m (25ft). With three separate PIR sections that are fully adjustable, the DS9370 Series provides coverage integrity at all mounting heights, plus the ability to customize the coverage for specific areas.

Features and Benefits:

- Fully adjustable optics for coverage integrity and customization.
- Hinged chassis and base plate for easy installation.
- High efficiency LED and light pipe system for easy walk testing.
- First Step processing, or FSP.
- 10.525 GHZ-compatible, in white.

Dimensions: 8.9 cm x 17.8 cm (3.5" x 7").
Current: 12 mA standby, 20 mA in alarm. Max 24mA.
Voltage: 9 VDC to 15 VDC.
