Centrios CEB100TB619180354L Grd1 Bluth Cyl TB KeyLvr Cyl Nkl

SKU # CN/CEB100-TB619-1803-54L

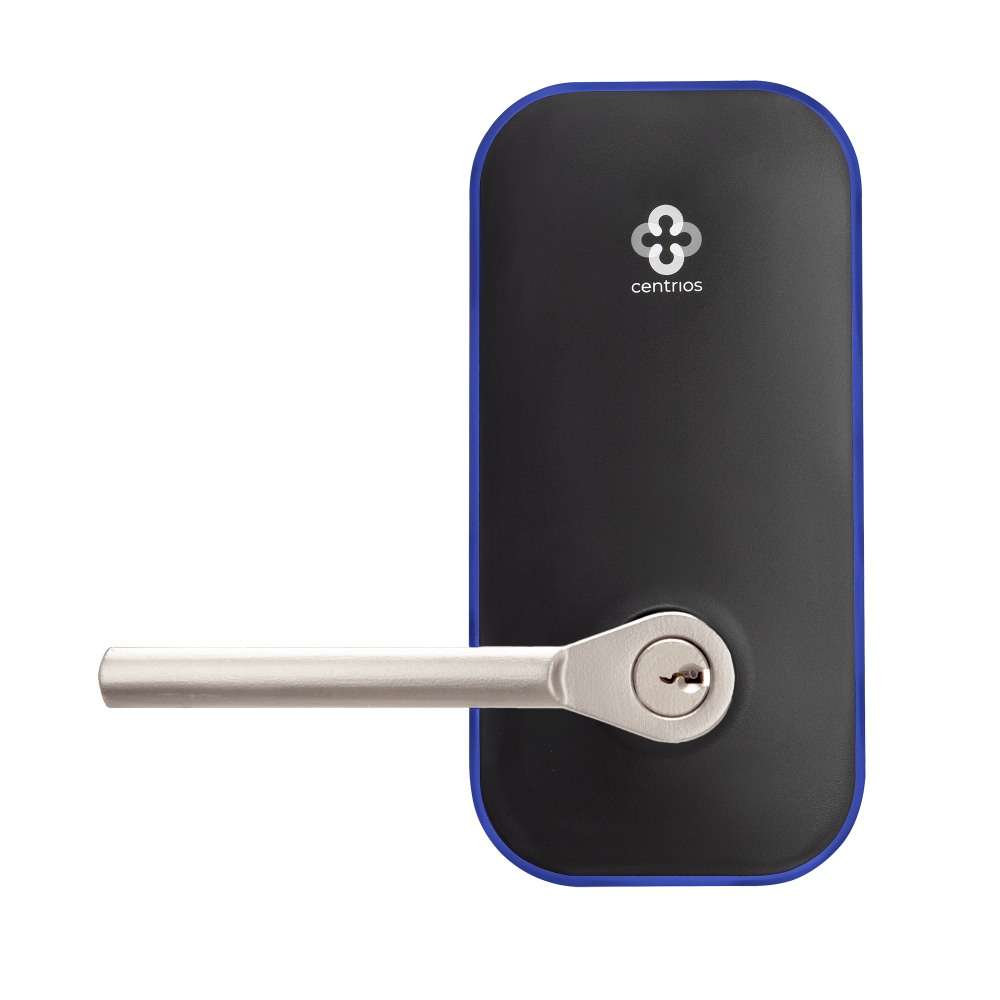

Centrios CEB100-TB-619-1803-54L Grade 1 Smart Bluetooth Cylindrical Lock No Keypad Taylor Bay Key-in Cylinder Nickel

The Centrios Smart Reader enables you unlock virtually any door with electrified hardware from perimeter openings, to garages, glass doors and gates.

  • IP-65 - Weather Resistant
  • FCC/IC
  • ADA compliant
  • 2 outputs/1 configurable relay (2amp capacity)
  • 2 inputs (door position switch & ready to exit)
  • -40º to 140º F
  • Bluetooth mobile access via the Centrios mobile
  • Two relays, one programmable from 0-30 seconds. Request to exit input (RTE). Door position switch input. Triggers auto-operator on delay.
  • 12-24 VDC. Dedicated power source recommended. Relays tested up to 2 amps.
  • Frame mount, wall mount, or J-box mount options. Simple installation; 2 screws and back plate.
US$510.00

Description:

Description:

Centrios CEB100-TB-619-1803-54L Grade 1 Smart Bluetooth Cylindrical Lock No Keypad Taylor Bay Key-in Cylinder Nickel

Design
Our cylindrical locks are low profile, sleek units that look great on any door. Designed with advanced polycarbonate our locks are scratch resistant and easy to clean.

Door compatibility
Our patented installation system means your Centrios lock automatically adjusts to doors from 1 3/8” up to 2 1/4” thickness without additional screws or kits. No additional drilling required if you have a standard 161 door prep with thru bolt holes.

Grade 1 strength
Our locks are rated ANSI/BHMA Grade 1 for strength and security. Tested to withstand hundreds of thousands of locking and unlocking cycles and forced entry attempts, Grade 1 locks provide better protection against lock bumping, lock picking, and other forms of malicious intrusion.

Durability
Our locks are independently tested and operated over 1 million times. Rated to prevent the spread of fire for 3 or more hours. In short, they work day-in, day-out no matter what.

Access methods
Mechanical key or bluetooth mobile access.

Power supply
Operates up to one year on four AA Alkaline batteries. Has 9V DC power backup.

Features & Benefits

  • ANSI/BHMA A156.2 Grade 1
  • UL 10C 3-hour fire rating
  • IP57 weather resistant to allow full exposure to both sides of the door
  • FCC/IC Certified
  • ADA Compliant
  • Deadlocking latch
  • -35 F to 140 F

Specifications:
