Folger Electric 310-1-(PK)-24D Electric Strike, Body Only

Folger Electric 310-1-(PK)-24D Electric Strike, Body Only

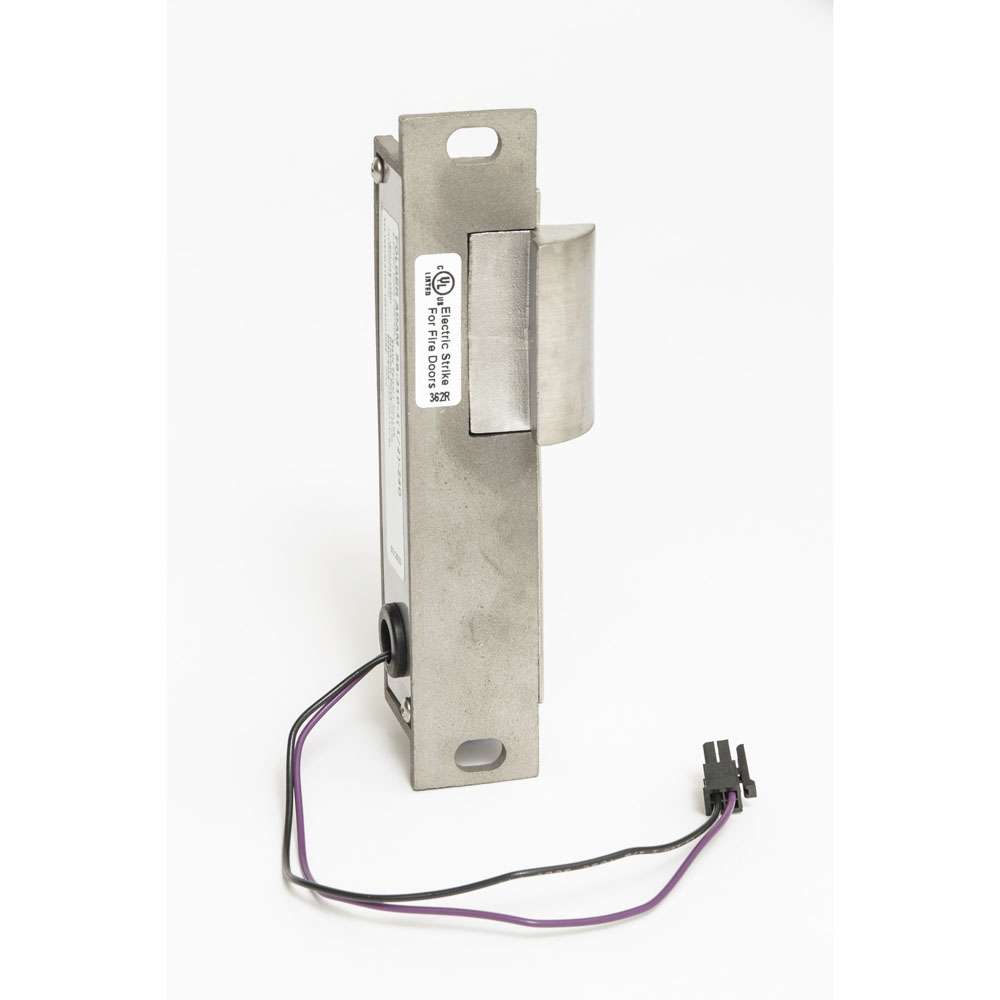

The 310 Series is a 3 hour fire-rated, industrial grade electric strike designed for extreme heavy duty applications. The all stainless steel construction of this device makes it ideal for high abuse applications that would disable other electric strikes.

• Tamper resistant, heavy-duty construction
• Constructed entirely of stainless steel for strength and corrosion resistance
• Static strength 1,500 lbs
• Dynamic strength 70 ft-lbs
• Endurance rating 1,000,000 cycles
• Horizontally adjustable keeper allows for door and frame misalignment
• 1/2" keeper depth (310-2)
• Non-handed
• Fail secure (standard)
• Plug-in connector

Application

• Adjustability : Horizontal
• Surface Mounting : Cutting required
• Frame Material : Metal|Wood
• Latchbolt Accommodation : 1/2" - 1"

Electrical

• Voltage : 12|24
• Monitoring Installation : Factory Configured
• Monitoring Options : Latchbolt and locking cam monitor with auxiliary switch

Strength & Durability

• Endurance (cycles) : 1,000,000
• Dynamic Strength (ft-lbs) : 70
• Tamper Resistant : Yes
• Fail Safe or Fail Secure : Fail Secure|Fail Safe

General Specifications

• Warranty : SecuriCare five-year, no fault, no questions asked warranty
• Lock Type : Cylindrical Lock|Mortise Lock|Mortise Lock with Deadbolt
• Fire Rating ~ Double Door : 3 Hour (Fail Secure Only)
• Fire Rating ~ Single Door : 3 Hour (Fail Secure Only)

Certifications

• ANSI/BHMA A156.31, Grade 1
• RoHS Compliant
• UL 1034 burglary-resistant listed
• UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
• UL294 Listed
