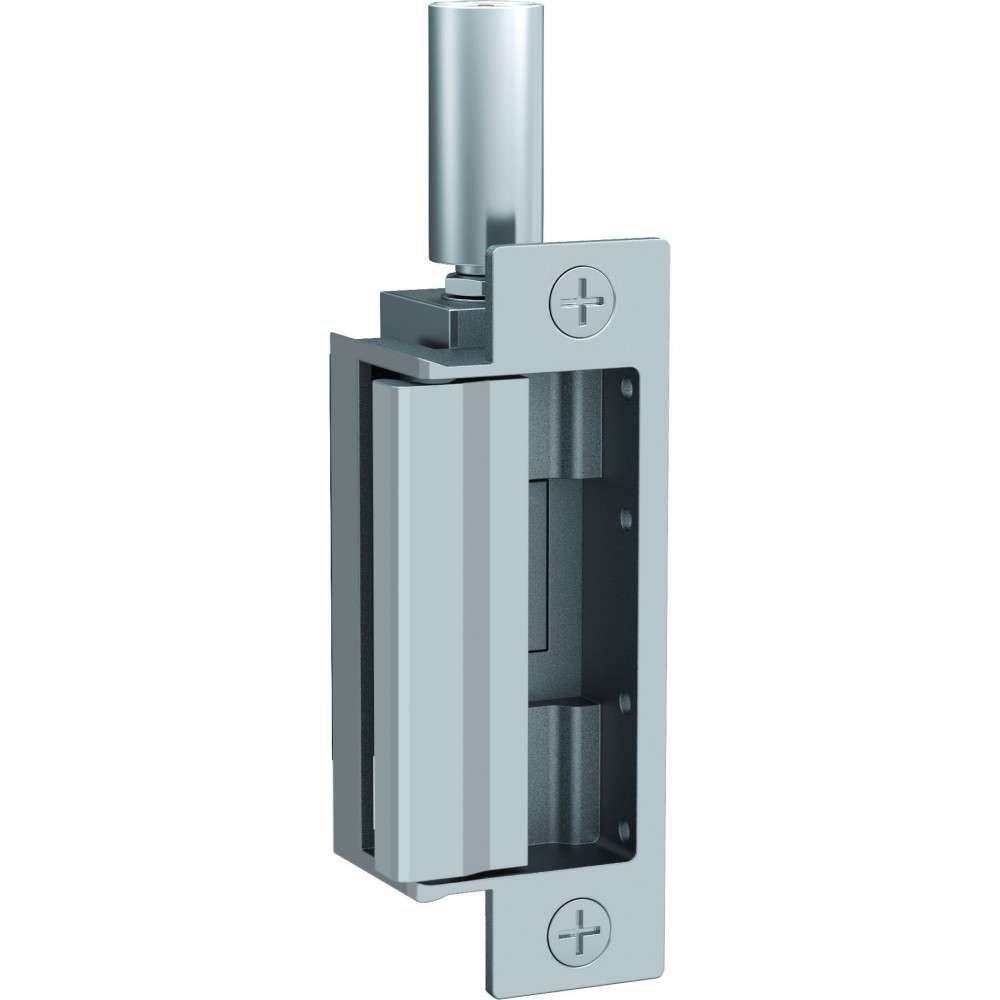

Folger Electric Electric Strike, Fail secure

Folger Electric Electric Strike, Fail secure

The all stainless steel construction of this device makes it ideal for high abuse applications. The Folger Adam 742-75 Series comes standard with a variety of brackets to accommodate all major mortise and cylindrical locks with up to a 3/4" throw latchbolts.* This is the one electric strike to choose when you are uncertain of which lockset you may encounter.

• Tamper resistant, heavy-duty construction
• Constructed entirely of stainless steel for strength and corrosion resistance
• Static strength 1,500 lbs
• Dynamic strength 70 ft-lbs
• Endurance 1,000, 000 cycles
• Horizontally adjustable keeper to allow for door and frame misalignment
• Deadlatch tabs included
• 3/4" keeper depth
• Non-handed
• Fail secure (standard)
• Plug-in connector
• Full keeper shim

Application

• Adjustability : Horizontal
• Surface Mounting : Cutting required
• Frame Material : Metal
• Shim Type : Field Adjustable
• Latchbolt Accommodation : Up to 3/4"

Electrical

• Voltage : 12/24
• Monitoring Installation : Factory Configured
• Monitoring Options : Latchbolt and locking cam monitor with auxiliary switch|NA

Strength & Durability

• Endurance (cycles) : 1,000,000
• Dynamic Strength (ft-lbs) : 70
• Tamper Resistant : Yes
• Fail Safe | Fail Secure : Fail Safe/ Fail Secure

General Specifications

• Warranty : SecuriCare five-year, no fault, no questions asked warranty
• Lock Type : Cylindrical Lock|Mortise Lock
• Fire Rating ~ Single Door : 3 Hour (Fail Secure Only)
• Fire Rating ~ Double Door : 1.5 Hour (Fail Secure On

Weights & Dimensions

• Strike Body Depth (in) : 1-15/16"
• Strike Body Height (in) : 4-7/8"

Certifications

• ANSI/BHMA A156.31, Grade 1
• CAL FIRE, 3776-1654:0501
• UL 1034 burglary-resistant listed
• UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
• UL294 Listed
