Hager 511-US26D Mortise Hospital Pivot Set

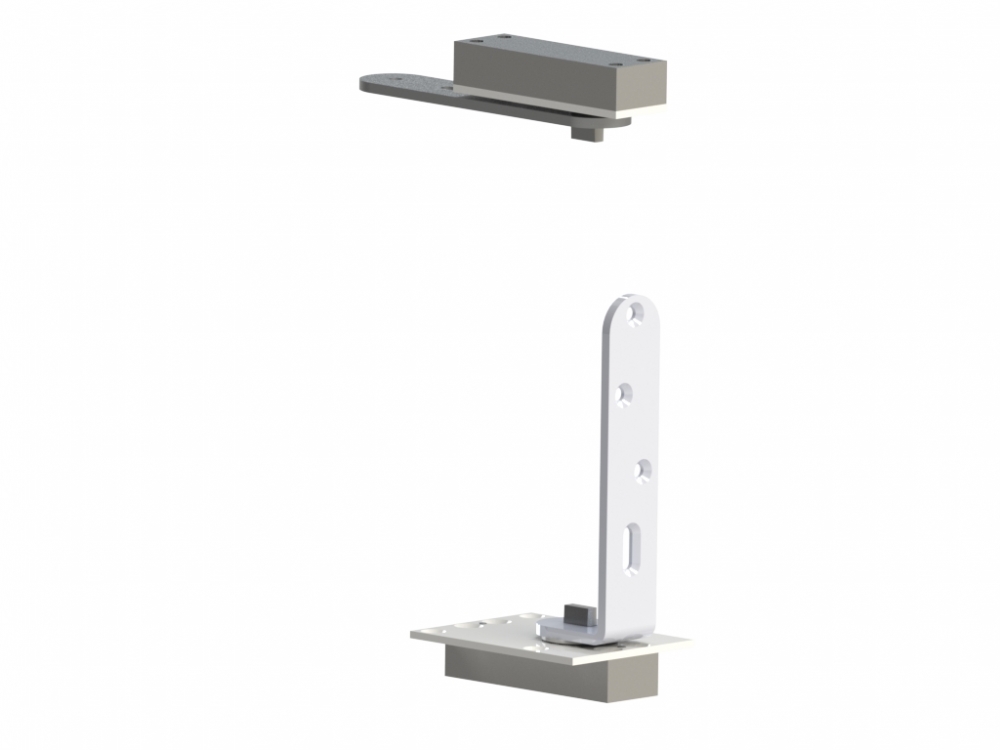

The Hager 511-US26D Mortise Hospital Pivot Set is a camtrol double acting head and floor pivots kit. Used with wood or metal doors up to 135lbs. Hager 511 Camtrol Double Acting Hospital set Includes head and floor pivots only. The Hager 511 head and floor pivots are intended for use as rescue hardware. Hager 511 head and floor pivots are intended for use on hospital and nursing home bathroom doors. They are double acting, allowing them to swing in the opposite direction in case of emergency. For Mortise Application in Masonry Floors.

Specifications include:

• Mortise Hospital Pivot Set
• Satin Chromium Plated
• Camtrol Double Acting - Hospital Set -Rescue Hardware
• Mortise Application in Masonry Floors
• Head and Floor Pivots
• ANSI A5702
• Includes head and floor pivots only - use with door release #610
• For use with square edge doors on hinge side
• Wood or metal doors up to 135 lbs
• Doors not over 3' 6" x 7' (1067 mm x 2134 mm)
• Plastic cinch anchors

• • Wood or metal frames
  • Plastic cinch anchors
