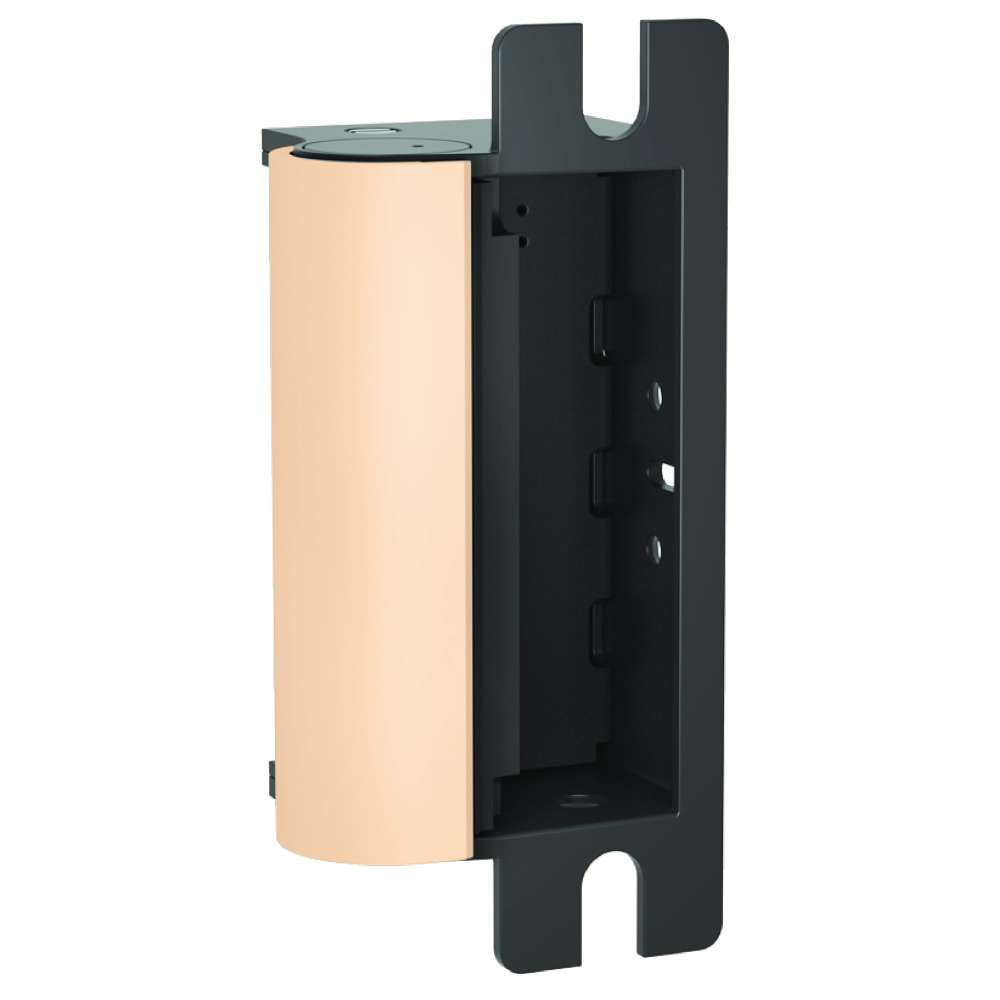

HES 1006-612 Fail Secure, Electric Strike Body

SKU # HE/1006-612

The HES 1006-612 Fail Secure, Electric Strike Body is a Fail Secure, Electric Strike Body.

Specifications include:

  • 1006 Series
  • Satin bronze
  • Stainless steel construction
  • Tamper resistant
  • Fail secure
  • Static strength 2,500 lbs. (fail secure)
  • Dynamic strength 350 ft-lbs. (fail secure)
  • Endurance 1,000,000 cycles
  • Dual voltage 12 or 24VDC continuous duty
  • Non-handed
  • Internally mounted solenoid
  • Accommodates up to 1" deadbolt
  • Plug-in connector
  • Full keeper shims for horizontal adjustment
  • Trim enhancer

Delivery: The HES 1006-612 Fail Secure, Electric Strike Body is in stock, please allow 1-2 business weeks' lead time.

G.S.A. Contract Holder
This item is available on our
GSA contract # 47QSWA19D001W
US$466.95

Description:

Description:

HES 1006-612 Fail Secure, Electric Strike Body

1006 Series Electric Strikes
With multiple faceplate options, the 1006 will fully accommodate every lock designed to work within an ANSI 4-7/8" strike plate.
The 1006 series is the strongest and most versatile electric strike available. The dual interlocking plunger design and heavy duty stainless steel construction, enables it to exceed every standard developed for electric strikes. With multiple faceplate options, the 1006 will fully accommodate every lock designed to work within an ANSI 4-7/8" strike plate. Tested to exceed 3,000 lbs. of static strength, 350 ft-lbs. of dynamic strength and factory tested to exceed 1,000,000 cycles of operation, the 1006 is in a class of its own.

Frame application

  • Metal
  • Wood

Electrical

  • .45 Amps at 12VDC* continuous duty
  • .25 Amps at 24VDC* continuous duty
  • *Note: DC must be well filtered with ripple less than 1 volt RMS.

Standard Features

  • Stainless steel construction
  • Tamper resistant
  • Static strength 2,500 lbs. (fail secure)
  • Dynamic strength 350 ft-lbs. (fail secure)
  • Endurance 1,000,000 cycles
  • Fail secure (standard)
  • Dual voltage 12 or 24VDC continuous duty
  • Non-handed
  • Internally mounted solenoid
  • Accommodates up to 1" deadbolt
  • Plug-in connector
  • Full keeper shims for horizontal adjustment
  • Trim enhancer
  • Five year limited warranty

Optional Features

  • Fail Safe
  • LBM - Latchbolt monitor
  • LBSM - Latchbolt strike monitor
  • 27 interchangeable faceplate options (monitor switches may not work with all faceplate options)
