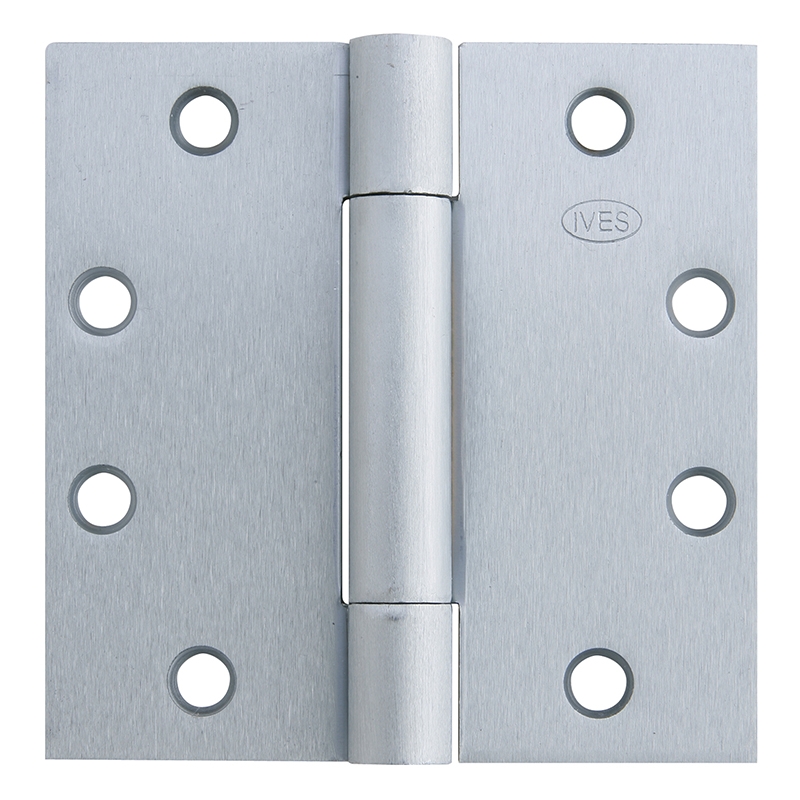

Ives-Glynn Johnson 3SP1-4.5X4.5-630 3-Knuckle Spring Hinge

The Ives-Glynn Johnson 3SP1-4.5X4.5-630 3-Knuckle Spring Hinge is a 3-Knuckle Spring Hinge in Satin stainless.

Features include:

• Satin stainless finish
• 4.5" x 4.5"
• 3 Knuckle, spring full mortise hinge
• For use with doors where self-closing is required
• Maximum door weight 120 lbs, max door width 36"
• Maximum labeled door size - 3'0" wide x 7'0" x 1 3/4" thick as set in NFPA #80
• Packed with fasteners for hollow metal and half metal / half wood applications, Pin for setting spring tension, Adjusting wrench
• 12-24 x 1/2 UFPHMS, 12 x 1 1/4 FPHWS
• Certified to ANSI/BHMA A156.1 for performance standards
• Meets ANSI/BHMA 156.7 for template hinge dimensions
• UL listed for use with fire rated doors
