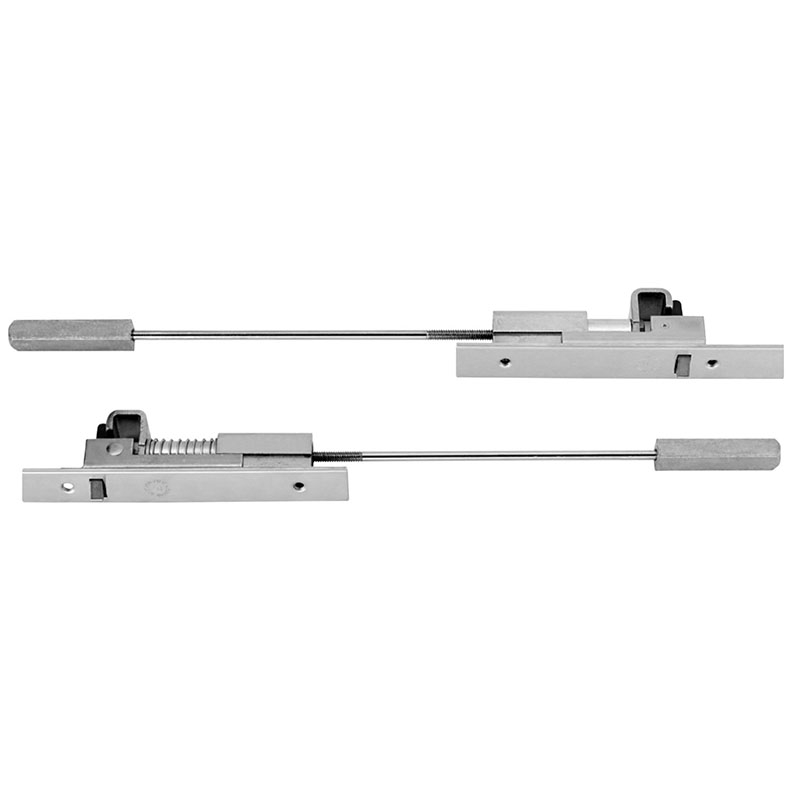

Ives-Glynn Johnson FB32-12-MD-US32D Automatic Flushbolt

The Ives-Glynn Johnson FB32-12-MD-US32D Automatic Flushbolt is a 12 inch Automatic Top Flushbolt with auxiliary fire latch for Metal Doors.

Features include:

Satin stainless steel finish over Stainless steel Substrate US32D
Top bolt with auxiliary fire latch
For use with metal doors only
Fully automatic—inactive door is latched, bolts are extended when active door closes, door is unlatched, bolts retract when active door is opened.
FB32 Model with auxiliary fire latch eliminates the bottom bolt
Low actuation forces—top bolt has no spring tension.
Non-handed.
Bolt throw is 3/4" with a 7/8" vertical adjustment.
Bolt backset is 3/4"
Standard Rod Length is 12", which is measured from the center of the flush bolt body to the bolt tip.
Body size (Width X Length X Depth) 1" x 6-3/4" x 2"
Guide size (Width X Length X Hieight X Thickness) 1" x 1-27/32" x 27/32" x 3/32"
Strike size (Width X Length X Thickness) 15/16" x 2-1/4" x 1/16"
Rub plate size (Width X Length X Thickness) 1-1/4" x 1-11/16" x 3/64"
Auxiliary fire latch size (Width X Length X Depth) 1" x 1-3/4" x 3-1/4"
Retrofit plate size (Width X Length X Thickness) 1" x 6-3/4" x 3/32"
Meets ANSI A156.3 Type 25
Fits standard ANSI A115.4 door frame preparations.
UL Listed 3 Hour fire doors 8’0" X 8’0"
Mounting
- 8-32 X 3/8" UFPHMS
- 10-12 X1-1/4" Plastic anchor
- 6-32 X 3/8 FPHMS
- 6 X 3/4 FPHSMS
- 8 X 1 FPHSMS
- 10 X 1 FPHSMS
