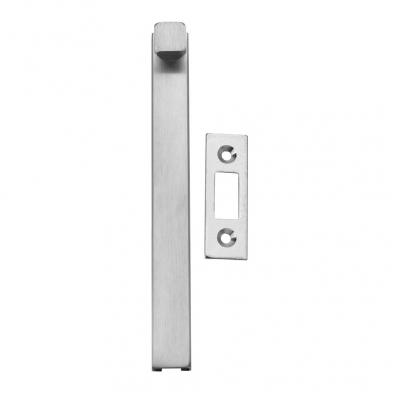

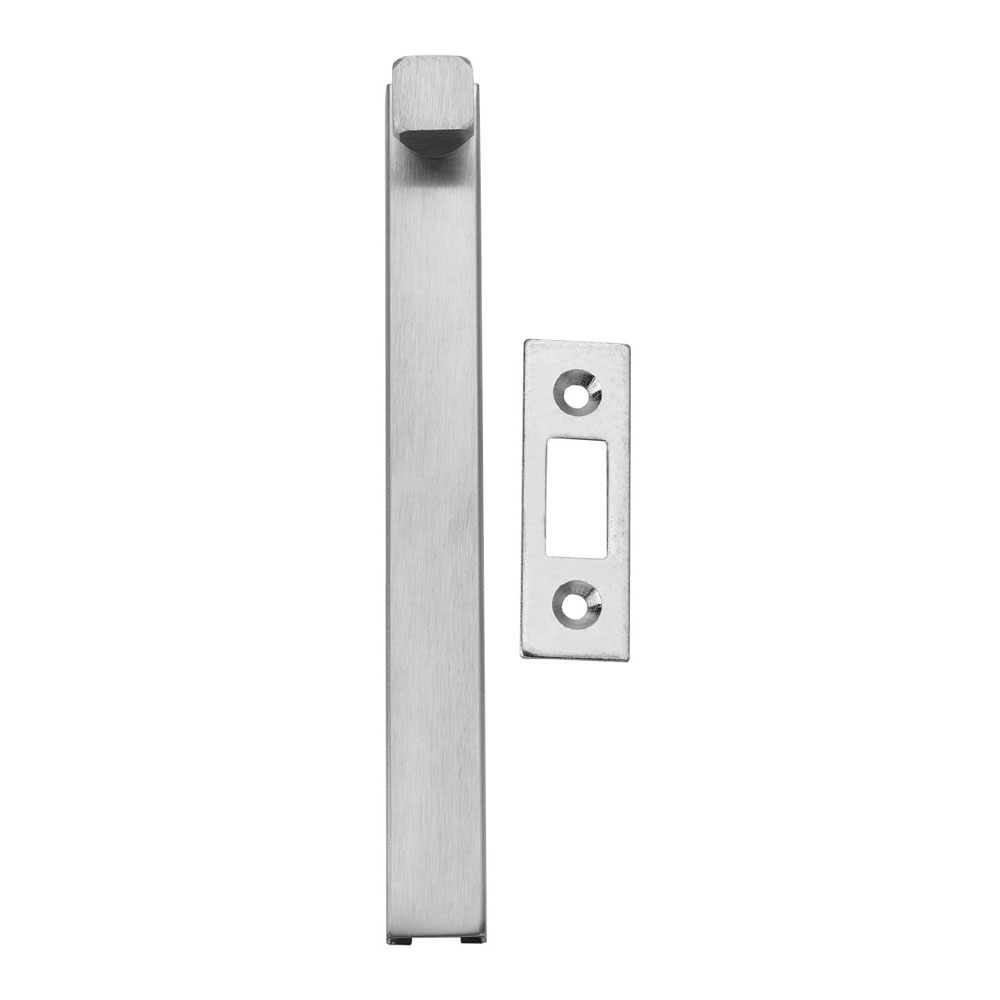

The Ives-Glynn Johnson SB1630-B-US2G 8" Steel Surface Bolt is an 8 inch Steel Surface Bolt, Bottom Strike Only.
Features include:
- Zinc Plated finish on steel
- Bottom Strike Only
- Standard surface bolt has 1" throw for maximum security
- Ideal for all types of doors
- Fully concealed mounting prevents vandalism
- Units packed with wood and machine screws to meet most field conditions
- Comes end plug and end plug stud package
- Available in locking version. Unit locks in both the up and down position. Locking bolts are furnished with 2 keys in 4 keying variations
- Meets ANSI/BHMA A156.16, L84161 and UL listed for 3 hour fire doors, up to 8'0"
- Body: 8" long x 7/8" wide x 3/4" thick
- Overall knob or lock housing projection:1-1/2"
- Bottom strike: 3" long x 1" wide x 1/8" thick
