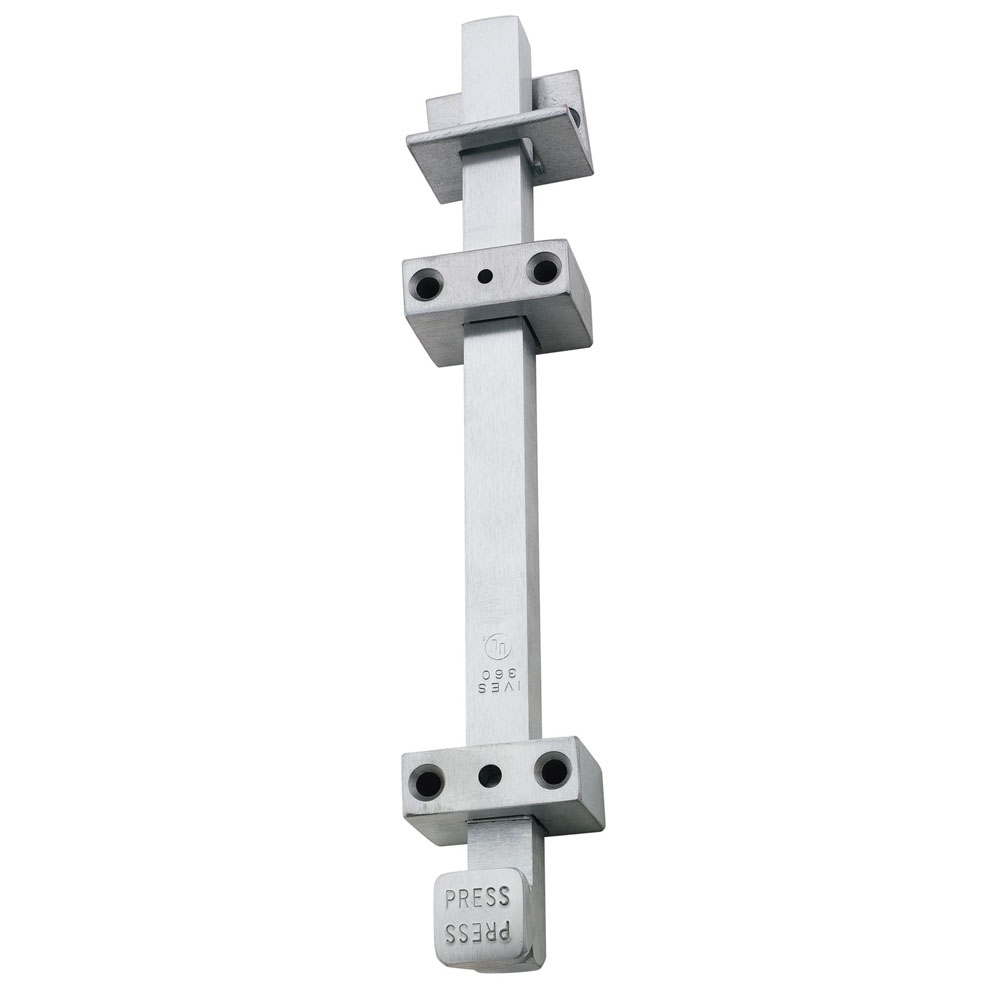

Ives-Glynn Johnson SB360-US2C-12IN Heavy Duty Surface Bolt

The Ives-Glynn Johnson SB360-US2C-12IN Heavy Duty Surface Bolt is a 12" Heavy Duty Surface Bolt.

Features include:

• Clear Zinc finish on steel
• Surface bolt has 1-1/4" throw for maximum security
• Jimmy-resistant design, bolt locks automatically when thrown, can be released only be pressing knob toward door while retracting
• Ideal for all types of doors
• Unit locks in both the up and down position
• Accepts padlock (not furnished) with maximum 3/8" diameter shackle, minimum 1-3/4" shackle opening height
• Units packed with one-way wood screws for added security - Standard wood screws also supplied
• Units packed with a universal top strike (US)
• Meets ANSI/BHMA A156.16, UL listed for 3 hour fire doors, up to 10'0";
• Miami Dade County NOA listed;  Florida Building Commision listed; FEMA 361 and 320 listed
• Bar: 3/4" wide x 3/4" thick
• Overall width: 2-1/32"
• Overall projection: 2-1/16"
• Top Strike: 1-1/2" wide x 1-1/2" long x 3/16" thick
