Ives-Glynn Johnson VR910-NL-US32D Nightlatch Trim

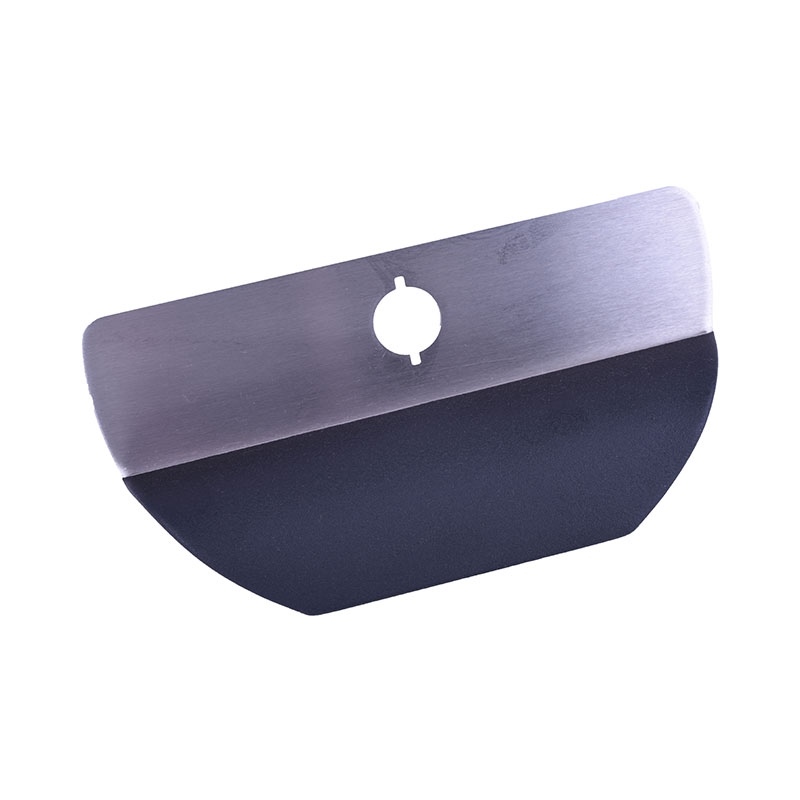

The Ives-Glynn Johnson VR910-NL-US32D Nightlatch Trim is a Nightlatch Trim with black grip in Stainless Steel US32D.

Features include:

• For use with Von Duprin 98/99 Series rim and vertical rod exit device
• Thru-bolts direct to the exit device
• Non-handed, horizontal keyway
• 11 Gauge (0.120" thick)
• For door thickness 1-3/4-2-1/4".    10-24 X 1" and 10-24 X 1-1/2" mounting screw size
• Width: 5-1/4"    Height: 11"   Thru-bolt pattern (4 holes): 1-3/8" wide x 7" high   Clearance grip to door: 1-1/2"   Projection: 1-7/8".
• 1-5/8" cylinder hole cut-out,centered on horizontal center line and 1/4" offset from vertical center line towards the lock side of the door
• Designed for use with 1-1/4" cylinders. Other cylinders may require additional blocking rings, not supplied
• Protective cylinder collar spins to reduce damage from pipe wrench or other tool.
• Comes with cylinder cup
