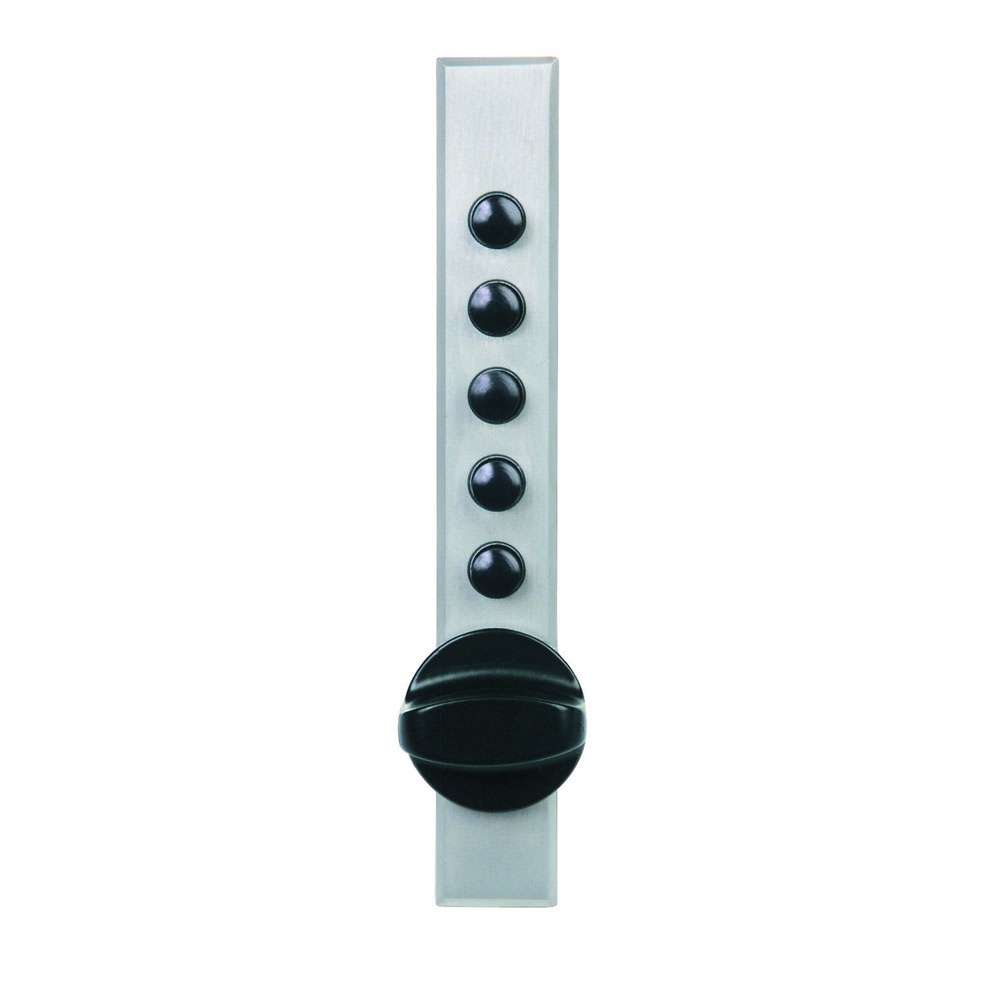

Kaba Access 9622C11-26D-41 Cabinet Lock, Wood Application

SKU # SI/9622C11-26D

The Kaba Access 9622C11-26D-41 Cabinet Lock, Wood Application

  • Construction: All metal cast face plate; force-resistant, protected exterior knob
  • Numeric Keypad: Vandal resistant, solid metal pushbuttons
  • Handing: Non-handed
  • Bolt:
    • End-throw/cross-throw deadbolt (must be manually relocked)
    • End-throw/cross-throw spring latch (with automatic relock)
  • Door Thickness:
    • Wood doors: ⅝" (16 mm) to ⅞" (22 mm)
    • Sheet metal applications: 14 to 20 gauge 1⁄3", 1⁄16", 1⁄4"
  • Installation:
    • Horizontal or vertical.
    • Two-step mortise installation using router or 5½" (140 mm) x 1" (25 mm) slot with trim plate (for wood applications).
    • Punched slot or series of 7⁄16" (11 mm) drilled holes (for metal applications).
  • Warranty: 1-year warranty
G.S.A. Contract Holder
This item is available on our
GSA contract # 47QSWA19D001W
US$78.65
Comments or instructions

Description:

Description:

Kaba Access 9622C11-26D-41 Cabinet Lock, Wood Application

The Simplex 9622C11-26D-41 series of Simplex Cabinet Lock eliminate problems and costs associated with issuing, controlling and collecting keys and cards. Unican Kaba Ilco Simplex is the leader in top of the line security solutions that presents industrial strength combination lock with high quality security products for over 100 years now. For a security lock, the highly weather resistant Simplex 9600 Series earns an impressive Grade 1 rating from ANSI (American National Standards Institute) - this rating is the highest one they give out for quality. The Simplex 9600 grants entry upon successful validation of a 1 to 5 digit code that you pre-program into the lock. Being vandal protected hardware, the Simplex series of PIN based locks find widespread acceptance in many locations such as medicine chests, liquor cabinets, gun boxes, courier pick-up boxes, home entertainment units, cleaning supply cabinets, tool chests, private files, audio-visual cabinets and petty cash drawers. Simplex 9600 Series mechanical pushbutton lock uses to same combination system as our other pushbutton access controls and are specifically designed for cabinet doors, desk drawers and similar applications.

Features:

  • Satin Chrome Finish
  • 100% push-button lock access
  • All metal cast face plate construction; force-resistant with protected exterior knob
  • Single access code feature makes 'one easy-to-manage code' for all users
  • End-throw spring latch with automatic relock
  • Low maintenance with no batteries or wires eliminates the material and labor expense of battery replacements
  • Non handed operation
  • Very Economical - a cost effective access control solution
  • Its lock is easily programmed via keypad without removing the lock from the door - Awesome
  • Wood door thickness: 5/8" (16 mm) to 7/8" (22 mm)
  • Vandal resistant hardware with solid metal pushbuttons
  • Spring Loaded Latch Bolt latch
  • For wood applications
  • Clutch ball bearing knob style
  • Bolt throw: End throw
  • It is available without trim plate
  • 1 year manufacturer warranty
