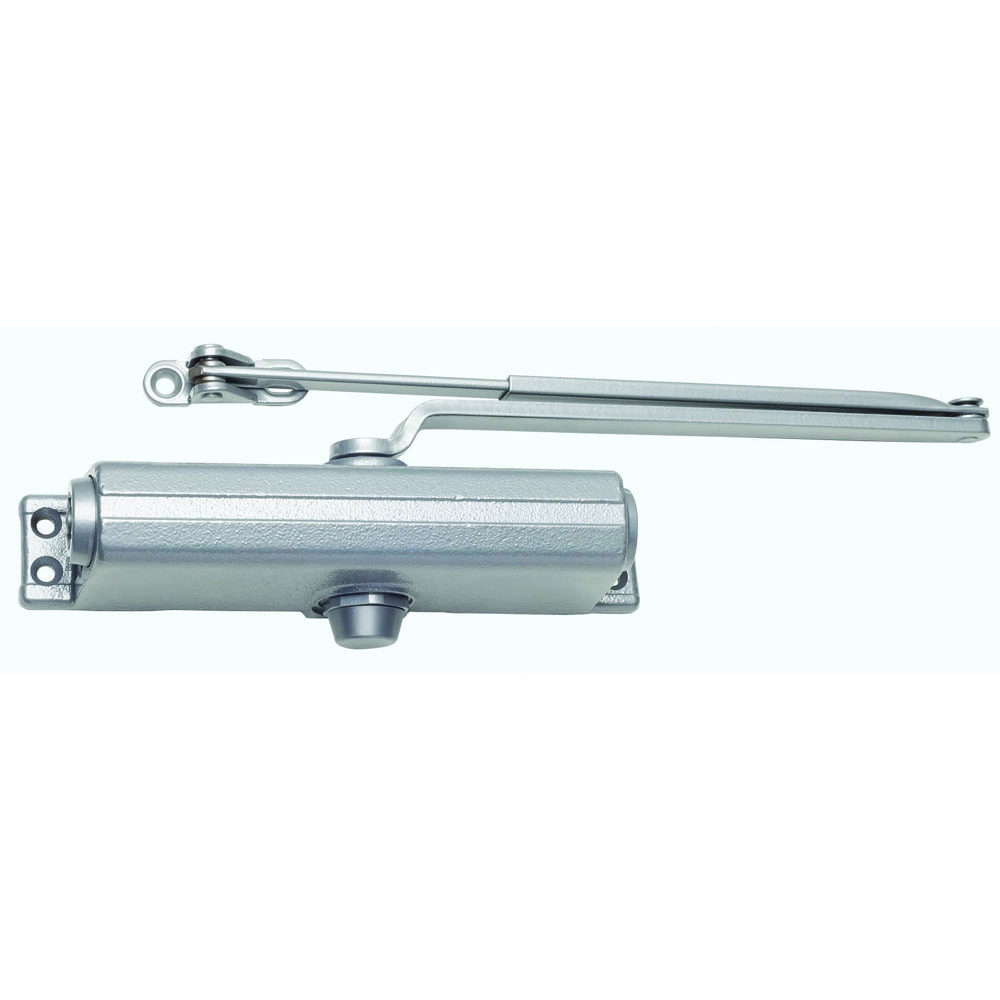

LCN 1261-REG-AL Regular Arm Door Closer, Aluminum

SKU # LC/1261-REG-689

Read Review(s) | Log in to Review

The LCN 1261-REG-AL Regular Arm Door Closer, Aluminum is an Aluminum Regular Arm Door Closer.

Features inlcude:

  • Regular Arm Door Closer for the LCN 1260 Series
  • Aluminum Finish
  • Heavy-duty door closer with a cast-iron cylinder
  • Forged steel arm
  • All-weather fluid Double heat-treated pinion
  • Nonhanded
  • Mounted with parallel arm on either right or left swing door
  • Nonsized cylinder is adjustable for interior doors 4 ft. 6” and exterior doors to 3 ft. 6”
  • Does not include cover
  • Includes self-tapping/self-reaming screws, and peel-and-stick templates help ensure accurate installation

Delivery: The LCN 1261-REG-AL Regular Arm Door Closer, Aluminum is in stock, please allow 1-2 business weeks' lead time.

G.S.A. Contract Holder
This item is available on our
GSA contract # 47QSWA19D001W
US$253.26

Description:

Description:

LCN 1261-REG-AL Regular Arm Door Closer, Aluminum

LCN 1261-Rw/PA Grade 1 Surface Door Closer, Regular Arm, PA Shoe, Push or Pull Side Tri Mount Mounting, Size 1 to 5, No Cover, All Weather Fluid
The 1260 Series is designed for light- to medium-duty applications as a fit for the most common commercial footprint, meeting ANSI/BHMA A156.4 Grade 1 and ADA reduced opening force requirements. The 1260 Series is cUL listed and UL listed for self-closing doors without hold-open and boasts a 20-year limited warranty.

Body construction

  • Cast iron cylinder with full-complement bearing
  • 1-3/8 ” diameter piston
  • Heat-treated steel pinion journal

Quality and Durability

  • All-weather fluid
  • Forged steel arm
  • 20-year warranty

Installation

  • Universal non-handed
  • Standard Tri-Pack for Regular Pull Side, Top Jamb or Parallel Arm Mounting
  • Peel-n-stick template and optional Quick Fix bracket kit
  • Adjustable spring sizes 1-5

Specifications:

Specifications:

Click Above to See Full Finish Chart

Literature:

Literature:

Click Here for LCN 1000 Series Catalog

Click Here for LCN Automatic Operator Templates
