Zoom SALE

LCN 4110-18 Mounting Plate DKBRZ

SKU # LC/4110-18-695



Read Review(s) | Log in to Review

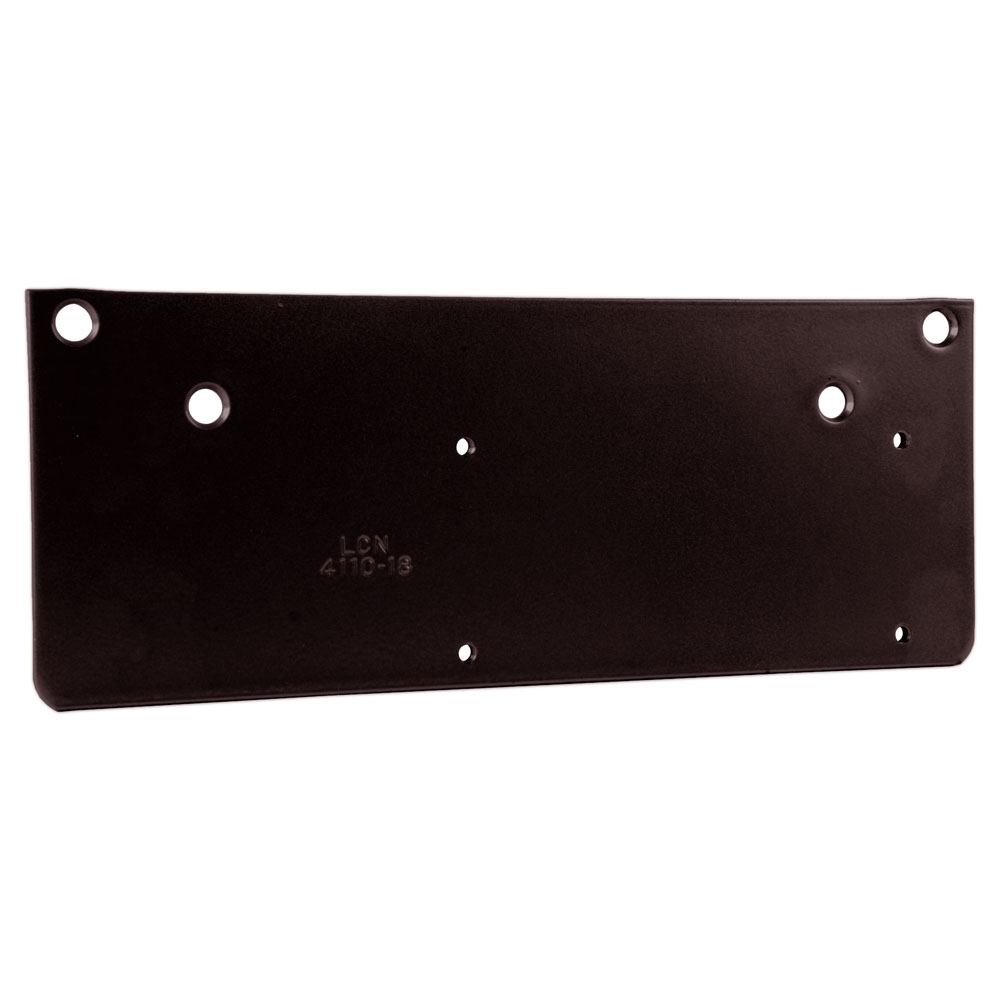

LCN 4110-18-DKBRZ Drop Plate


The LCN 4110-18-DKBRZ Drop Plate is a Dark Bronze Drop Plate for the 4100 Series which includes LCN’s best performing heavy duty closer and is designed specifically for institutional and other rugged high traffic applications.


Features include:

  • Drop Plate
  • Required for push side mount where top rail is less than 5-1/8˝ (130 mm), measured from the stop
  • Requires minimum 2˝ (51 mm) minimum top rail
  • Dark Bronze Finish

Delivery: The LCN 4110-18-DKBRZ Drop Plate is In Stock, please allow 1-2 business weeks' lead time.

G.S.A. Contract Holder
This item is available on our
GSA contract # 47QSWA19D001W
US$55.26
Comments or instructions

Description:

Description:

LCN 4110-18-DKBRZ Drop Plate

The 4110 Series is a cast iron closer that features an extra duty forged steel standard arm. The fast and accurate installation is also a feature that always impresses as well as the all weather fluid.

  • Standard 4110 series closer is shipped with extra duty arm, standard plastic cover, 4110-201 fifth screw spacer and self reaming and tapping screws
  • Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”
  • Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”
  • Closer mounts parallel arm, specify right or left swinging door
  • 4111 cylinder meets ADA requirements
  • Standard or optional custom powder coat finish
  • Optional plated finish on metal cover, arm and fasteners
  • Optional SRI primer for installations in corrosive conditions is available with powder coat only
  • The 4110 Series is UL and cUL listed for self-closing doors without holdopen
  • Tested and certified under ANSI Standard A156.4, grade one
