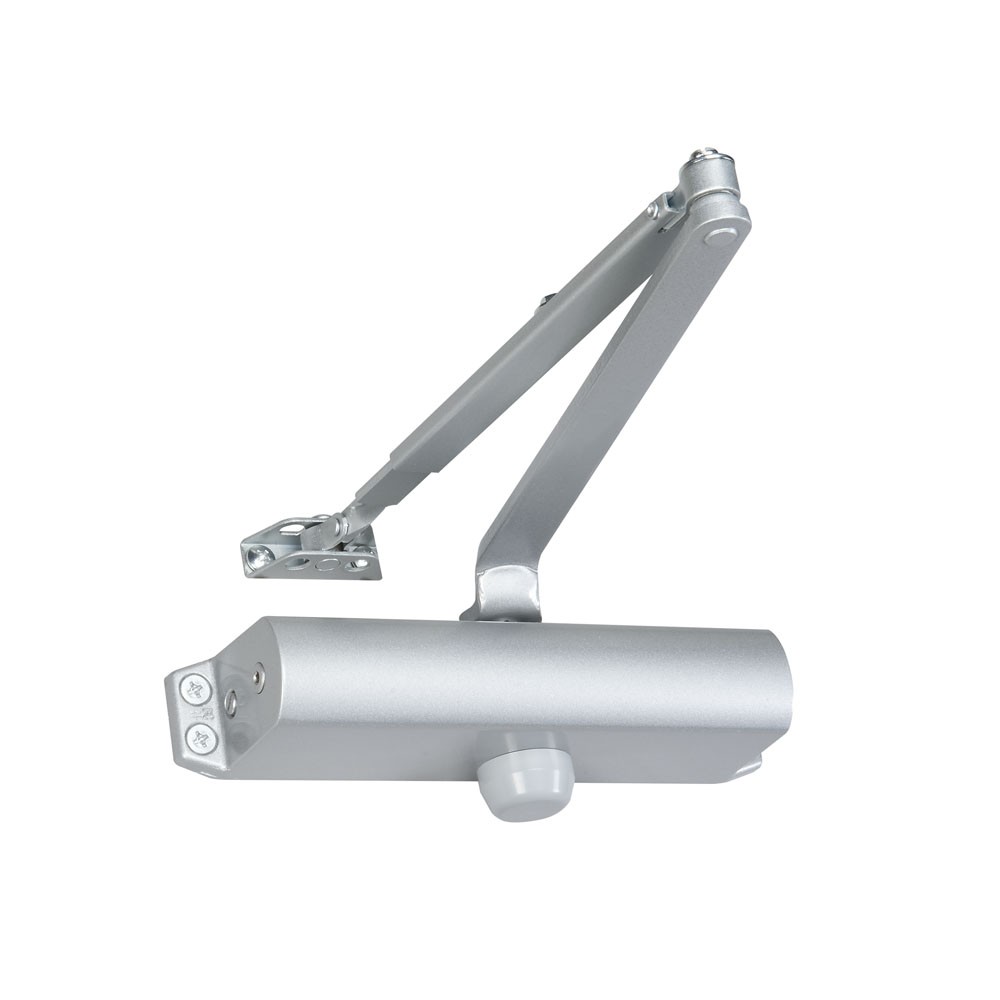

Norton 1600 Series Door Closers

SKU # NT1600

The Norton 1600 Series Door Closers offer proven quality, performance and reliability unmatched by the competition. A staple in the industry, these ANSI/BHMA Grade 1closers are designed for exterior or interior doors. A full complement of regular and heavy-duty arms, brackets and options make the 1600 Series closers ideal for virtually any medium traffic, commercial application.

The 1600 Series Door Closers are designed to fit almost any application and are the choice of engineers worldwide. Ideal for use with aluminum storefront doors and frames, these closers have a history of proven quality and tradition.

Benefits

  • High strength aluminum alloy closer body provides for long life
  • Independent latch, sweep and backcheck intensity valves to ensure positive control
  • Broad variety of arms and applications for any environment
  • Quick adjust slide arm for easy installation and adjustment
  • Non-handed for installation on right- or left- hand swing door
  • Exceeds 25 million cycles (independently verified) for long life and fewer replacements
  • 15-year limited warranty
  • Longer life results in fewer replacements and less material used
  • Covered by Norton End-of-Life Recycling Program

G.S.A. Contract Holder
This item is available on our
GSA contract # 47QSWA19D001W
Pricing varies based on options selected below.
US$111.68

Description:

Description:

1601 Series
Closers for interior and exterior doors shall be full rack-and-pinion type with cast aluminum alloy shell. Closers shall be surface mounted and shall project no more that 2-7/8" from the surface of the door. Closers shall be non-handed to permit installation on doors of either hand. Closer fluid shall contain lubricity and anti-oxidation agents. Closer fluid shall maintain stable viscosity to allow door closer to perform in temperatures ranging from extremely high to as low as -40°F. Closers shall have multi-size spring power adjustment to permit setting of spring from (1 through 4) or (3 through 6). Closers shall have two non-critical valves, hex key adjusted, to independently regulate sweep and latch speed. Closers shall have adjustable backcheck cushioning controlled by a hex key adjusted valve. [Closers shall have adjustable delayed-action closing controlled by a hex key adjustable valve.] [Closer body shall be enclosed in/concealed with a full molded cover.] [Closers shall be highly corrosion resistant and shall have all external body components of aluminum, zinc alloy or stainless steel material and all stainless steel fasteners.] Regular arm and top jamb closers shall have a non-hold open shoe permitting 15% ( +/- 7-1/2% ) power adjustment.

1600BC Series
Closers for interior and exterior doors shall be full rack-and-pinion type with cast aluminum alloy shell. Closers shall be surface mounted and shall project no more that 2-7/8" from the surface of the door. Closers shall be non-handed to permit installation of doors of either hand. Closer fluid shall contain lubricity and anti-oxidation agents. Closer fluid shall maintain stable viscosity to allow the door closer to perform in temperatures ranging from extremely high to as low as -40°F. Closers shall be sized for each door. Closers shall have two non-critical valves, hex key adjusted, to independently regulate sweep and latch speed. [Closers shall have adjustable backcheck cushioning controlled by a hex key adjusted valve.] [Closers shall have adjustable delayed action closing controlled by a hex key adjusted valve.] Regular arm and top jamb closers shall have a non-hold open shoe permitting 15% (+/-7-1/2%) power adjustment.

Specifications:

Specifications:

  • 1600BC: Sized springs 3 or 4
  • 1601: Adjustable spring sizes 3-6
  • Exceeds 12 million cycles (witnessed and verified by UL)
  • Rack and pinion design
  • Cast aluminum body
  • 2-7/8" (73mm) projection
  • 1-3/8" (35mm) diameter piston
  • 5/8" (16mm) diameter pinion journals
  • Standard, separate and independent, latch, sweep and backcheck intensity valves
  • Tri-Style® packaging (regular arm, top jamb and parallel arm mounting)
  • All standard arm applications allow doors to swing 180°, conditions permitting
  • Staked valves
