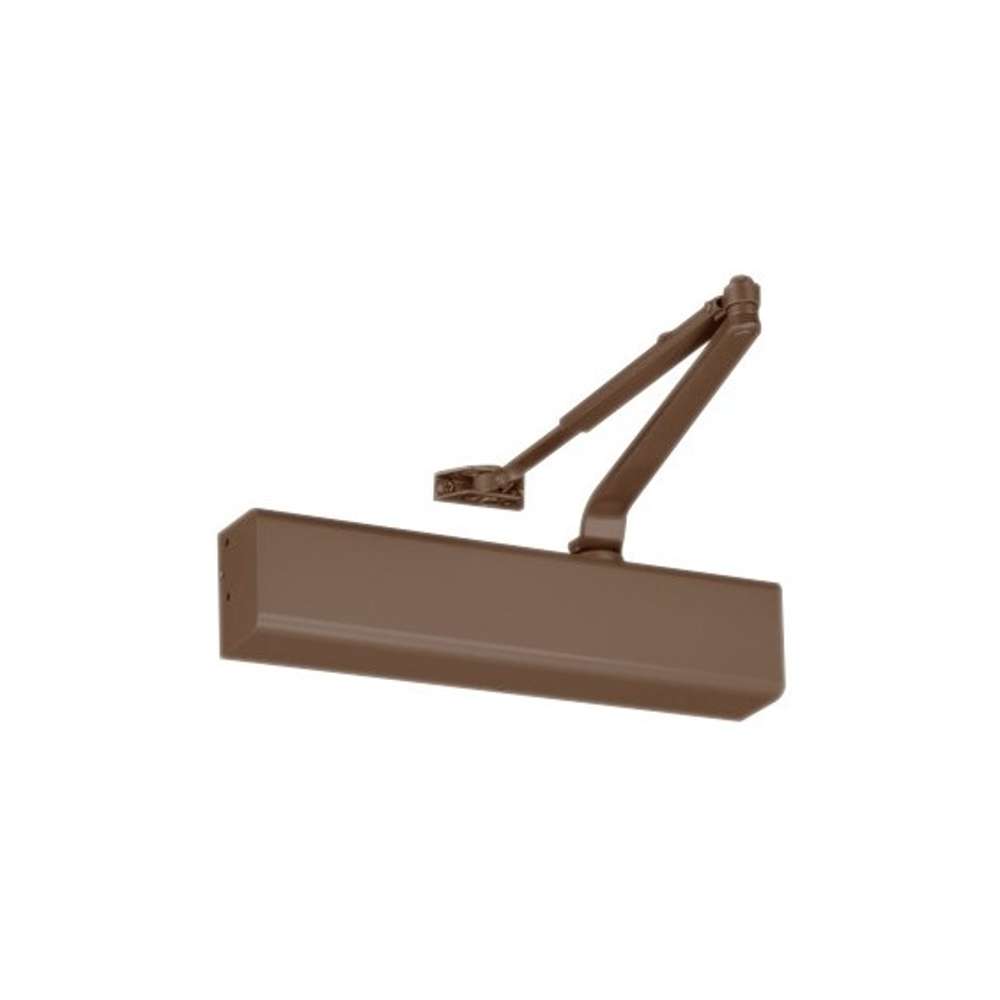

Norton 8501-691 Tri-Packed Door Closer

SKU # NT/8501-691

Norton 8501-691 Tri-Packed Door Closer

The Norton 8501-691 Tri-Packed Door Closer is a Dull Bronze, Tri-Packed Door Closer. The 8000 Series Door Closers offer the ideal combination of appearance, reliability and durability in today's market.

Features include:

  • Dull Bronze
  • Tri-Style® packaging; tri-packed for regular, top jamb or parallel arm mounting
  • Exceeds 15 million cycles (witnessed and verified by UL)
  • Adjustable spring sizes 1 through 6
  • Non-handed
  • Staked valves
  • Cast aluminum body
  • Rack and pinion design
  • 1-1/4" (32mm) diameter piston
  • 5/8" (16mm) diameter pinion journals
  • 2-1/8" (54mm) projection (standard covers)
  • All standard arm applications (with slim, full or metal covers) allow doors to swing 180 degrees, conditions permitting
  • Full size template
  • Full Cover
  • Slide Tracks: push or pull side mounting
  • ANSI/BHMA A156.4, Grade 1 certified
  • UL / cUL listed for use on fire rated doors
  • UL10C listed for positive pressure fire test
  • 8301 door closers are designed to comply with requirements for the Americans with Disabilities Act (A.D.A) and ANSI standard A117.1
  • This product is manufactured in an ISO 9001 facility
G.S.A. Contract Holder
This item is available on our
GSA contract # 47QSWA19D001W
US$176.96

Description:

Description:

Norton 8501-691 Tri-Packed Door Closer

Multi-sized door closer offering a sleek, minimal design suited for moderate-to-high-traffic, architectural openings

The 8000 Series Door Closers offer the ideal combination of appearance, reliability, and durability in today’s market. With features such as staked valves, precise valve adjustment, and a complete range of arm and cover options, this closer can meet virtually any application challenge.

CERTIFICATIONS

  • ANSI/BHMA A156.4, Grade 1 certified
  • UL / cUL listed for use on fire-rated doors
  • UL10C listed for positive pressure fire test
  • Designed to comply with requirements for the Americans with Disabilities Act (ADA) and ANSI standard A117.1
  • This product is manufactured in an ISO 9001, ISO 14001 facility



  • Architectural door closer with full size plastic cover
  • Adjustable spring size 1 through 6 with backcheck
  • Tri-Style® packaging standard, regular arm, top jamb and parallel arm mounting
  • Standard, separate and independent, latch-speed, sweep-speed and backcheck intensity valves
  • Mounting holes are spaced 3/4” vertically x 12" horizontally with 2-1/8” projection (standard covers)
  • Cast aluminum body
  • Rack-and-pinion design
Style Architectural Door closer
Grade Medium duty
Door Handing Non-handed
Door Width Maximum 48" interior and exterior doors
Opening Degrees 180 degrees - condition permitting
Projection 2-1/8"
