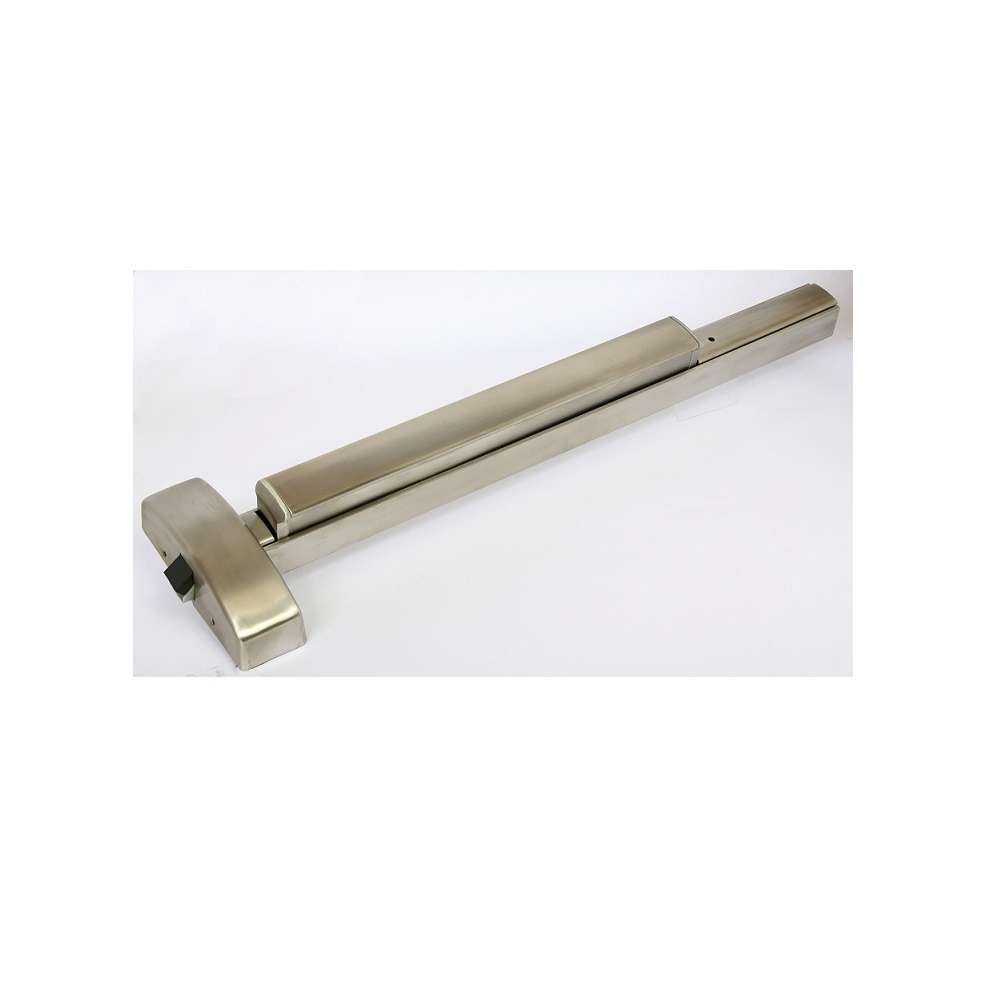

Precision 3R02101LHRB630 Rim Exit Device

Precision 3R02101LHRB630 Rim Exit Device

No other exit device offers the level of functionality and dependability as this Grade 1, heavy-duty exit device. Built with fewer components and in various door configurations, the APEX 2000 provides smoother operation with minimal need for maintenance. The APEX 2000's durable construction allows it to withstand high traffic and high use on a regular basis, making it particularly attractive for healthcare and education buildings. These combined benefits give it a longer life span and a lower overall cost of ownership.

Precision Products Offer the Highest in Safety, Security, and Simplicity.
Our panic and exit hardware devices are efficiently engineered using the most rugged hardware components. This means they are not only durable but require minimal maintenance. We offer affordable options in many different styles and finishes for all types of applications. PRECISION products come with many innovative features like an install-friendly, durable design, delayed egress, low current electronic latch retraction, and antimicrobial UltraShield.

Thanks to its efficient engineering and durable hardware, the APEX 2000 represents the ultimate in safety, security, and simplicity.

Features and Benefits:

Doors - For all types of single and double doors with a mullion. Available for 1-3/4" to 2-1/4" thick, up to 3' 0" wide open opening. For thicker doors, consult factory. Furnished standard for 1-3/4" thick, 3' 0" wide opening.

Device - Covers ANSI A115.2 (Type 161), A115.18 cylinder lock, and A115.1 (Type 86) Mortise Lock preparation.

Base Material - The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler, and End Cap are furnished with heavy wrought Brass, Bronze or Stainless Steel, 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components. Chassis - Investment Cast Steel, Zinc Dichromated.

Finish - Satin Stainless Steel (630).

Latchbolt - Stainless Steel, Deadlocking, 3/4" throw.

Strikes - No. S300, Investment Cast Stainless Steel, Black Powder Coated furnished standard.

Touchbar Height - 39-15/16" from floor standard. Maybe varied as the situation dictates.

Handing - Left Hand Reversible.

UL Listed - Panic and Fire Exit Hardware.

Hardware - Conforms to UL10C and UBC 7-2.

ANSI/BHMA - Devices are BHMA certified for ANSI 156.3, Grade 1.
