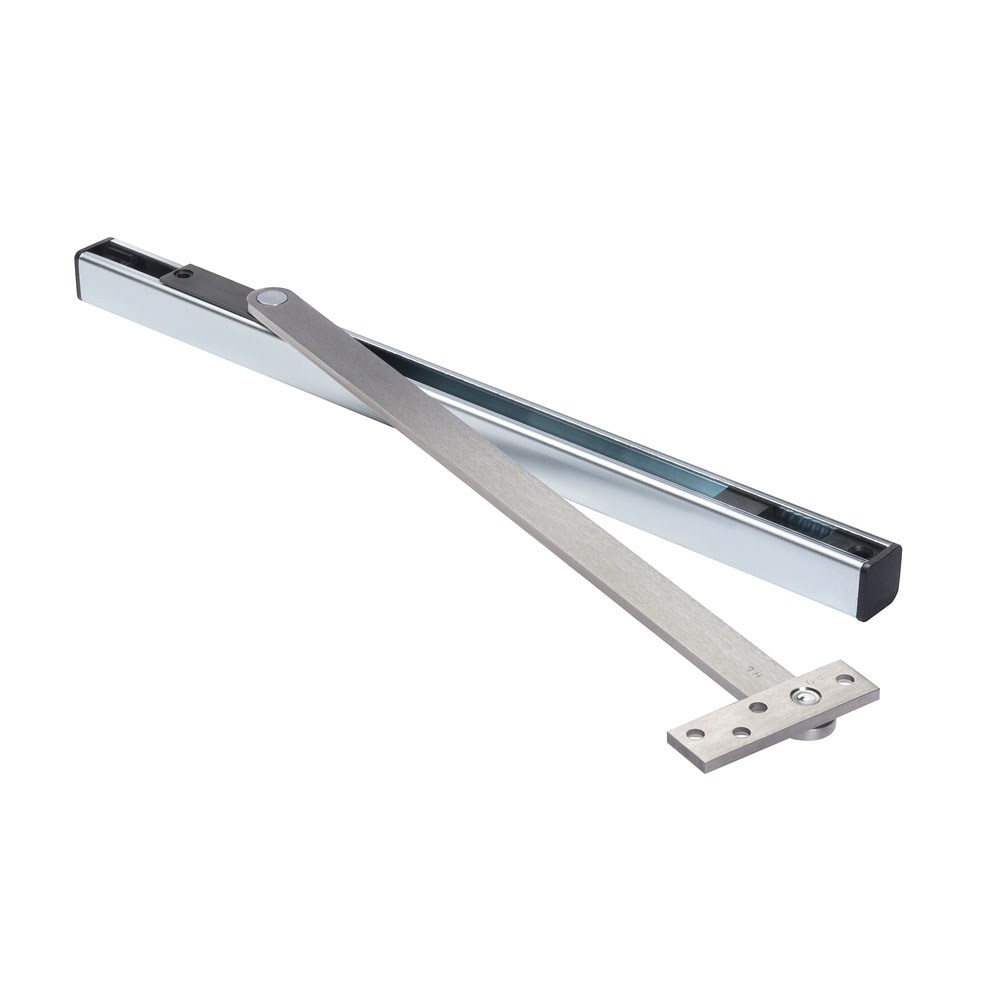

The Rixson 1-336-630 Concealed Heavy Duty Stop is a Concealed Heavy Duty Stop. Checkmate Overhead Stops and Holders are used to extend the life of the door, frame, and any door closing devices. They may be necessary if there are strong winds, high traffic or abuse. The Rixson 1-336 Series with concealed mount overhead stops and holders are used to protect door assemblies. They cut down the wear and tear of frequency, closing mechanisms, wind gusts, abuse and vadalism. By limiting the door travel, they can add years to the life of the door, frame, and hanging means.
Features include:
- Concealed Heavy Duty Stop
- Satin Stainless Steal
- Heavy-duty
- Interior or exterior doors.
- Doors may be single or double acting.
- Non-handed.
- Slide track design.
- Recommend for high traffic, heavy abuse installations.
- Heavy shock absorber spring provides 5-7° compression before dead stop.
- Surface on/off knob on hold open models.
- Stop - door deadstops at a particular degree of opening.
- Complete screw packet for installation in wood and machine screws for door and frame.
- Durable slider cam and shock block.
- 110° maximum opening.
- 1-3/4" minimum door thickness.
- 1-3/16" square channel
