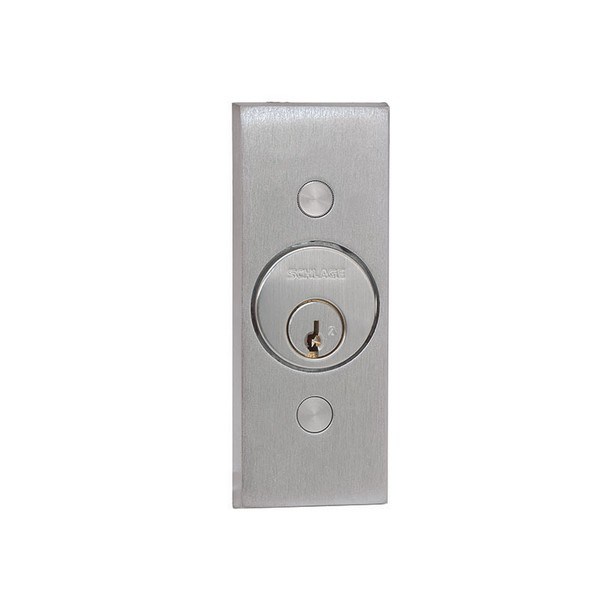

Schlage Electronics 653-0405-L2 653 Keyswitch
The Schlage Electronics 653-0405-L2 653 Keyswitch is a sophisticated and versatile component designed for secure access control in various environments. Here are the key features that make this keyswitch an excellent choice for your security needs:
Key Features:
-
SPDT Configuration: The 653-0405-L2 features a Single Pole Double Throw (SPDT) switch, which supports both clockwise and counterclockwise operations. This design offers flexibility and ease of integration into different security systems.
-
Maintained/Momentary Action: The keyswitch can be configured for either maintained or momentary action. This flexibility allows it to be tailored to specific access control requirements, whether you need a temporary or continuous switch action.
-
Dual LED Indicators: Equipped with red and green LED indicators, the 653-0405-L2 provides clear visual feedback on the status of the keyswitch. This feature enhances usability by allowing users to easily determine the operational state at a glance.
-
Durable Construction: Built with a heavy-duty plate and available with a weather-resistant cover, this keyswitch is designed to withstand harsh environmental conditions. It is suitable for both indoor and outdoor installations, ensuring long-term durability and reliability.
-
Magnetic Spring Design: The innovative magnetic spring design simplifies the installation process by allowing quick configuration of the key turn direction and action type. This feature reduces installation time and increases flexibility.
-
Architectural Finishes: The 653-0405-L2 comes in a standard satin stainless steel finish, with additional architectural finishes available. This variety ensures that the keyswitch can blend seamlessly with different door and building aesthetics.
-
Compatibility: This keyswitch is compatible with standard mortise cylinders, simplifying the integration into existing door hardware setups. It does not require a blocking ring, making it easier to install.
-
Contact Rating: With a contact rating of 500mA @ 30 VDC, the keyswitch is suitable for a variety of low-voltage applications within access control systems.
The Schlage 653-0405-L2 653 Keyswitch is an ideal choice for commercial and industrial applications where reliable and configurable access control is essential. Its combination of robust construction, versatile functionality, and clear visual indicators make it a valuable component in enhancing security and access management.
