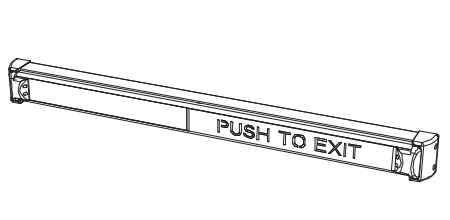

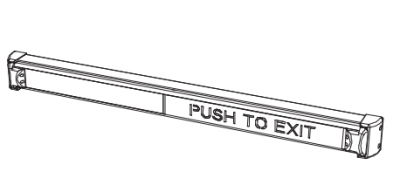

Schlage Electronics 692-36-628RDR Touch Bar REX Device

Schlage Electronics 692-36-628RDR Touch Bar Request-to-Exit (REX) Device

The Schlage Electronics 692-36-628RDR Touch Bar Request-to-Exit (REX) Device is designed for secure and efficient egress in various commercial settings. Here are its key features:

1. Infrared Detection: The device utilizes a patent-pending infrared detection system that releases the locking mechanism when the light beam is broken. This ensures rapid and secure exit control, ideal for high-traffic areas.

2. Non-Latching Design: The 692 Series Touch Bar is a non-latching releasing device that deactivates the relay when either of the two photo beams is interrupted. This provides a one-motion egress at doors equipped with electromagnetic or electronic locks.

3. Durable Construction: Built with a heavy-duty aluminum extrusion and cast metal end caps, the device ensures maximum durability and long-lasting performance. Its low profile design allows for ample clearance through the door, making it suitable for high-traffic environments.

4. Easy Installation and Maintenance: The device includes quick installation brackets and a universal mounting system, simplifying the setup process. With no moving parts, the 692-36-628RDR requires minimal maintenance, reducing the risk of wear and tear.

5. Aesthetic Finish: It features a satin anodized aluminum finish, blending seamlessly with various door designs.

6. Specifications: Designed for 36" doors, it is equipped with a double pole output and includes a 24-inch pre-connected cable for easier installation

Downloadable Resources:

• Allegion Electronic Access Catalog

• Schlage 692 Data Sheet

• Schlage 692 Installation Sheet
