Schlage Electronics 788-18 Flexible Armored Door Cord

Schlage Electronics 788-18 Flexible Armored Door Cord

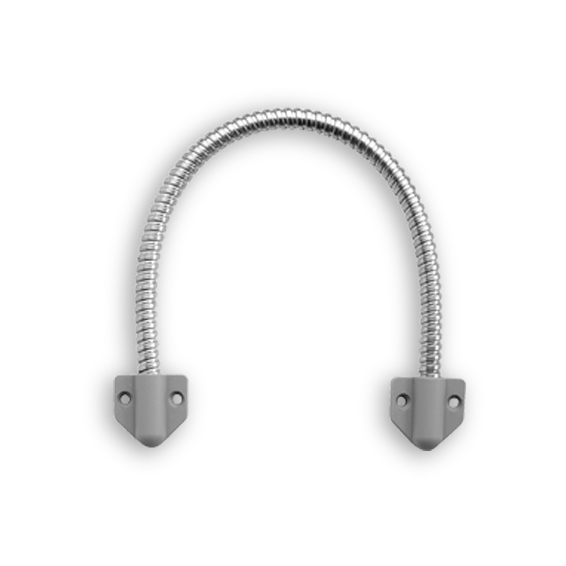

The Schlage Electronics 788-18 Flexible Armored Door Cord is a reliable and robust solution designed to securely transfer power from a door frame to the door itself, typically used in installations of electric exit devices and electrified locks. Here are the key features and specifications of this door cord:

1. Flexible Armored Design: The cord is 18 inches long and features a flexible armored construction, providing durability and protection for the internal wires. This ensures reliable performance and longevity even in high-traffic areas.

2. Compatibility: Suitable for use with aluminum, wood, and hollow metal doors, the 788-18 door cord offers versatility for various installation environments.

3. Electrical Specifications: The door cord can be purchased with or without wires. When equipped with wires, it includes four 20-gauge conductor wires (red, green, white, and black), which are 24 inches long, facilitating easy and secure electrical connections.

4. Dimensions: The cord has an internal diameter of 5/16 inches and an external diameter of 3/8 inches, ensuring a compact and robust form factor that fits standard installation requirements.

5. Standards Compliance: It meets ANSI/UL 10C and CAN/ULC-S104-15 standards, ensuring compliance with industry safety and performance requirements.

6. Application: Ideal for transferring power in security systems, this armored door cord is designed to handle the demands of commercial security applications, providing a secure path for electrical wiring from the frame to the door.

Downloadable Resources:

• Allegion Electronic Access Catalog

• Schlage 788 Installation Sheet
