Securitron AQD5-8F8R Power Supply Zoom SALE

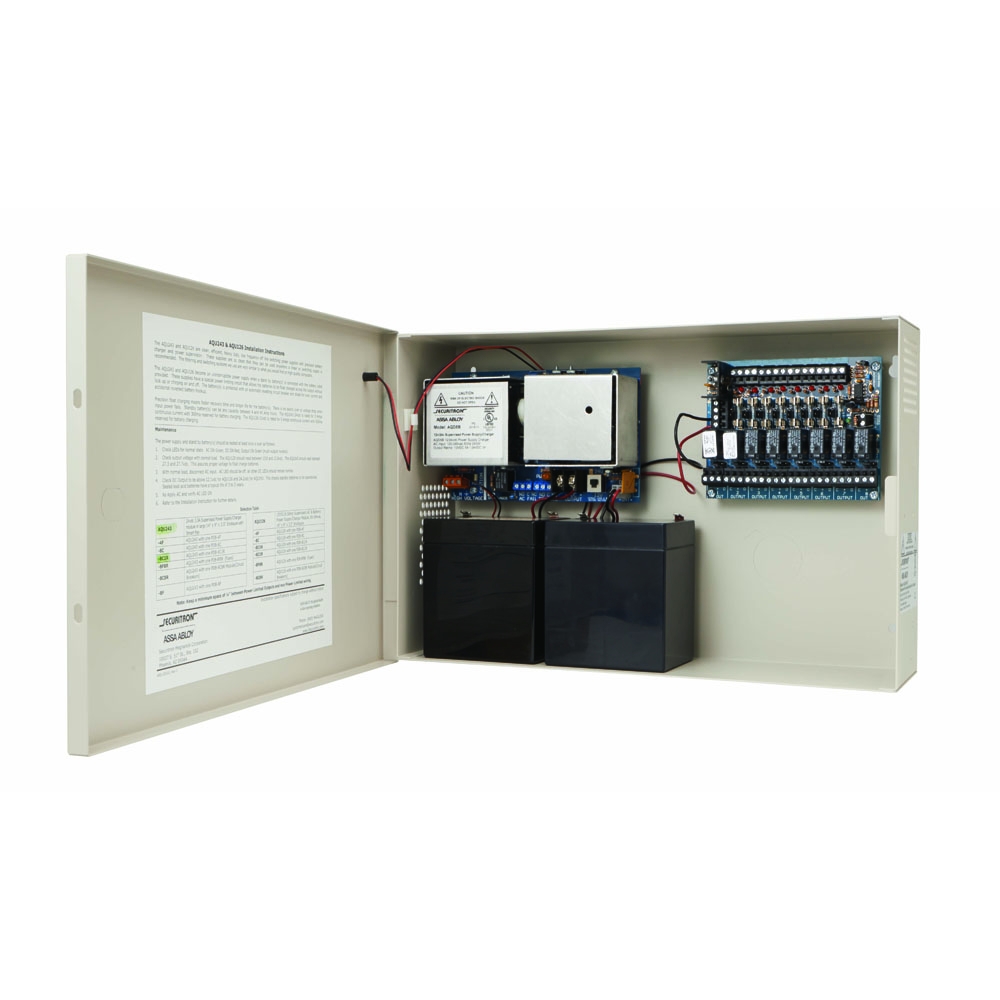

Securitron AQD5-8F8R Power Supply

SKU # SO/AQD5-8F8R

Read Review(s) | Log in to Review

The Securitron AQD5-8F8R Power Supply is a Power Supply with battery charger/backup and supervision is a dual voltage switching power supply with a fire transfer relay that uses any AC power source from 90-240VAC/43-63Hz to provide up to 5 Amps @ 12VDC or 3 Amps @ 24VDC total output. .The Securitron® AccuPower® AQD5 Series of switching power supplies are dual voltage, supervised units with battery charger.  These units are field selectable.

Features include:

  • Clean, steady, accurate power output for best performance of access control equipment8F8R
  • Field-selectable dual voltage 5A/3A @ 12/24VDC
  • Universal transformer compatible with most international power, operates down to 60 VAC
  • Self-resetting circuit breakers for common conditions including: - Overcurrent; - Thermal runaway; - Reverse battery hookup
  • Class 2 power limited output
  • Eight (8) channel power distribution with access control
    • Fire Transfer Relays
    • Channels individually configured to FT Enabled/Disabled
    • Power limited fuse protected outputs, each with a green status LED indicator
    • Main power green/red LED indicates AC, DC or Reversed DC input
    • Main fuse/power pull to disconnect board from input power
    • Pluggable terminal blocks by channel and function
  • Fuse protected against surge for AC input and DC output
  • SPDT Form C outputs for remote monitoring of: - AC failure; - Low battery; -Trigger status
  • UL and ULC Listed; Made in USA



G.S.A. Contract Holder
This item is available on our
GSA contract # 47QSWA19D001W
US$285.57

Description:

Description:

Securitron AQD5-8F8R Power Supply

The Securitron AQD5-8F8R is a dual voltage, supervised power supply designed to provide reliable and secure power for access control systems. Here are the key features and benefits:

Key Features:

  1. Dual Voltage Output:

    • The AQD5-8F8R provides field-selectable output of 12VDC at 5 Amps or 24VDC at 3 Amps. This flexibility makes it suitable for a wide range of security devices.

  2. Eight Fused Outputs:

    • The power supply comes with eight independently controlled, power-limited outputs. These outputs are fuse-protected to ensure safety and reliability in complex systems.

  3. Integrated Battery Charger:

    • The unit includes a dedicated battery charger that keeps backup batteries fully charged and ready in case of a power failure. The automatic low-battery disconnect feature helps to preserve battery life.

  4. Fire Alarm Integration:

    • The AQD5-8F8R is equipped with a fire transfer relay, allowing it to interface with building fire alarm systems. This ensures that the power supply can automatically disconnect power to specific circuits during an emergency.

  5. Advanced Protection Features:

    • The power supply features thermal shutdown protection with auto-restart, as well as circuit breakers to protect against overcurrent and reverse battery faults. It can tolerate brownout or overvoltage conditions, ensuring consistent performance even in challenging environments.

  6. Compliance and Warranty:

    • The AQD5-8F8R meets UL and ULC standards, ensuring high safety and quality. It is backed by Securitron's MagnaCare Lifetime Replacement Warranty, offering peace of mind and long-term reliability.
