Securitron BPS-24-4 Power Supply Zoom SALE

Securitron BPS-24-4 Boxed Power Supply (BPS)

SKU # SO/BPS-24-4

Read Review(s) | Log in to Review

The Securitron BPS-24-4 Power Supply is a Securitron Dual Voltage Linear Power Supply providing linear power for sensitive electronics. The Securitron BPS series of power supplies delivers linear technology recommended by most manufacturers of sensitive electronic access control and security components. Safe for use with readers, electric strikes, and maglocks, these units interface to fire alarm systems and provide battery backup.

Features include:

  • BPS-24-4 - 4A Capacity; 15" x 18" x 6" [381mm x 457mm x 152mm]; 8 Outputs
  • 24  VDC
  • Supplies 1 full amp continuous current output, even while charging back-up batteries
  • Linear regulated power supply provides the cleanest power available
  • UL Class 2 power limited output
  • SPDT AC monitoring output allows for remote monitoring of the power supply’s 110 VAC input
  • External LED indicator (AC and DC) easily determines power status
  • UL Listed, low-current fire alarm disconnect requires only a minimum size fire alarm relay and wire gauge
  • Polyswitch 2A breaker allows for large short duration inrush current if batteries are installed (approx. 20A for 1 second)
  • Line voltage and DC fuses
  • Sealed lead acid or gel battery charging capability (battery sold separately)
G.S.A. Contract Holder
This item is available on our
GSA contract # 47QSWA19D001W
US$807.12

Description:

Description:

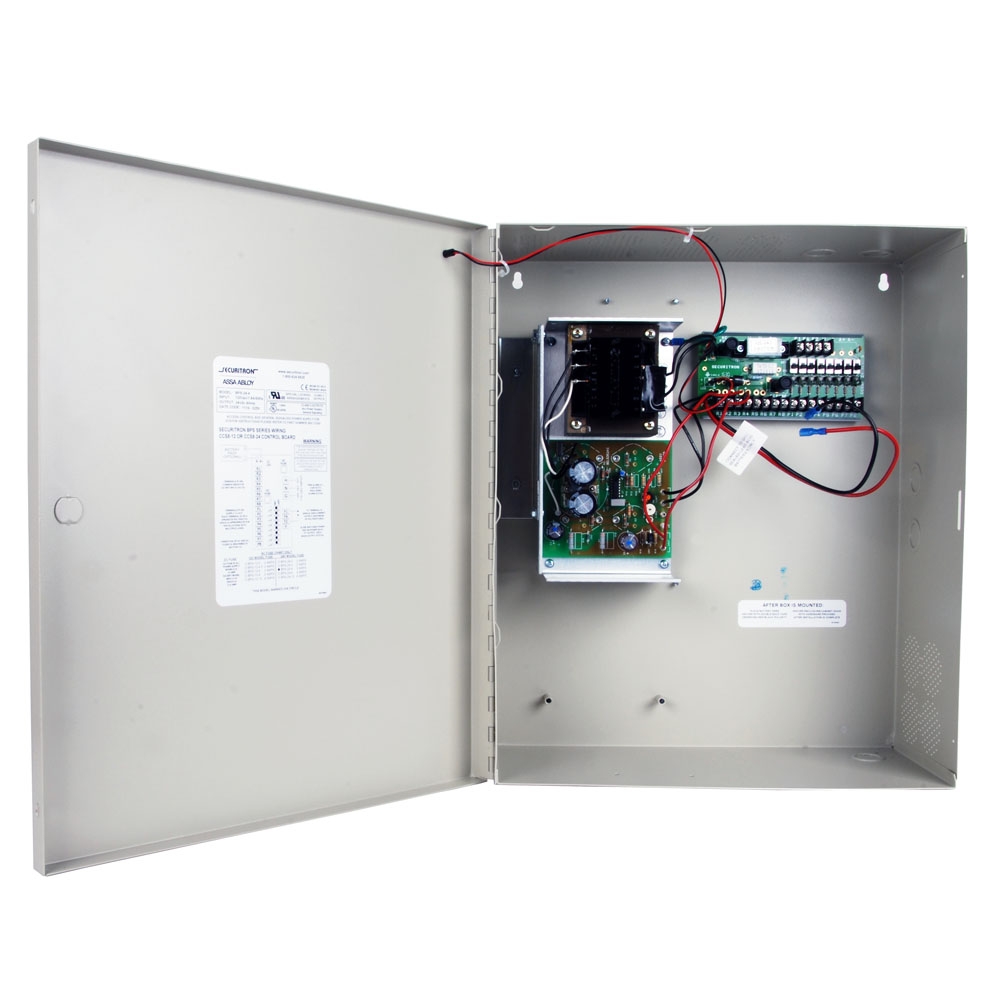

Securitron BPS-24-4 Power Supply

The Securitron BPS-24-4 Power Supply is a robust, 24VDC, 4 Amp power supply designed to provide clean, regulated linear power, which is essential for sensitive electronic access control systems such as electric strikes, maglocks, and card readers.

Key Features:

  • Battery Backup Capability: It includes integral battery charging for sealed lead-acid or gel batteries, ensuring that systems remain operational during power outages (batteries sold separately).
  • Fire Alarm Integration: The unit has terminals for fire alarm relay connections, which allow all connected devices to be safely released during an emergency.
  • Multiple Outputs: The power supply includes eight separate DC outputs, each protected by UL Class 2 listed circuit breakers, offering flexible and safe power distribution.
  • Durable Construction: Housed in a rugged steel enclosure, this power supply is built to withstand demanding environments.
  • Visual Indicators: LEDs provide easy monitoring of the voltage status across different zones, making it simple to diagnose any issues.
