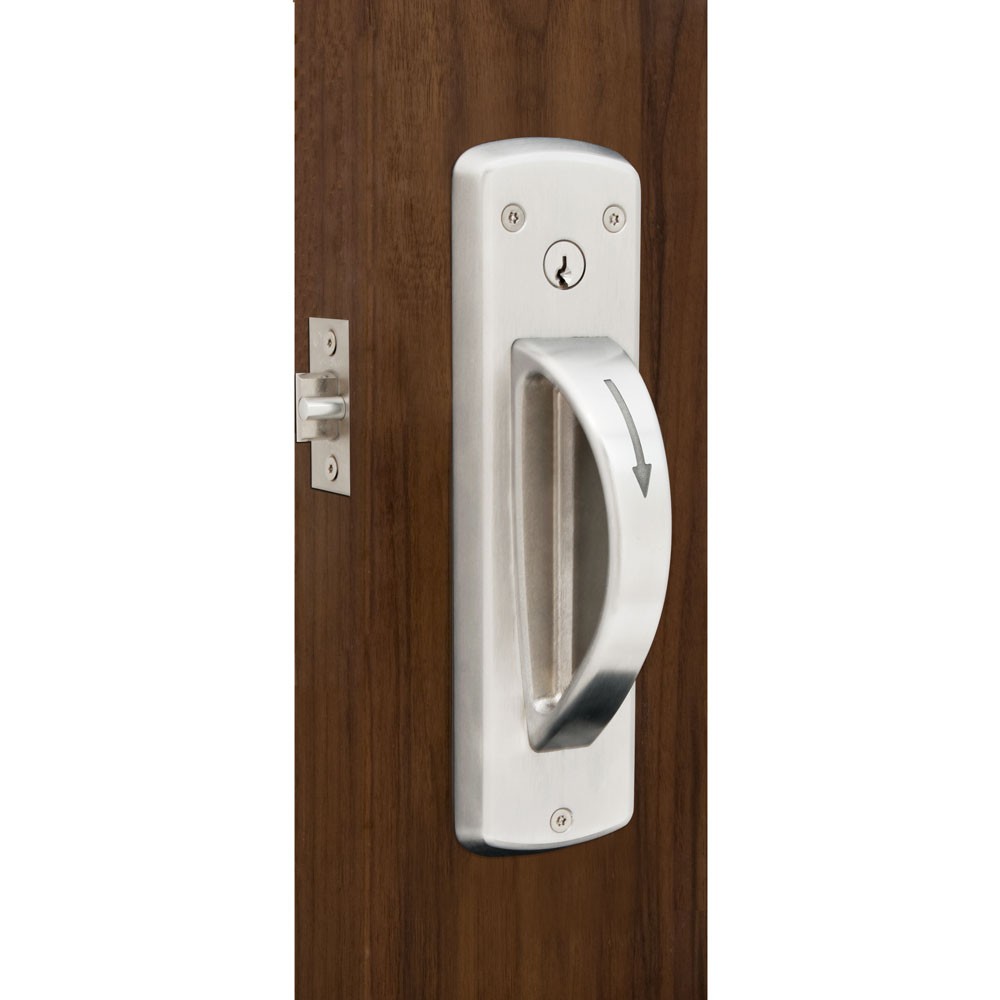

Town Steel ADA-5 Point Anti-Ligature Arched Lock Series

SPECIFICATION

• Application: For facilities housing patients at risk
• Door Thickness: 1-3/4"
• Backset: 2-3/4" standard
• Handing: Non-handed
• Finish: US32D
• Escutcheon Plate: Stainless steel, 9-5/8" x 2-13/16"
• Arch Trim: Stainless steel, 2-5/8" projection
• Latch Bolt: Stainless steel, 1/2" projection
• Faceplate: Stainless steel 1-1/8" x 2-1/4"
• Strike: Stainless steel, ASA, 1-1/4" X4-7/8"
• Mounting: Through-bolt, tamper resistant mounting screws, for wood and metal door
• Cylinder: Brass with stainless steel cover, 6pin, Schalge "C" keyway standard, 2 keys per cylinder
• Warranty: 10 years limited

CODE COMPLIANCE

• ANSI/BHMA: Meets or exceeds all Grade 1 requirements of ANSI/BHMA A156.2-2011
• UL/ULC: UL/ULC 10C listed 3-hour rating
• BAA: Meets requirements of the Buy American Act
• ADA: Meets guidelines of the Americans with Disabilities Act
• OMH: OMH of New York State approved
