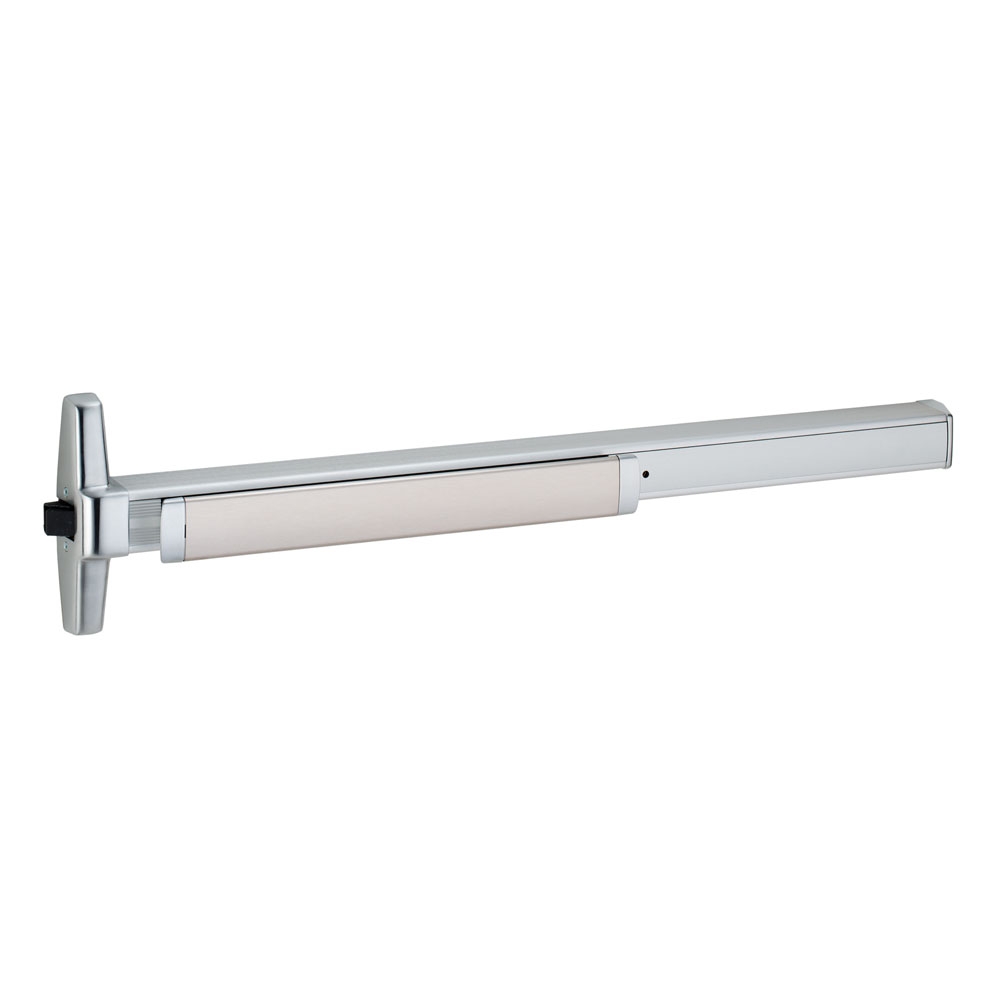

Von Duprin 35A-EO-3-26D Rim Exit Device

Von Duprin 35A-EO-3-26D Rim Exit Device

More Info

• Strikes top - 338 – unfinished, bottom – 385A - unfinished.
• UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1.
• Hex key dogging standard.
• Door undercut 1/4".
• Center case dimensions 8 13/16" x 2 13/32" x 1 9/16".
• Device lengths: 2' 2' (610 mm) Door size 3' 2'4" to 3' (660mm to 914 mm) door size 4' 2'8" to 4' (813 mm to 1219 mm) door size
• Device centerline from finished floor: 39 13/16" (1006mm)
• Center case dimensions: 8 13/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)
• Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
• Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
• Latch bolt: Deadlocking anti-friction top & bottom bolt 5 /8" (16mm) throw
• Door undercut: 1 /4" (7mm)
• Top & bottom latch: 3 3/4" x 1 1/2" x 1" (89mm x 38mm x 25mm)
• Vertical rods: Round 2 piece adjustable rods Top rod adjustable from 6'8" (2027mm) to 8'4" (2533mm) Bottom rod adjustable from 35 5/8" (905mm) to 49 5/8" (1260mm) Extension rod kits available for doors over 8'4" (2533mm)
• Fasteners & sex bolts (SNB): Includes 1 3/4" (44mm) – 2 1/4" (57mm) wood & metal doors #425 SNB furnished standard for end case #325 SNB furnished standard for EO (exit only device)
