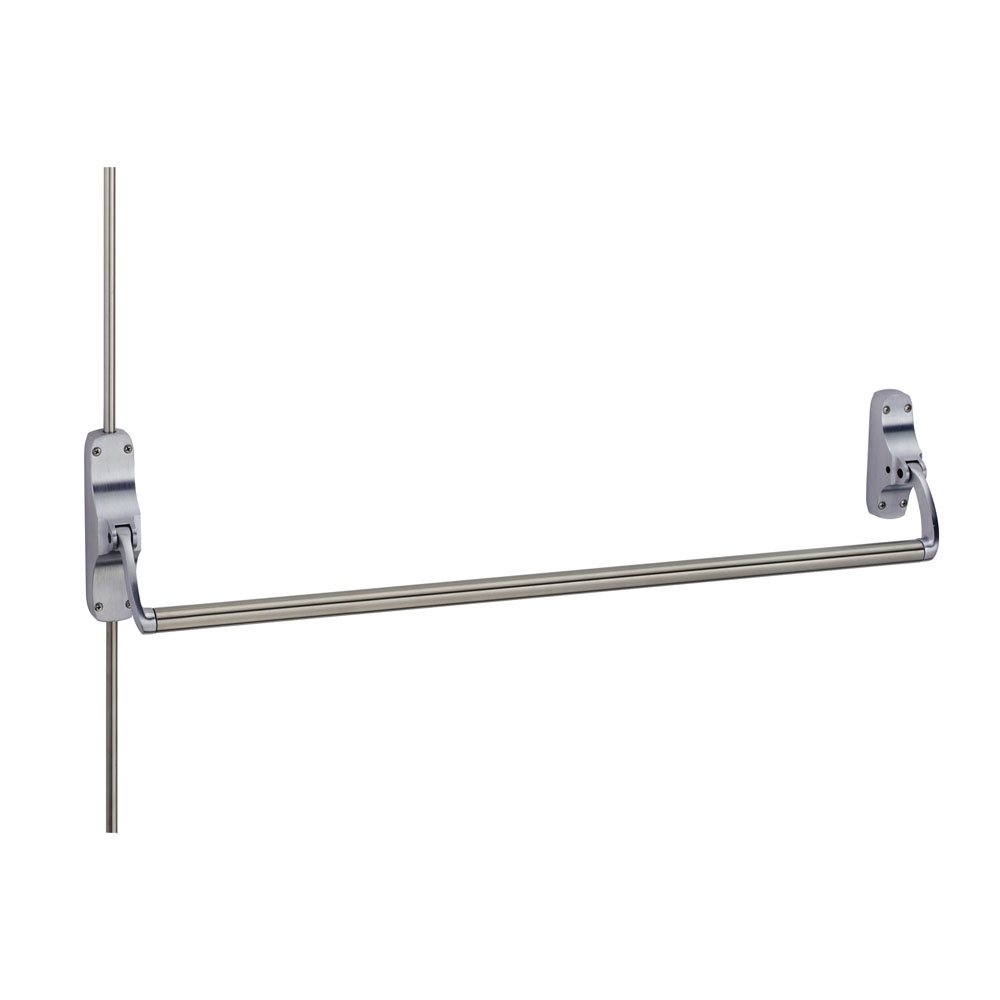

Von Duprin 8827EO-F Fire Rated Surface Vertical Rod Exit device 88 Series. The 88-Series is a traditional crossbar design with proven service on rugged applications. All Von Duprin 88-Series exit devices are UL listed for Accident Hazard and Fire Exit Hardware, and are tested in accordance to ANSI Grade 1 requirements.
88-Series Fire Rated Surface Mounted Vertical Rod Device (8827-F) - for all types of 8' x 8' double doors; UL listed 3 hours. Fits door stiles as narrow as 3-3/4".
Features: Fully Reversible (Nonhanded), Field Sizeable, 5/8” throw latch bolt.
Dimensions:
- Crossbar height to finished floor: 36-13/16" at center
- Crossbar Projection: Neutral = 4-7/8"; Depressed = 4"
- Crossbar Length: 42" field sizeable
- Lock Stile Case: 8-1/4" x 2" x 15/16"
- Hinge Stile Case: 6" x 1-3/4" x 15/16"
- Crossbar tubing: 1"
- Top and Bottom Latch Case: 4" x 2" x 1-7/8"
- Vertical Rod: 1/2"
Strike and Fasteners – Device is furnished with standard with 304L strike. All necessary mounting fasteners and the sex nuts and bolts required for the latches are included
