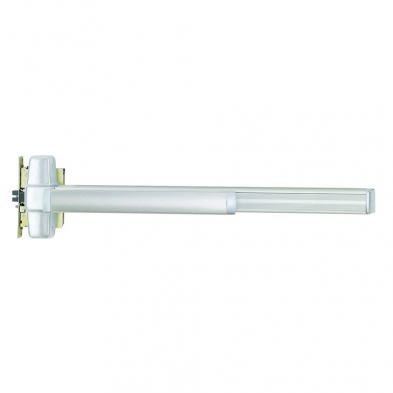

Von Duprin 9975EO-F-3-26D Mortise Exit Device, Exit Only

SKU # VD/9975EO-F-3-26D

The Von Duprin 9975EO-F-3-26D Mortise Exit Device, Exit Only

9975 Mortise lock device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Fits stock hollow metal doors with 86 cutout and door stiles as narrow as 4 3⁄4" (121mm). The 9975 device has a smooth mechanism case.

Features:

  • Available options allows for tailoring to any facility’s needs
  • Designed for high use and abuse in institutional applications like schools, hospitals and government facilities
  • A variety of field-configurable options available
  • Retrofit kits available to keep up with changing technology
G.S.A. Contract Holder
This item is available on our
GSA contract # 47QSWA19D001W

Register/Log In for Pricing Info!

Comments or instructions

Description:

Description:

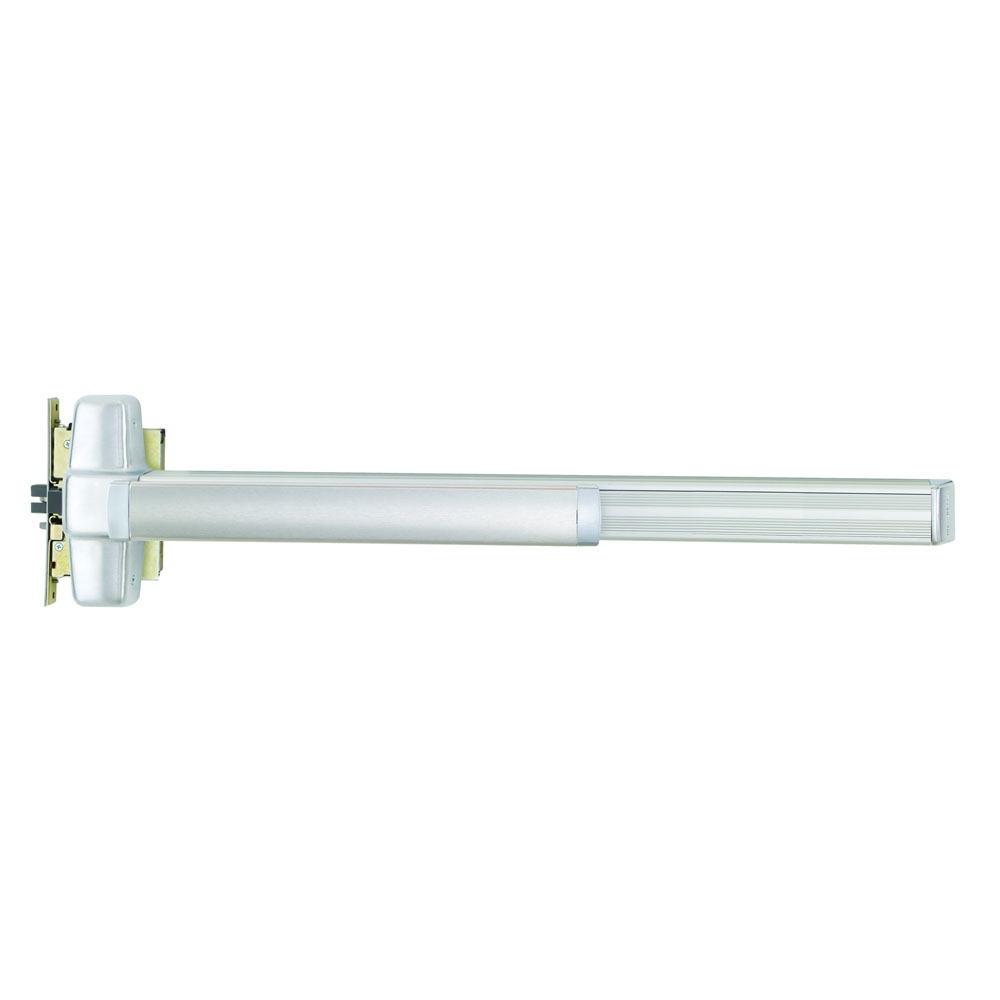

Von Duprin 9975EO-F-3-26D Mortise Exit Device, Exit Only

This Von Duprin mortise lock exit device is suitable for all types of single and double doors. It will properly fit stock hollow metal doors that have an 86 cutout. This device is supplied as exit only which means that there is no available operation from the outside of the door. A minimum stile of 4-3/4” is necessary in order to fit this device.

  • Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
  • Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
  • Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
  • Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
  • Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
  • Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
  • Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood do
