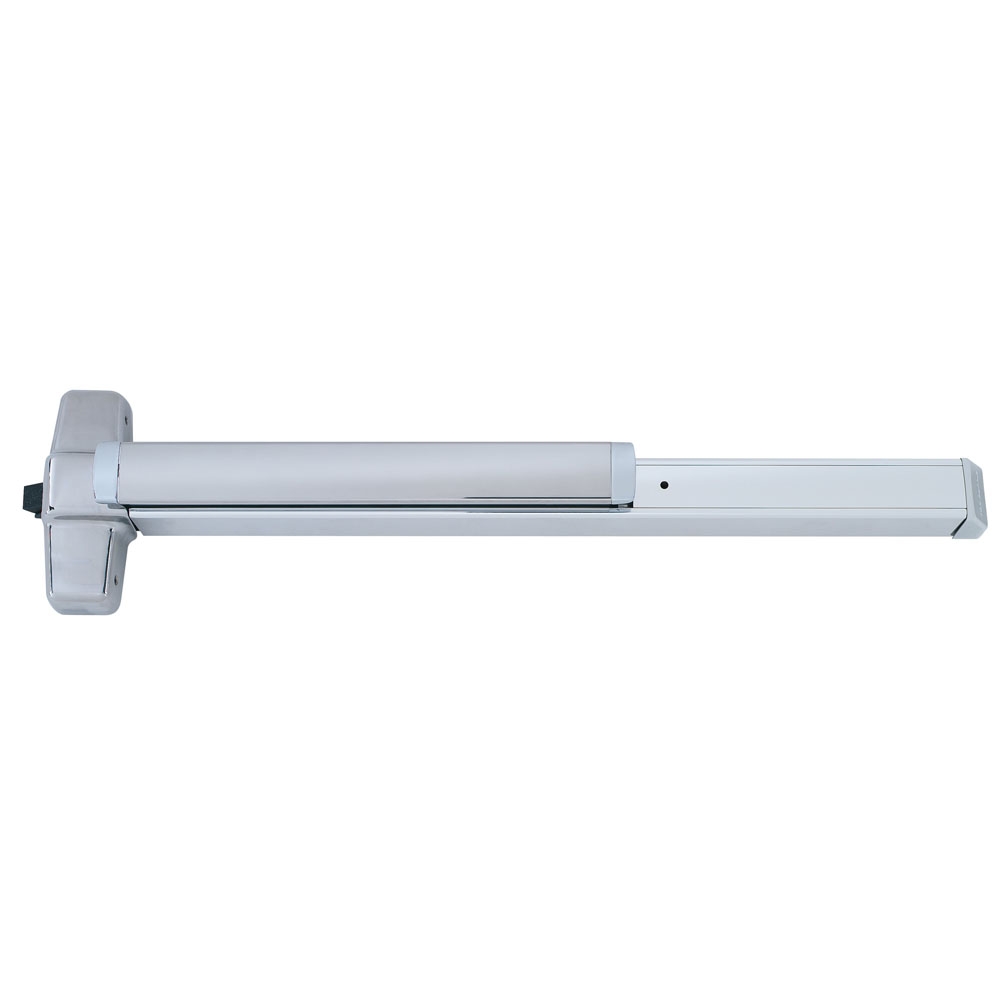

Von Duprin 99 Series Exit Devices

SKU # VD99EO

The 99 Series devices are wide stile, heavy-duty push pads designed for high use and abuse in institutional applications like schools, hospitals and government facilities

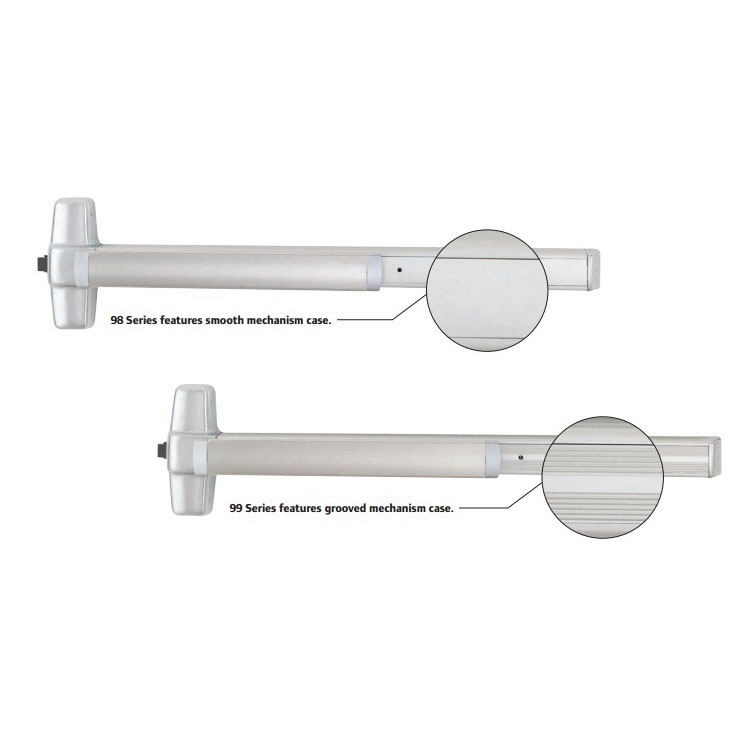

The 99 Series has a grooved mechanism case, while the 98 Series has a smooth mechanism case. Both been certified to the highest industry standards.

  • The breadth of available options allows for tailoring to any facility’s needs
  • Designed for high use and abuse in institutional applications like schools, hospitals and government facilities
  • A variety of field-configurable options available
  • Retrofit kits available to keep up with changing technology

G.S.A. Contract Holder
This item is available on our
GSA contract # 47QSWA19D001W
Pricing varies based on options selected below.

Register/Log In for Pricing Info!

Specifications:

Specifications:

  • Device Functions: Device ships EO/DT/NL. Field selectable. For TP,K,or L remove NL drive screw from device
  • Device Lengths: 2’4" to 3’ (711mm to 914 mm) Door Size
  • Strikes: 299 – Dull Black Optional Strikes
  • Dogging Feature: Hex key dogging standard
  • Fasteners & Sex Bolts (SNB): Includes 1-3/4" (19mm) – 2-1/4" (57mm)
  • Latch Bolt: Deadlocking, 3/4" (19mm) throw
  • Device Centerline from Finished Floor: 39-13/16" (1011 mm) 39-11/16" (1008 mm) with Mullion
  • Center Case Dimensions: 8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm)
  • Mechanism Case Dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
  • Projection: Pushbar Neutral – 3-13/16" (97 mm) Pushbar Depressed – 3-1/16" (78 mm)
