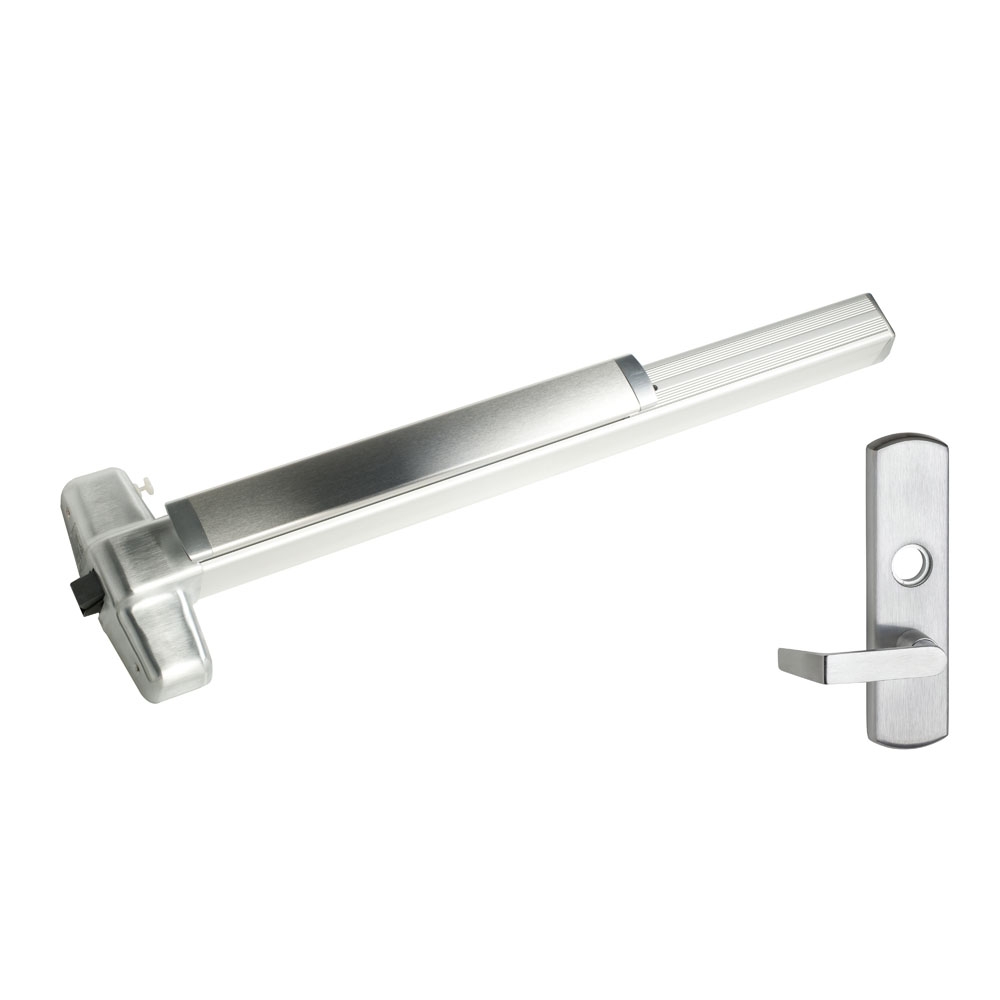

Von Duprin 99L-NL-06-3-26D-LHR Rim Exit Device

The Von Duprin 99L-NL-06-3-26D-LHR Rim Exit Device

98-F and 99-F Rim fire exit devices for all types of single doors up to 4' x 10' (1219mm x 3048mm) or 8' x 10' (2438mm x 3048mm) double doors with 9954 or 9854 mullion, UL listed for fire exit hardware.
Devices are ANSI A156.3 - 2008 Grade 1. The 98-F device has a smooth mechanism case and the 99-F device has a grooved case.
The rim device is non-handed except when the following device options are used: -2 (double cylinder) or SS (signal switch).
Possible Finishes - US3, US3A, US4, US4A, US10, US26, US26D, US26D-AM Antimicrobial, US28, 313, 315 & 643E. US15 and US32D available with 98 Series only.

This item is available on our
GSA contract # 47QSWA19D001W

US$2,041.38

Qty:

Comments or instructions

Description:

Von Duprin 99L-NL-06-3-26D-LHR Rim Exit Device

Heavy-duty exit devices with grooved mechanism cases for all types of single and double doors.

The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder) or SS (signal switch).

Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
Latch bolt: Deadlocking, 3/4" (19mm) throw
Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors.
