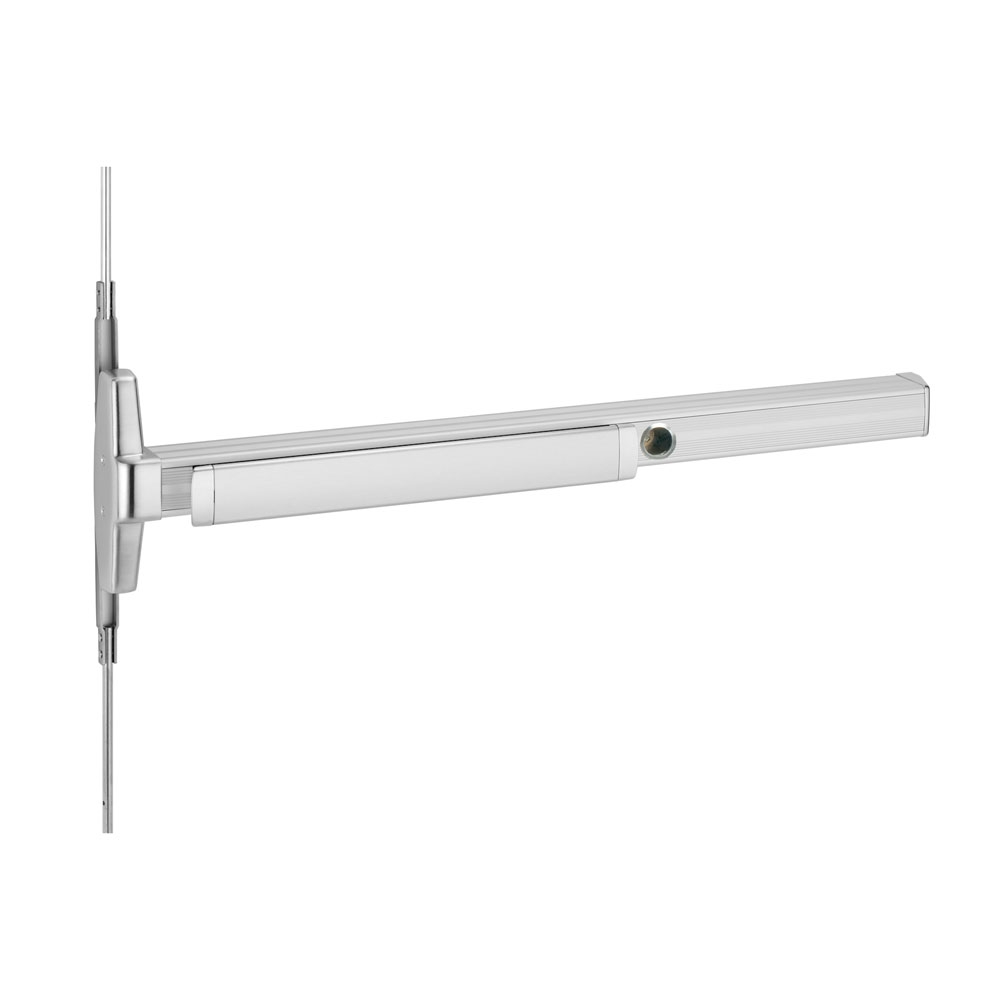

Von Duprin CD3347A-EO-3-US26D Vertical Rod Exit Device
3347A Series Concealed Vertical Rod Exit Device
3347A fits door stiles as narrow as 2-1/8" (44 mm), wood door stiles as narrow as 4" (102mm).
3347A is for all types of single and double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2001 Grade 1 and the 3347A has a grooved case. The concealed vertical rod device is non-handed except when the SS (signal switch) option is used.
- Device lengths: 2' 2' (610 mm) Door size 3' 2'4" to 3' (660mm to 914 mm) door size 4' 2'8" to 4' (813 mm to 1219 mm) door size
- Device centerline from finished floor: 39 13/16" (1006mm)
- Center case dimensions: 8 13/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)
- Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
- Latch bolt: Deadlocking anti-friction top & bottom bolt 5 /8" (16mm) throw
- Door undercut: 1 /4" (7mm)
- Top & bottom latch: 3 3/4" x 1 1/2" x 1" (89mm x 38mm x 25mm)
- Vertical rods: Round 2 piece adjustable rods Top rod adjustable from 6'8" (2027mm) to 8'4" (2533mm) Bottom rod adjustable from 35 5/8" (905mm) to 49 5/8" (1260mm) Extension rod kits available for doors over 8'4" (2533mm)
- Fasteners & sex bolts (SNB): Includes 1 3/4" (44mm) – 2 1/4" (57mm) wood & metal doors #425 SNB furnished standard for end case #325 SNB furnished standard for EO (exit only device)
