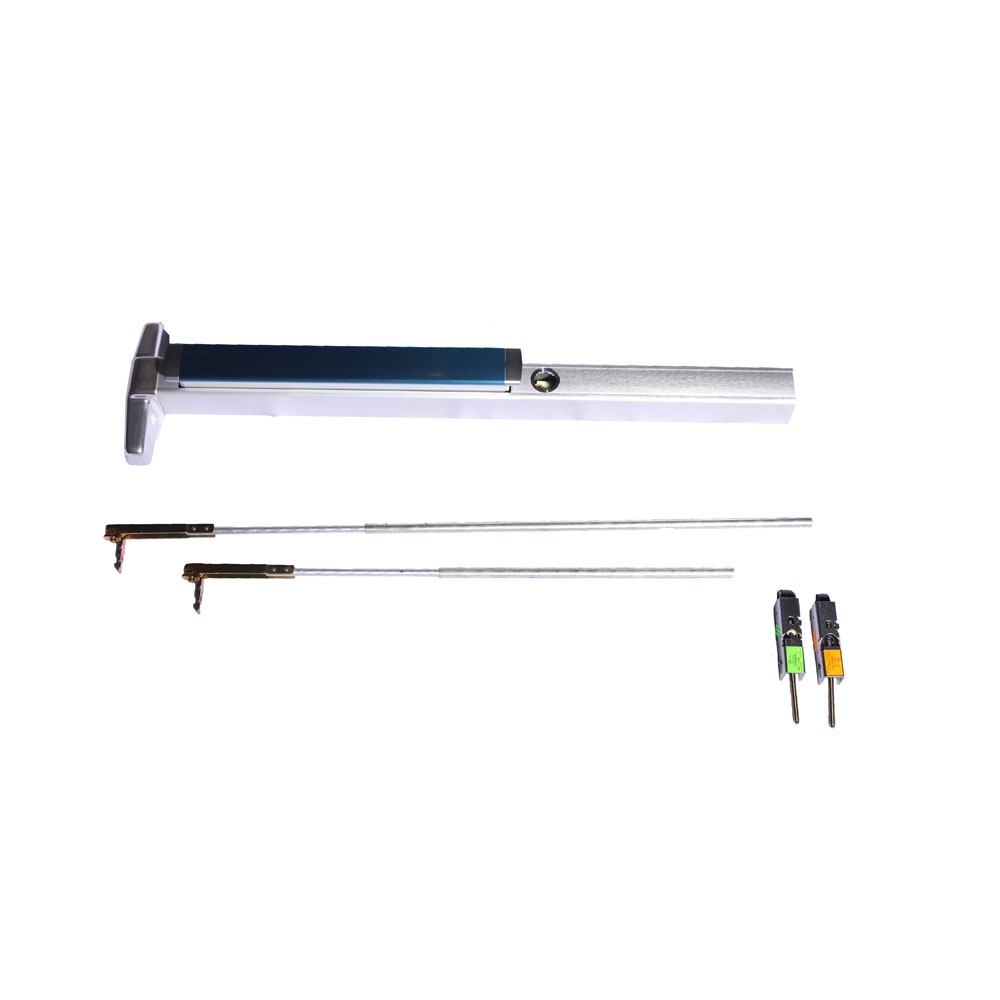

Von Duprin CD3547A-EO-3-26D Vertical Rod Exit Device
Von Duprin 3547A-EO Concealed Vertical Rod Touch Bar Exit Device - Exit Only
"3547A Series has a smooth mechanism case"
Device Handing: Non-Handed (except when the SS (Signal Switch) option is used).
Device Lengths: 3'- 2' 4" to 3' (711mm to 914 mm) Door Size, 4- 2' 10" to 4(864 mm to 1219 mm) Door Size.
Door Height: up to 8' 4" (2533mm). Extension rods available for door heights up to 10'.
Possible Finishes: US3 - Bright Brass, US4 - Satin Brass, US10 - Satin Bronze,US26 - Bright Chrome, US26D - Satin Chrome, US28 - Aluminum Anodized, 313AN - Anodized Duranodic (Dark Bronze), 315AN - Anodized Black.
Strike: Top 338 Unfinished, Bottom 385A UnfinishedVon Duprin 3347A-EO Concealed Vertical Rod Exit Device.
Dogging Feature: Hex key dogging standard.
Fasteners: Includes 1 3/4" (19mm) 2 1/4" (57mm) Wood & Metal Doors; Sex Bolts #425 SNB furnished standard for end case #325 SNB furnished standard for EO (exit only device)
Latch Bolt: Deadlocking Anti-friction Top & Bottom Bolt 5/8" (16mm) throw.
Device Centerline from Finished Floor: 39 5/8" (1006mm) Standard, Adjustable from 35 5/8(905mm) to 49 5/8(1260mm).
347A/3547A fits door stiles as narrow as 1-3/4(44 mm), wood door stiles as narrow as 4(102mm).
All 33A/35A series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade1.
