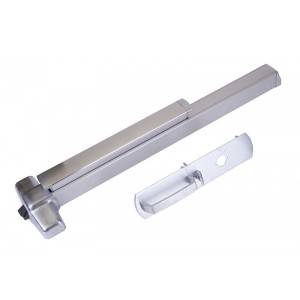

Von Duprin EL98TP-3-32D Rim Exit Device
Von Duprin EL98/99EO Grade 1 Rim Exit Bar, Wide Stile Pushpad, Exit Only, Electric Latch Retraction, Less Dogging, Satin Chrome Finish
The EL feature allows for the remote unlatching of exit devices. A control station operator can flip a switch to retract the latchbolt and immediately change an exit door to push-pull operation. A powerful, continuous duty solenoid retracts the latch bolt, either for momentary unlatching, or for extended periods of time. The EL feature is an alternative to manual dogging.
EL devices are also useful with automatic door operators, and may be applied to fire-rated applications when under the control of an automatic fire alarm system.
UL approved for Class II circuit applications. The EL option does not include the power transfer from door to frame, the power supply, or the control operator. Refer to EPT-2 or EPT-10 power transfer and the PS914-2RS power supply.
Solenoid specifications:
Continuous duty – 24 VDC
Current inrush – 16 Amps
Current holding – 0.3 Amps
Solenoid resistance:
-grn-yel 1.2 – 2.2 OHMS
-grn-org 100 – 150 OHMS
