Von Duprin PS902-2RS-FA Base Power Supply
Electric power transfer provides a means of transferring electrical power from a door frame to the edge of a swinging door. The units are completely concealed when the door is in the closed position, and are ideally suited for installations involving abuse or heavy traffic.
Main Features
- UL listed as Miscellaneous Door Accessory
- EPT-2 - Two, 18 gauge wires
- EPT-10 - Ten, 24 gauge wires

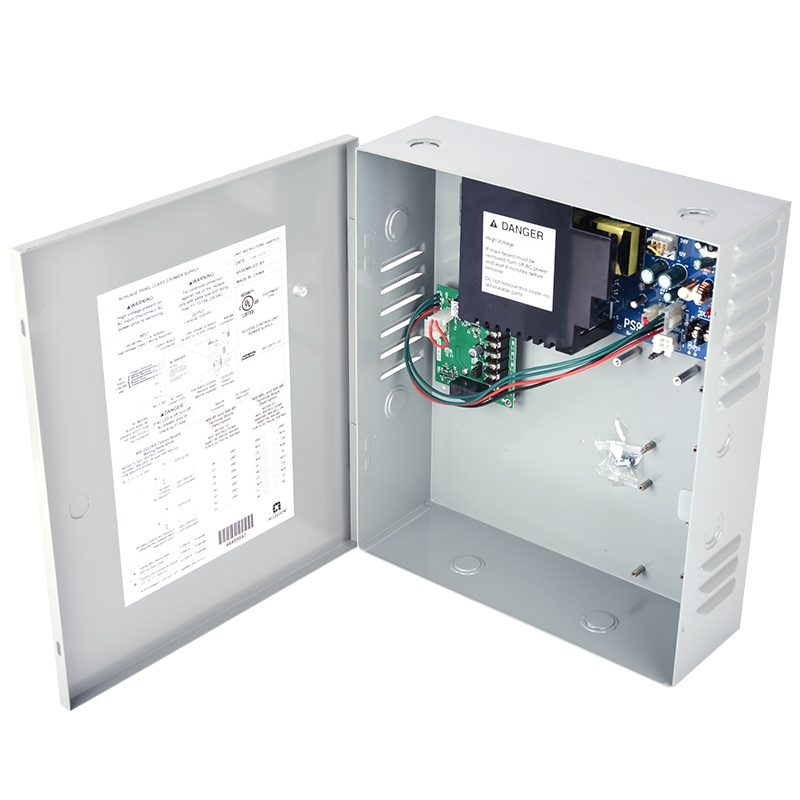

Von Duprin PS902 Base Power Supply (12/24 VDC field selectable)
Installation is simplified by utilizing a flat mounting design and polarized locking connectors for option boards. This design eliminates the need for racks and side connectors. The flat mounting of the option boards also provides for easier access to the terminal blocks for connection of electrified devices (such as exit devices, electrified strikes, electromagnetic locks, card readers, etc.). Common to the line of PS900 Series power supplies is a constant output rating at both 12v and 24v settings, universal 120 VAC to 240 VAC input, and polarized option board connectors. New fire alarm interface board mounting allows outputs to be configured as switched (power cut) or unswitched (power continues) when signal is provided.
- 2A @ 12/24 VDC constant output, field selectable with jumper
- Provides low-voltage, Class 2, filtered and regulated power
- Universal 120-240 VAC, fused primary input
- UL 294, ULC-S318, RoHS, and FCC Part 15 certified
