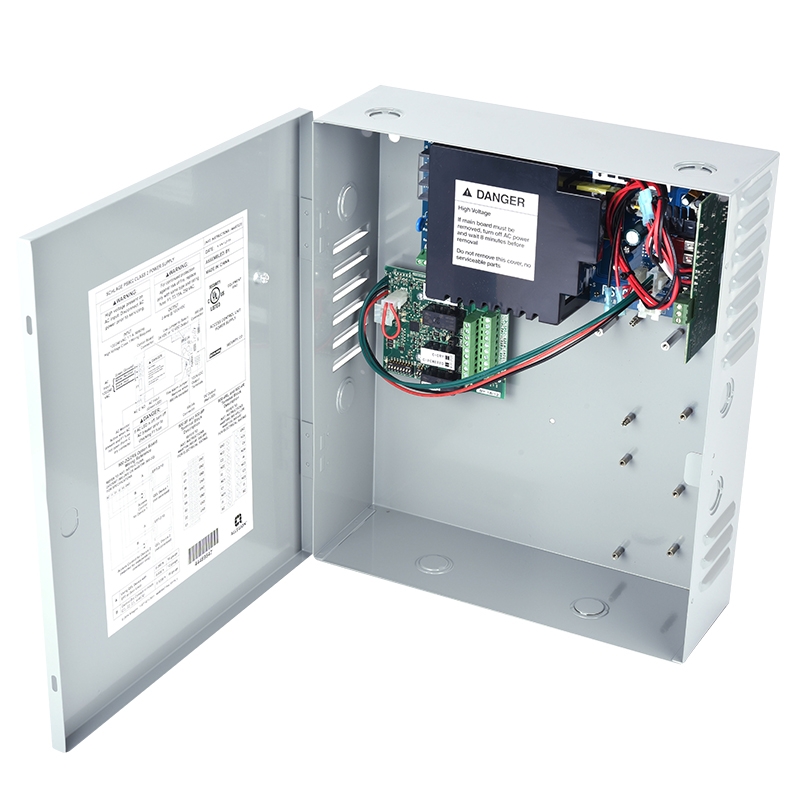

Von Duprin PS902-BBK Base Power Supply
The Von Duprin PS902 2-amp power supply is designed to deliver a highly filtered and regulated "clean" output to protect downstream devices. The PS902 is factory and field configurable to suit specific needs. Separate battery management extends battery life and ensures consistemt output.
The PS900 Series of power supplies works with many electrified devices including Schlage electromagnetic locks, Schlage AD-Series hardwired locks, Schlage electrified mechanical locks, Von Duprin electrified strikes , Von Duprin exit devices, and many other brands.
Number of connectors on power supply for the following: 2 amps
Distribution boards: 1
Battery back-up board: 1
Output:
- 2 amp
- Clean, consistent power output helps protect the sensitive circuitry of downstream products
- Overload protection prevents too much current being pulled by an overload of devices
- 12/24 VDC output field selectable with plug-in jumper Externally visible LED indicator provides visual status on AC input
- Ability to provide continual power with battery backup
Input:
- Universal 120-240 VAC, fused primary input
- Externally visible AC input indicator with isolated SPDT contacts
- Battery back-up board auto-selects voltage
- LED indicator provides visual status on DC output
Installation
Order to specification or field configure; option boards use polarized plug-in connectors to simplify in-field expansions
Option boards enable basic fuse protection, simple relay, advanced logic with sequencing and timing, panic device control, fire alarm relay and battery backup
Cabinet accommodates 2 batteries and up to 2 option boards, plus fire alarm relay and battery backup boards
Option boards:
- 900-4R: 4 relay controlled output board to power multiple devices
- 900-4RL: 4 relay distribution board with logic is field configurable for time delay function, auto operator, security interlock
- 900-8F: Provides 8 individually fuse-protected outputs, giving the flexibility to power multiple devices and provide another layer of protection
- 900-FA: Emergency interface relay integrates with fire alarm and is used to cut power in case of emergency
- 900-BB: Battery backup
- 900-2RS: 2 relay EL panic device control board (PS914 only)
- 900-BBK: Battery backup kit includes two 7A/hr batteries and provides up to four hours of backup power when cycled every 5 minutes at full load
Certifications:
- UL 294 certified the standard for access control
- Class 2 rated
