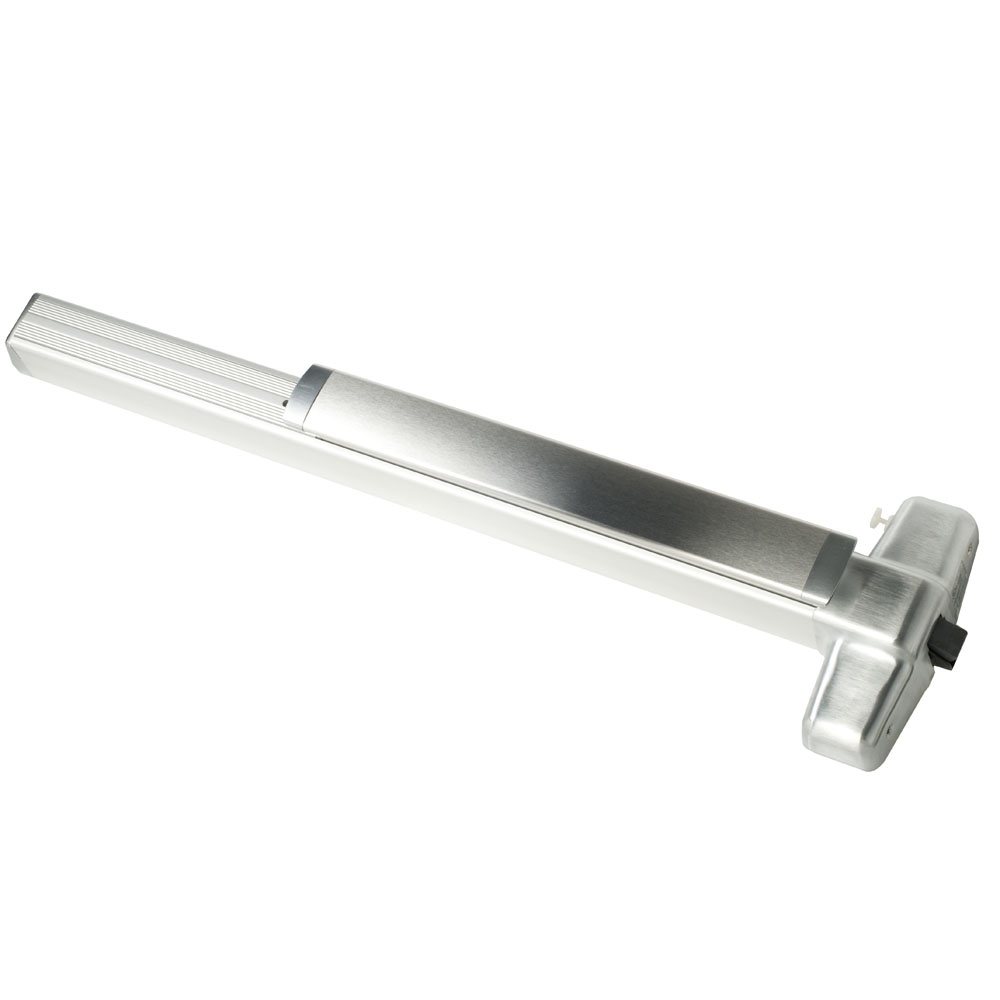

Von Duprin RXQEL99EO-3-26D Rim Exit Device
Quiet electric latch retraction (QEL) provides electronic control of an exit device for environments where limited operational noise is desired. The QEL option is Von Duprin's solution of choice for hospitals, libraries, museums and theaters where ambient noise can be disruptive. It is available on all Von Duprin 98/99, 94/95 and 33A/35A series exit devices.
These devices always provide mechanical egress. The electrified latch retraction can also be activated by an access system or building automation system to unlatch the exit device momentarily. Often the QEL is used with a credential reader and access control system to unlock the door momentarily for authorized users.
The QEL can also be configured to electronically retract the latch for an extended period of time to allow free entry. This is a convenient alternative to mechanical dogging. If manual dogging is required, the hex dogging option is available, to order specify HD-QEL. Special center case dogging is also available for 98/99 rim and vertical systems, specify SD-QEL
The QEL option is available on panic devices and fire rated devices. Fire rated openings have several additional requirements. They must be self latching and self closing. To satisfy these requirements the QEL must be paired with an automatic operator and under the control of an automatic fire alarm system when used on fire rated openings
Main Features
- QEL option available on all 98/99, 94/95 and 33A/35A series exit devices
- Energy efficient motorized latch retraction utilizes standard 2 A power supply, enabling longerWire runs from power source
- Quiet operation in both mechanical and electronic states
- Modular design allows for a simplified installation
- On-board installation and troubleshooting diagnostics built into device
- Auto adjust latch retraction - automatically adjusts latch throw and pull
- Pushbar is pulled in electronically for quieter operation when dogged
- Vandal resistant - detects and responds to events of attack and tampering
Dimensions:
- Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door Size - 4' 2'10" to 4' (864 mm to 1219 mm) Door Size.
- Device Centerline from Finished Floor: 39-13/16" (1011 mm) - 39-11/16" (1008 mm) with Mullion.
- Center Case Dimensions: 8" x 2-3/4" x 2-3/8(203mm x 70mm x 60mm).
- Projection: Pushbar Neutral 3-13/16" (97 mm) - Pushbar Depressed 3-1/16" (78 mm).
- All 98 and 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1.
