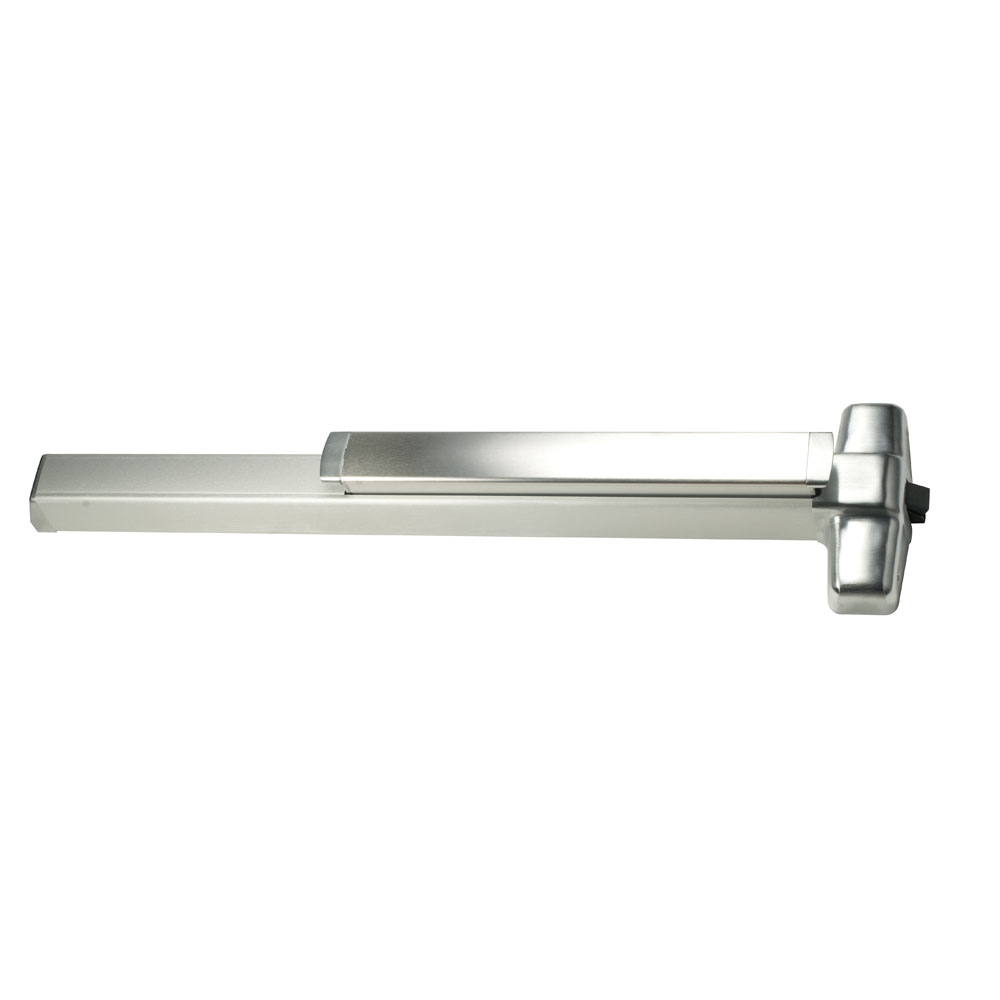

Von Duprin XP98EO-F-3FT-32D Rim Exit Device
Von Duprin XP98EO-F 3FT 32D Rim Exit Device, Exit Only, No Trim, Fire Rated, Extra Protection, Satin Stainless Steel XP98/99 Rimfire exit devices are designed for single (up to 4 Ft. x 10 Ft.) and double doors (up to 8 Ft. x 10 Ft.) with 9954-XP mullion that require increased security.
The XP latch provides twice the static load force resistance of standard exit devices. The "smart" latch changes shape when subjected to external forces. This design enables the exit door to withstand an external attack and remain secure. Additionally, the patented latch bolt design provides a greater, longer-lasting latch bolt-to-strike contact which is not easily affected by the twisting motion of a weakened frame, resulting in an opening that will remain strong. Devices are ANSI A156.3 - 2014 Grade 1 and UL listed for fire exit hardware. The rim device is non-handed except when the following device option is used: -2 (double cylinder). See the opposite page for available outside trim and device functions. Covers stock hollow metal doors with 86 or 161 cutouts on single doors (may cover cutouts on pairs - consult template).
