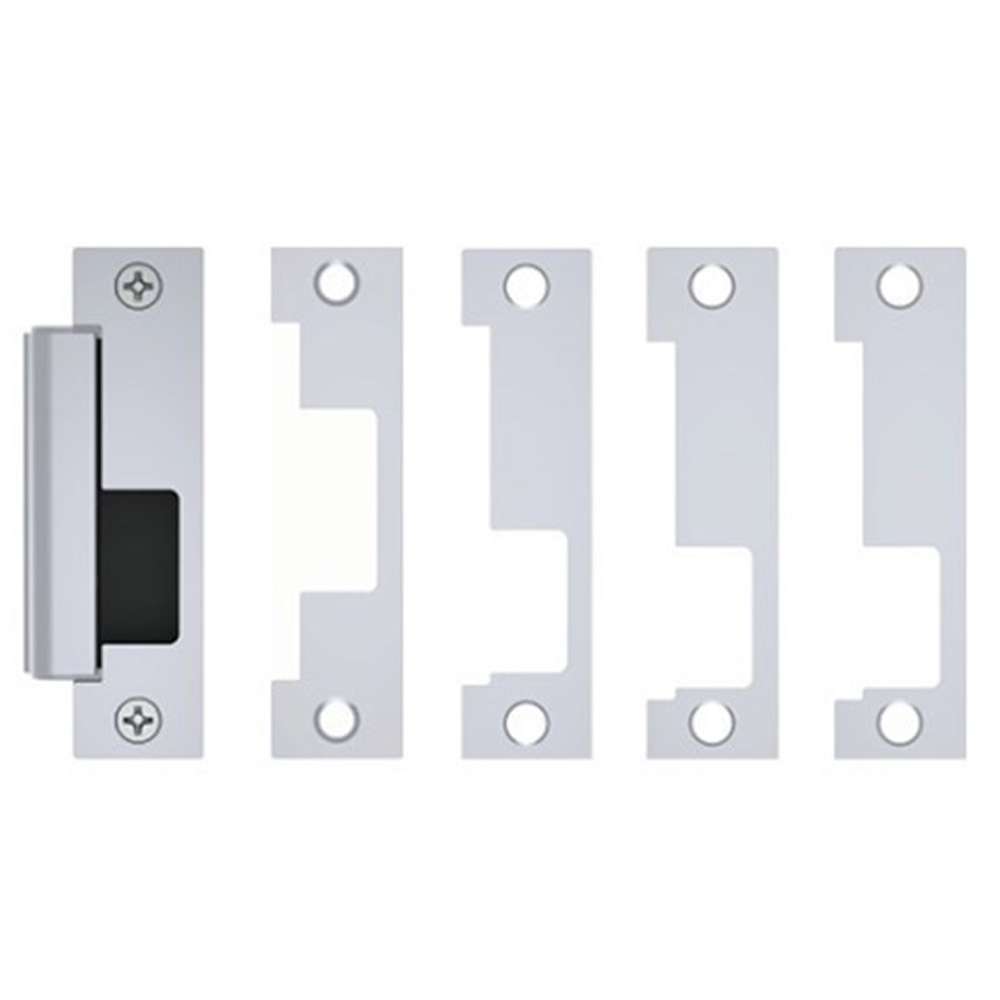

HES 1500C-630 Electric Strike

SKU # HE/1500C-630

Read Review(s) | Log in to Review

The HES 1500C-630 Electric Strike is an Electric Strike in a Complete One Box Solution for Latchbolts.

The HES 1500 Series electric strike is more than a new heavy duty, low profile solution for latchbolt locks.  It accommodates every brand of cylindrical or mortise lock designed to work with a 4-7/8” strike plate.

Specifications include:

  • Electric Strike Kit
  • Complete One Box Solution
  • Satin Stainless Steel
  • The 1500C has a heavy duty, low profile design for latchbolt applications.
  • Each Complete Pac conveniently pairs the reliabilty of an HES electric strike with the flexibility of multiple faceplates in a single simple package.
  • The 1500C includes a 1500 strike body and 1LB faceplate kit for latchbolts.
  • Stainless steel construction
  • Tamper resistant

Delivery: The HES 1500C-630 Electric Strike is in stock, please allow 1-2 business weeks' lead time.

G.S.A. Contract Holder
This item is available on our
GSA contract # 47QSWA19D001W
US$360.25

Description:

Description:

HES 1500C-630 Electric Strike

The HES 1500 Series® and 1600 Series® Electric Strikes set a new standard in the industry by offering dynamic integrated adjustability and field configurable options compatible with any cylindrical or mortise lock. The modular design of the platform makes stocking and installing easier with interchangeable faceplates and accessories. For the first time, the aesthetics of an electric strike are complimentary to other surrounding door hardware and blend in with the opening due to the fully finished design available in eight finishes.

Application

  • Surface Mounting : Cutting required
  • Frame Material : Metal|Wood
  • Adjustability : Horizontal
  • Latchbolt Accommodation : Up to 3/4"
  • Listings
  • Fire Rated : Yes
  • Grade : Grade 1
  • Windstorm Resistant : Yes

Environmental

  • Maximum Operating Temperature (° F) : NA
  • Minimum Operating Temperature (° F) : NA
  • Operating Humidity : NA

Certifications

  • ANSI/BHMA A156.31, Grade 1
  • ANSI/SDI 250.13 Certified
  • ASTM E152 Fire Door Compliant
  • ASTM E330 Certified
  • CAL FIRE, 3776-1654:0500
  • Florida Building Code Approved FL# 22400
  • NFPA-252 fire door Compliant
  • RoHS Compliant
  • UL 1034 burglary-resistant listed
  • UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
  • UL294 Listed

Electrical

  • Power Source : Hardwired
  • Voltage : 12/24
  • Monitoring Installation : Factory Configured|Field Installable
  • Actuator Type : Solenoid
  • Current 12v DC (mA) : 240
  • Current 24v DC (mA) : 120

General Specification

  • Body Material : Stainless Steel
  • Lock Type : Cylindrical Lock|Mortise Lock
  • Handing : Non-handed
  • Fire Rating ~ Single Door : 3 Hour (Fail Secure Only)
  • Fire Rating ~ Double Door : 1.5 Hour (Fail Secure Only)

Strength & Durability

  • Dynamic Strength (ft-lbs) : 70
  • Endurance (cycles) : 1,000,000

Specifications:
