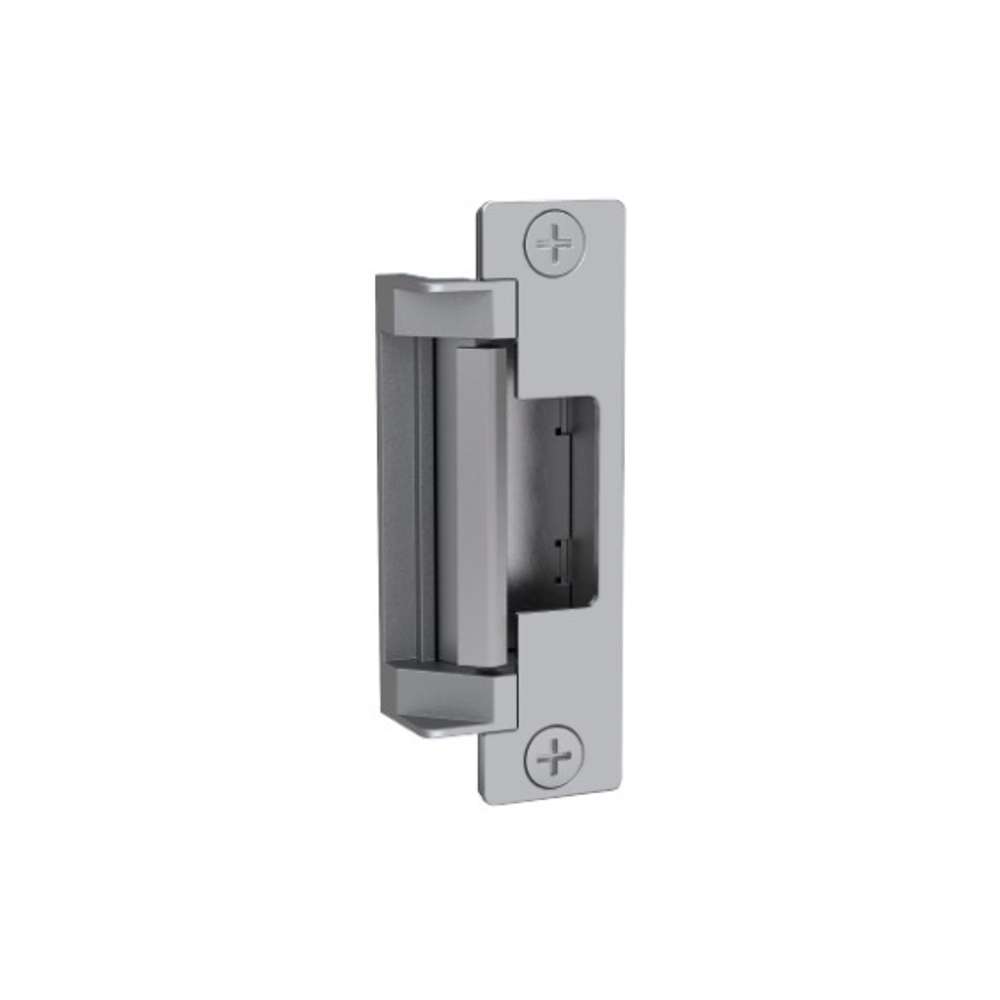

HES 4500C-LBSM-630 Electric Strike 12/24 AC/VDC, Fail Safe/Fail Secure
HES Electric Strike, 12/24 AC/VDC, Fail Safe/Fail Secure
The 4500C Series electric strike is designed for installation in 2" UL 10C fire rated frame with 1/2" drywall penetration. The 4500C features a low profile 1-3/8" depth, heavy-duty stainless steel construction. Its strength is dervied from a unique keeper pin locking design, enabling the 4500C to exceed the ratings of the frame, door and locking hardware. The 4500C includes two faceplates designed to accommodate either cylindrical or mortise locksets up to a 3/4" throw latchbolt.
Features and Benefits:
- Stainless steel construction.
- Tamper resistant.
- Static strength 3000 lbs.
- Dynamic strength 100 ft-lbs.
- Endurance 1,000,000 cycles.
- Field selectable fail safe/fail secure.
- Dual voltage 12 or 24 VAC/VDC.
- Two faceplates provided to accommodate a variety of locksets.
- Non-handed.
- Internally mounted solenoid.
- Accommodates up to a 3/4" deadbolt.
- Strike body depth 1-3/8".
- Plug-in connector.
- Trim enhancer.
- Full keeper shims for horizontal adjustment.
- Frame Application: Metal & Wood.
- Available in Satin Stainless Steel (630) & Bronze Toned (613) finish.
Specification Data:
- UL 10C fire-rated, 3 hour (fail secure only).
- CAN4-S104 (ULC-S104) fire door conformant.
- UL 1034, burglary-resistant listed.
- UL 294 (6th Edition) listed.
- ANSI/BHMA A156.31, Grade 1.
- NFPA-252 fire door conformant.
- ASTM-E152 fire door conformant.
- California Fire Marshall listed.
- RoHS compliant.
- Patent: 5,934,720.
Electrical:
.24 Amps @ 12VDC/VAC
.12 Amps @ 24VDC/VAC
DC Continuous duty/AC intermittent duty only
PoE friendly
Fail Secure (Power-to-Unlock): Unlocked when energized. Locked when de-energized and during power failure.
Fail Safe (Power-to-Lock): Locked when energized. Unlocked when de-energized and during power failure.
Optional Features:
LBM - Latchbolt Monitor: Monitors when the latchbolt is projected into the strike pocket.
LBSM - Latchbolt Strike Monitor: Monitors the locking mechanism in the electric strike is locked and the door will not open.
