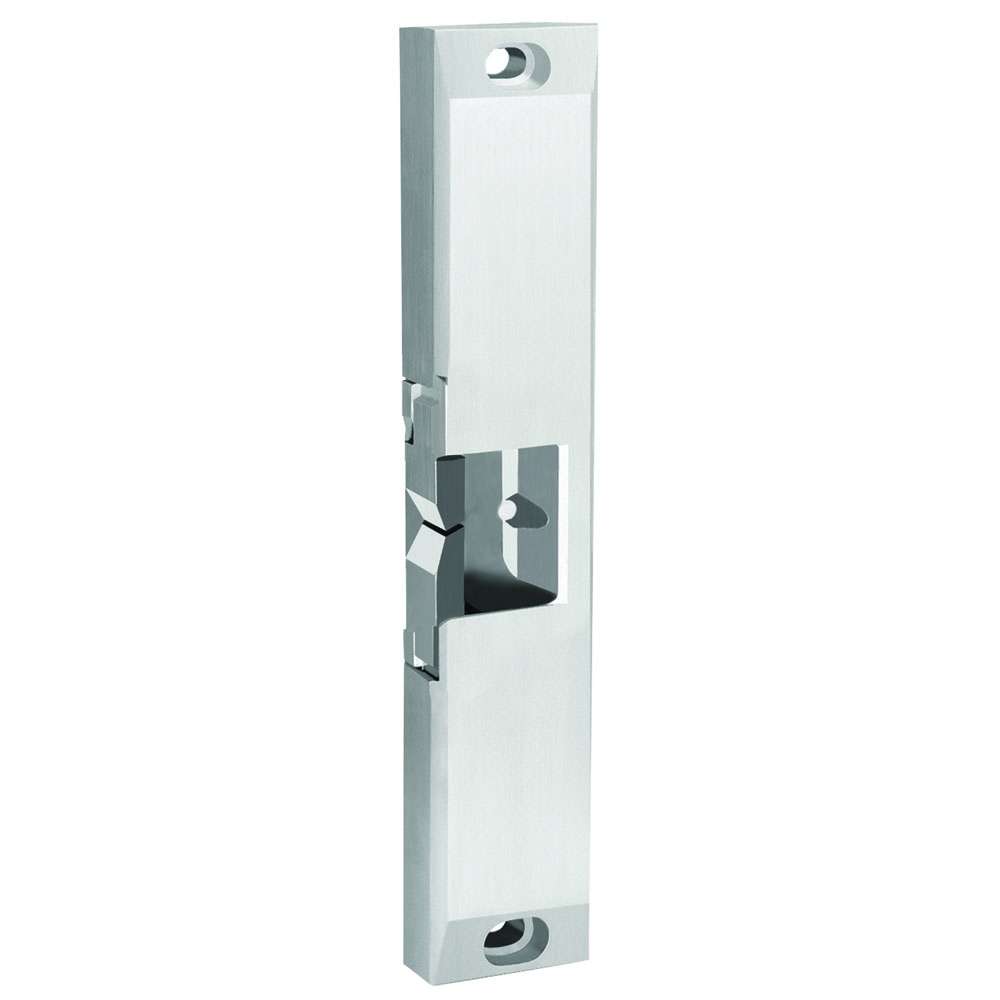

HES 9600-630-LBM Electric Strike is an Electric Strike in Satin stainless steel finish with a Latchbolt monitor
The HES 9600-630-LBM Electric Strike is an Electric Strike in Satin stainless steel finish with a Latchbolt monitor. The 9600 Series is a windstorm rated, surface mounted electric strike designed to accommodate rim exit devices with a 3/4" throw latch. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. It is field selectable for fail secure and fail safe operation, and for 12 or 24VDC.
The 9600 was the first surface mounted electric strike designed with the strength and durability required to exceed the severe forces of ANSI Windstorm testing.
Features include:
- Electric Strike Body
- 9600 Series
- Latchbolt monitor
- Satin stainless steel Finish
- Installs in metal or wood frames
- Separate base and cover for easy adjustments
- Stainless steel construction
- Tamper resistant
- Static strength 2,500 lbs.
- Dynamic strength 120 ft-lbs.
- Endurance 1,000,000 cycles
- Field selectable fail safe/fail secure
- Dual voltage 12 or 24 VDC
- Horizontal adjustment
- Non-handed
- Internally mounted solenoid
- Accommodates up to 3/4" Pullman latch
Delivery: The HES 9600-630-LBM Electric Strike is in stock, please allow 1-2 business weeks' lead time.
This item is available on our
GSA contract # 47QSWA19D001W
