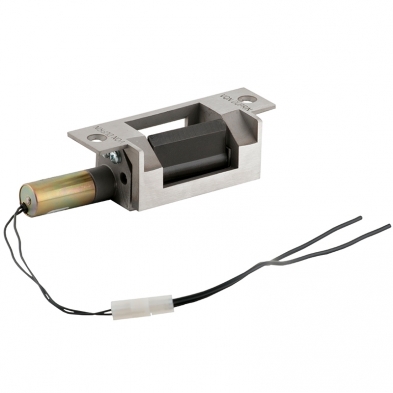

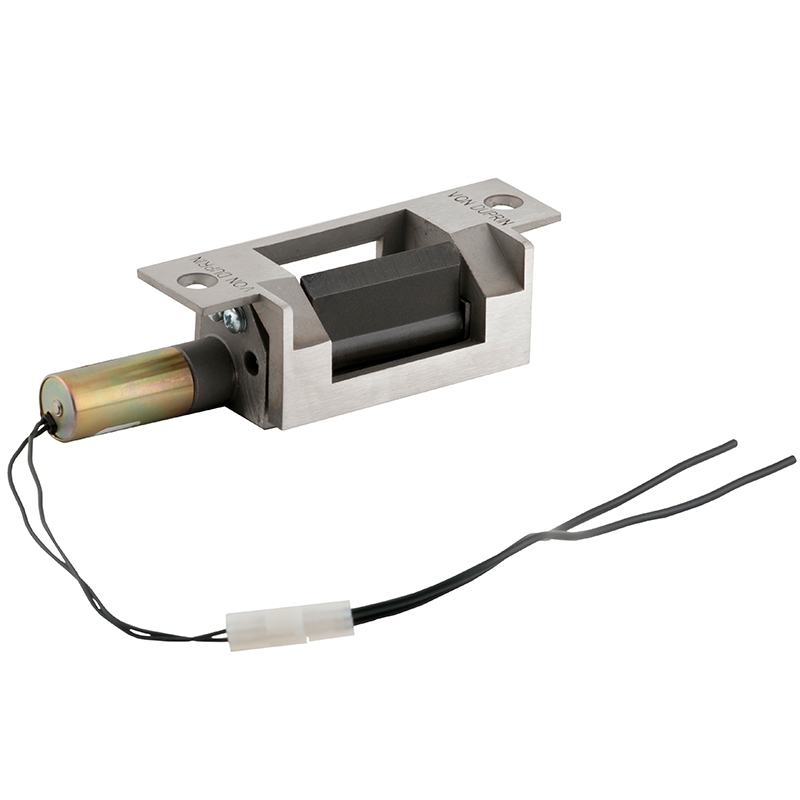

Von Duprin 6211-24V-US32D-DS Electric Strike

SKU # VD/6211-24V-32D-DS

Von Duprin 6211 Electric Strike

6211 electric strike: for use on new installations with mortise locks without deadbolt or cylindrical locks on single door, hollow metal frame applications. Designed to replace Von Duprin 3140 or Folger Adam 712

Heavy-duty stainless steel construction Tested to over 250,000 cycles, 1500 lbs. holding strength 70 lbs. impact strength.

FSE - Fail Secure (standard) electric strikes require power to be applied to unlock the strike lip. On loss of power, the strike is locked. Field convertible with parts.

FS - Fail Safe (Optional) electric strikes require power to be applied to lock the strike lip. On loss of power, the strike is unlocked. Building codes prohibit the use of fail-safe strikes on labeled openings. Field convertible with parts.

24VDC standard with 12VDC and AC operation optional.

Features and Benefits

Accepts 3⁄4˝ (19mm) Throw Latchbolt Non-handed Horizontally Adjustable
Strike box is adjustable to compensate for any misalignment of the door or frame Two piece plug connectors are furnished for ease of installation and for removal during strike servicing.

Options

FS - Fail Safe: electric strikes require power to be applied to lock the strike lip.
On loss of power, the strike is unlocked.

AC Operation: SO12 and SO24 are rectifier kits to  convert AC voltage to operate the  DC solenoids. These kits are field installable and plug in-line to solenoid.

DS - Dual Switch: Has two SPDT contacts, one switch monitors the tripper which is depressed when the latchbolt is inserted into the strike pocket. The second switch monitors the condition of the strike lip, open or
closed and locked.

EB - Entry Buzzer: Is available for use with fail-secure strikes. Installed in the frame and in parallel with the circuit, the buzzer will sound when the strike is
unlocked.

G.S.A. Contract Holder
This item is available on our
GSA contract # 47QSWA19D001W
US$900.25

Description:

Description:

Von Duprin 6211-24V-US32D-DS Electric Strike

The 6200 Series also provides added security and traffic control. 6200 Series electric strikes can be used for retrofit applications or new construction and is designed to withstand abuse.

  • Non handed design provides greater flexibility
  • Strike box is adjustable to compensate for misalignment of the door or frame
  • Two piece plug connectors are furnished for ease of installation and for removal during strike servicing
  • ANSI 156.5 Grade 1, 1500 lb hold-force rated
  • UL1034 Burglary-Resistant and UL10C Electric Strike for Fire Door
  • Six finishes available to suite with existing hardware
  • Durable stainless steel construction
  • 24 VDC standard with 12 VDC and AC operation optional
  • Meets BHMA A156.31, Grade 1 for endurance and strength
  • Static strength 1300 lbs
  • Dynamic strength 70 ft-lbs
  • Endurance 1,000,000 cycles
