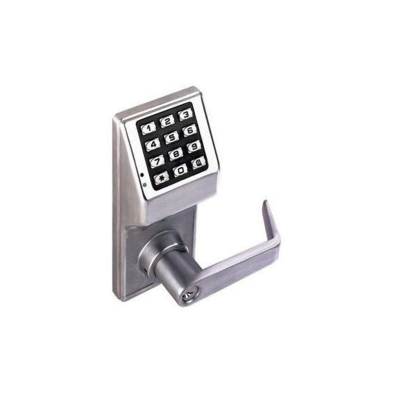

Alarm Lock T2 Trilogy Lock

SKU # AA/DL2700-26D

Read Review(s) | Log in to Review

The Alarm Lock DL2700-26D T2 Trilogy Lock is our Most Popular Standalone Pushbutton Cylindrical Lock:

  • Function: Standard (Schlage "SC1" Keyway Cylinder, included).
  • Finish: Satin Chrome (US26D).


Delivery: The Alarm Lock DL2700-26D T2 Trilogy Lock is in stock, please allow 1-2 business weeks' lead time.

G.S.A. Contract Holder
This item is available on our
GSA contract # 47QSWA19D001W
US$346.17

Description:

Description:

Alarm Lock DL2700-26D T2 Trilogy Lock

The Alarm Lock DL2700 Series is a standalone cylindrical lock that provides up to 100 codes with a digital keypad for access.



Features and Benefits:

  • Grade 1 Durability: Dependable lockset with rugged clutch mechanism, plus vandal-proof all metal keypad.
  • Multi-level used codes: Master, 10 managers, 90 users, 3 service codes.
  • Up to 100 different user codes (3-5 digits).
  • 100% keypad programmable with a fingertip.
  • Individual, group or total user lockout codes.
  • Easy passage mode by manager and/or master.
  • Easy to install in about a hour retrofits cylinder knobsets and digital locks using slightly modified ANSI A115 Series Prep.
  • Standalone battery operated; uses 5 AA batteries (included).
  • Non-handed for easy installation and versatility.
  • 2-wire remote override or key bypass capability.
  • Visual and audible entry indicators.
  • WP Models for weatherproof performance, water-sealed for use inside and out, with operational temperature range of +151°F to -31°F (+66°C to -35°C).



Finish: The Alarm Lock DL2700 comes in Satin Chrome (US26D) finish.



Cylinder: 6-Pin Solid Brass, SC1 Schlage Keyway included with Standard model.

Specifications:

Specifications:

Click Here for Alarm Lock Campus Security Solutions Sheet

Door Thickness: 1-5/8" to 1-7/8".
Backset: 2-3/4" Standard.
Keypad: All metal, 12 button programmable.
Latchbolt: UL Listed, fire rated, 3 hours, 1/2" throw.
Strike: 1-1/8" x 2-3/4" T-strike & 1-1/4" x 4-7/8" ASA strike included. With screws for wood or metal jambs.
Latch Front: 1-1/8" x 2-1/4" wrought brass or stainless steel.
Power: 5 AA alkaline batteries (included).
Door Prep: Standard ANSI A115 Series Prep, modified by adding additional through-bolt holes.
Compliances: Grade 1 heavy duty cylindrical lockset. UL Listed, FCC certified, ADA compliant levers.

Literature:

Literature:

Click Here for Alarm Lock Catalog

Product Videos:

Product Videos:

Reviews

Reviews

There is no review yet for this item.
