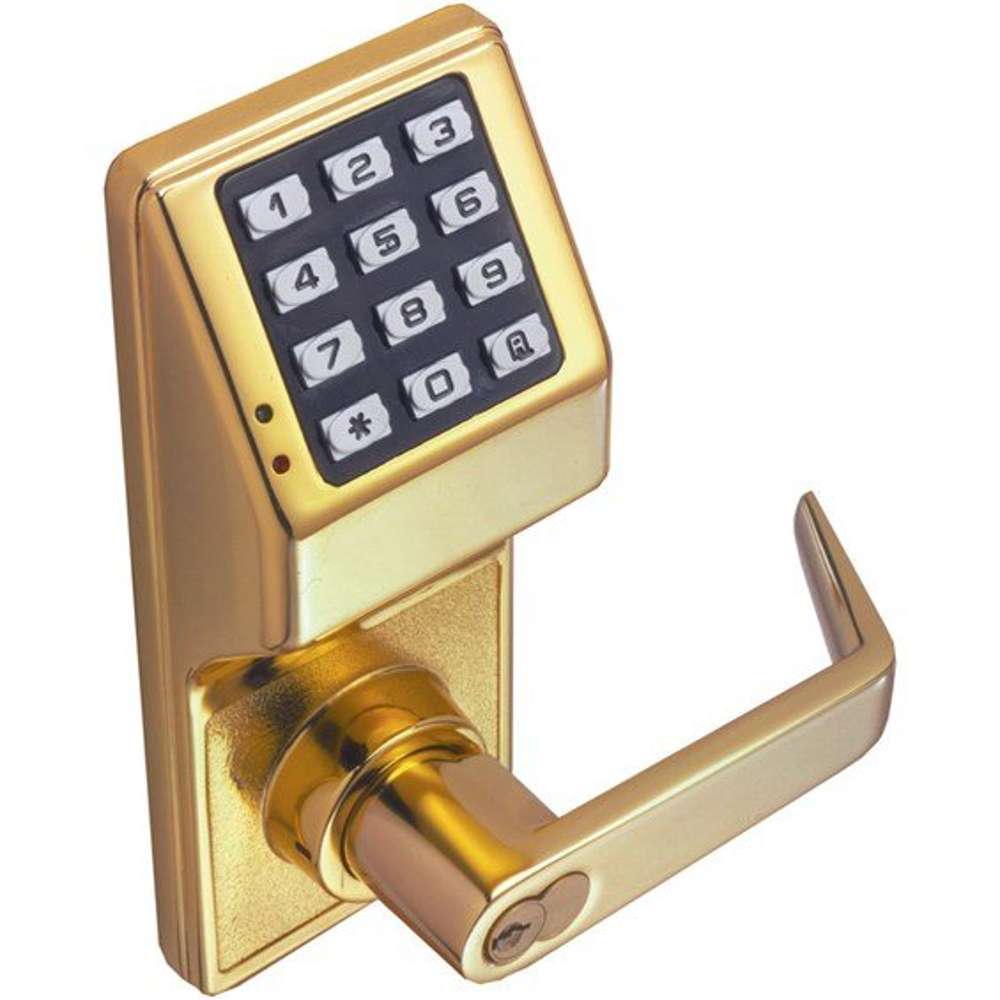

Alarm Lock DL2700-US3 Pushbutton Cylindrical Door Locks
Grade 1 Durability. Dependable lockset with rugged clutch mechanism, plus vandal-proof all metal keypad.
• Multi-level user codes: Master, 10 managers, 90 users, 3 service codes
• Up to 100 different user codes (3-5 digits)
• 100% keypad programmable with a fingertip
• Individual, group or total user lockout codes
• Easy passage mode by manager and/or master
• Easy to install in about an hour, retrofits cylindrical
knob sets and digital locks using slightly modified ANSI 161 Series Prep
• Standalone battery operated; 5 AA batteries rated at 200,000 cycles
• Non-handed for easy installation and versatility
• 2-wire remote override
• Visual and audible entry indicators
• WP Models for weatherproof performance, water-sealed for use inside and out, with an operational temperature range of +151°F to -31°F (+66°C to -35°C)
(Note: all Trilogy models are available in WP weatherproof and non-WP standard models for interior doors.)
OPERATION: Clutch mechanism permits turning lever without retracting latch and reduces stress on lock bodies and spindles.
Outside lever free turning in the locked position. Entering access code, key bypass, or remote bypass will allow the lever to retract the latch. side lever always instant egress.
DOOR THICKNESS: 1 5/8" to 1 7/8." Other thicknesses. Please consult Alarm Lock.
BACKSET: 2 3/4" Standard. 2 3/8" backset also available.
KEYPAD: All metal, 12 buttons programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability and allowable entry time from 5 to 20 seconds. 4 Different keypad tones and keypad
maybe silenced.
STANDARD KEY OVERRIDE CYLINDERS: Solid brass 6 pin tumbler cylinder pinned 5, SC1 keyway, furnished in all locks.
Additional tailpieces included: HW580 fits Schlage, Corbin/ Russwin CL, Sargent 480 Series, ASSA65-611. Model HW620 fits
Ilco and Lori cylinders.
INTERCHANGEABLE CORE MODELS: Accepts 6 & 7 Pin Cylinders from: Best, Arrow, KSP, Medeco Keymark & Kaba Peaks.
Also available IC Core models for Yale, Medeco, Sargent, Corbin/Russwin CL, and Schlage. Alarm Lock Tailpiece is supplied; IC Core is not included.
LATCHBOLT: UL Listed, fire-rated, 3 hours, 1/2” throw, solid brass, deadlocking. Reversible. Adjustable front for flat or beveled doors.
STRIKE: 1 1/8” x 2 3/4” T strike & 1 1/4” x 4 7/8” ASA strike included. With screws for wood or metal jambs.
LATCH FRONT: 1 1/8” x 2 1/4” wrought brass or stainless steel.
HANDING: Non-handed.
FINISHES: US3 polished brass, US26D satin chrome, 10B Duronodic.
POWER: 5 AA alkaline batteries are now rated at 200,000 cycles, supplied. Audible low battery alert, visual and audible entry
indicators, unique Flex Drive® motor.
DOOR PREP: Standard ANSI 161 Series Prep, modified by adding additional through-bolt holes.
COMPLIANCES: Grade I, heavy-duty cylindrical lockset, UL listed and FCC certified. ADA compliant lever sets
