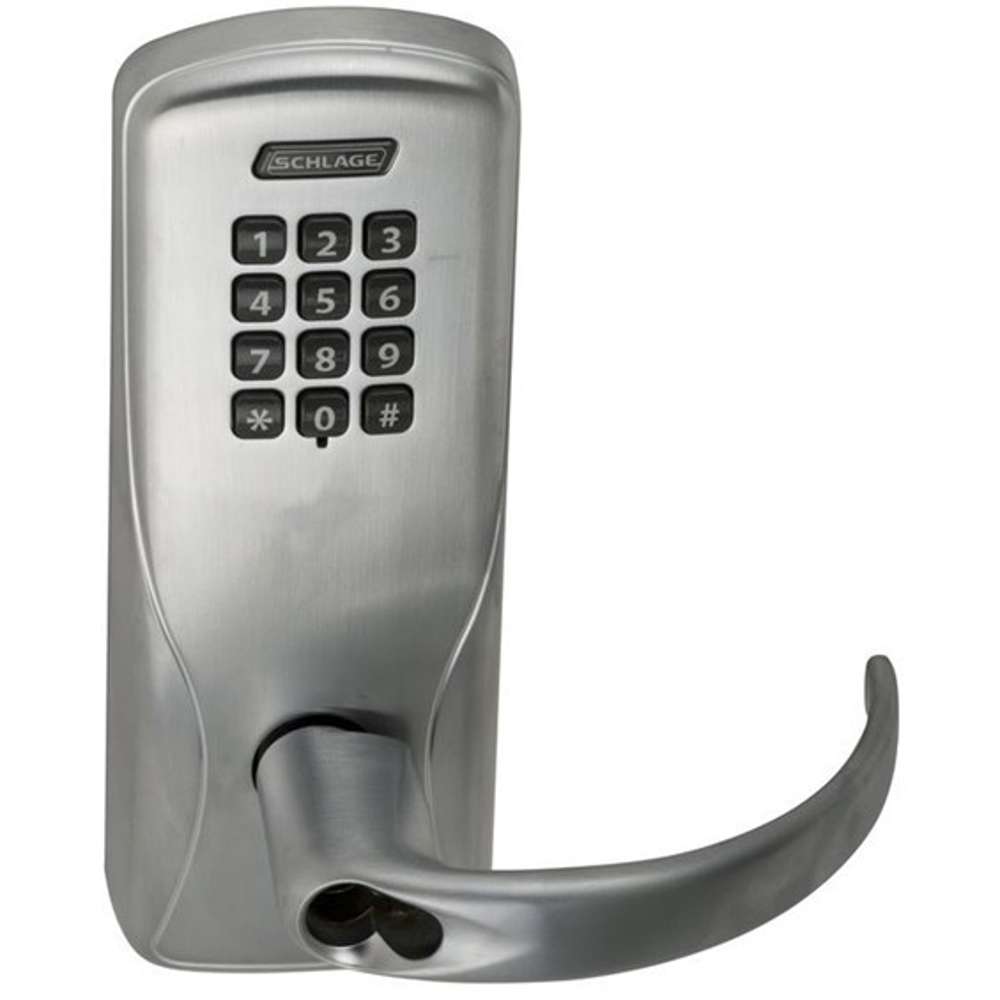

Schlage CO-100-CY-70-KP-RHO-626
The Schlage CO-100-CY-70-KP-RHO-626 is a standalone electronic cylindrical lock designed to provide robust access control with easy installation and operation. Here are the key features and specifications:
Key Features:
- Standalone Operation: The CO-100 is an offline, manually programmable lock that supports up to 500 unique 3-6 digit PIN codes. This makes it ideal for facilities where networked solutions are not feasible.
- Keypad and Mechanical Key Override: The lock features a 12-button keypad for PIN entry and includes a mechanical key override for emergency access.
- Storeroom and Classroom Functions:
- Storeroom: The lock remains secure from the outside and unlocks temporarily when a valid PIN is entered, then relocks automatically.
- Classroom: A toggle credential can switch the lock between "locked" and "unlocked" states from the outside.
- Heavy Duty and Secure: This Grade 1 lock is ANSI/BHMA A156.25 certified and UL 294 listed, ensuring high security and durability for high-traffic areas.
- Battery Powered: The lock operates on 4 AA batteries, offering up to 2 years of battery life, with a low battery warning system.
- Versatile Applications: Suitable for various environments, including classrooms, storerooms, common areas, and private spaces like restrooms or nursing rooms.
Specifications:
- Finish Options: Available in multiple finishes, including Satin Chrome, Aged Bronze, Bright Brass, and others.
- Lever Design: Features the Rhodes style lever.
- Cylinder Options: Compatible with Schlage C Keyway and S123 Keyway. It also supports interchangeable core options for different security needs.
- Backset: Adjustable backset options of 2-3/8", 2-3/4", 3-3/4", and 5".
- Door Thickness: Compatible with doors ranging from 1-3/8" to 2-3/4" thickness.
- Operating Conditions: Can operate in temperatures from -31°F to 151°F for exterior components and 32°F to 120°F for interior components.
This lock is particularly useful for minimizing key distribution and managing access with ease. It's an excellent choice for upgrading from traditional mechanical locks to electronic access control without the complexity of networked systems.
