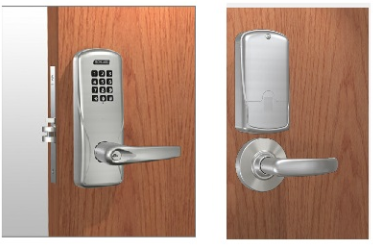

Schlage Electronics CO100MS70-KP-RHO-626-LD Electronic Lock
The Schlage Electronics CO100MS70-KP-RHO-626-LD Electronic Lock is a robust, standalone electronic mortise lock designed for heavy-duty applications such as classrooms and storerooms. Here are the key features and specifications:
Key Features:
- Standalone Operation: This lock operates independently without requiring network connectivity, making it a cost-effective solution for electronic access control.
- Keypad Entry: It supports up to 500 unique PIN codes, which can be easily programmed or deleted directly at the lock. This feature minimizes the need for physical key distribution, enhancing the security of your key management system.
- Mechanical Key Override: For added security and convenience, it includes a mechanical key override option compatible with multiple cylinder types.
- Grade 1 Security: The CO-100 series is ANSI/BHMA Grade 1 certified and UL 294 listed, ensuring high durability and security standards suitable for high-traffic areas.
- Flexible Functionality:
- Storeroom Function: The lock remains secure from the outside and unlocks temporarily when a valid PIN is entered, then relocks automatically.
- Classroom Function: A toggle credential can switch the lock between "locked" and "unlocked" states from the outside.
- Battery Powered: Operates on 4 AA batteries, offering up to 2 years of battery life, with a low battery warning system.
Specifications:
- Finish Options: Satin Chrome, Aged Bronze, Bright Brass, and others.
- Lever Design: Rhodes style lever.
- Cylinder Compatibility: Compatible with Schlage C Keyway and S123 Keyway.
- Backset: 2-3/4".
- Latch and Strike: 3/4" throw stainless steel latch with anti-friction tongue; 4-7/8” x 1-1/4” ASA/ANSI strike.
- Door Thickness: Suitable for doors with a thickness of 1-3/4".
- Operating Temperature: -31°F to 151°F for exterior components; 32°F to 120°F for interior components.
- Dimensions: Exterior - Height: 9.46", Width: 3.44", Projection: 3.67"; Interior - Height: 10.69", Width: 3.44", Projection: 2.96".
This lock is ideal for environments where managing user access is critical, such as schools, offices, and storerooms. It provides a reliable, secure solution without the complexities of a networked system.
