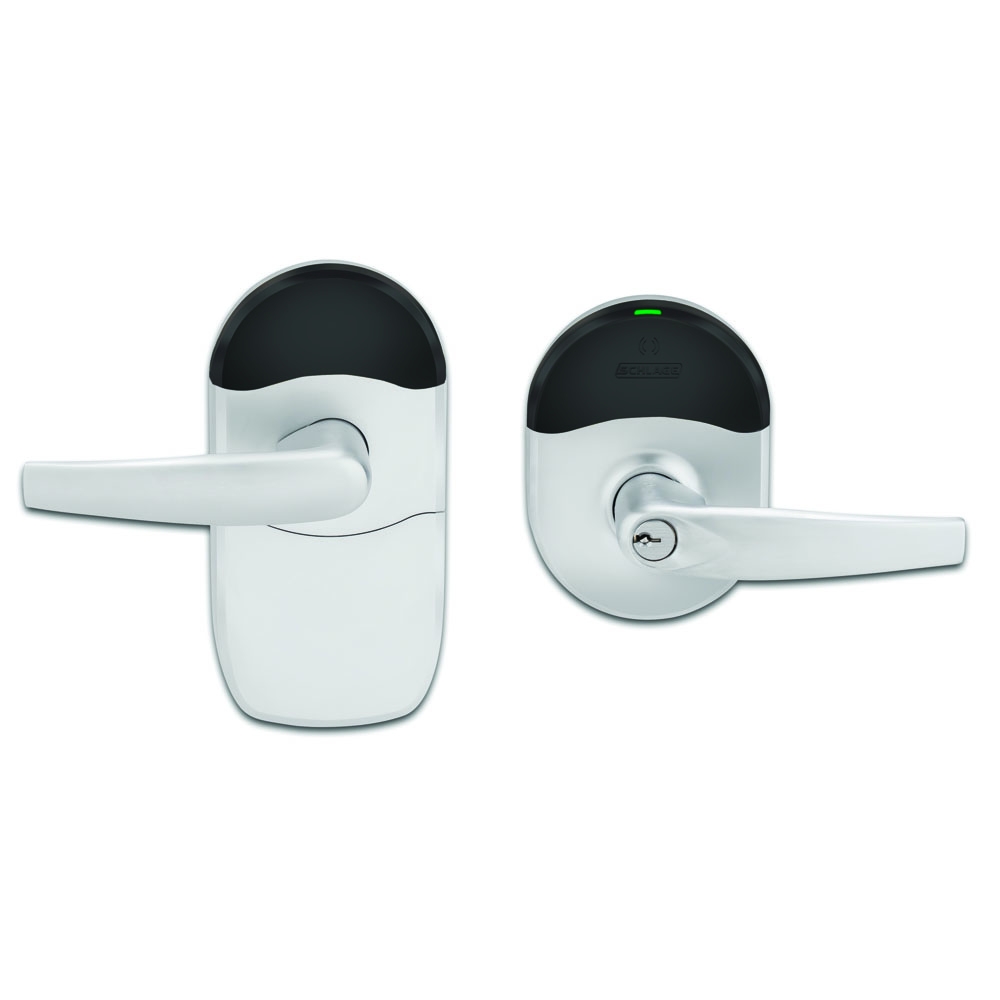

Door Handing: The Schlage Commercial NDBE-Series Levers are reversible.
Function: The Schlage NDBE-Series Levers are available in Storeroom with Vandlgard (NDBE) function.
Finish: The Schlage NDBE-Series Levers come in Satin Chrome (626) finish.
Lever Design: The Schlage NDBE-Series Levers come in Rhodes (RHO) design.
Chassis: Cylindrical.
Handing: Right-handed from factory. Field reversible in seconds (no tools required).
ANSI Standard: ANSI/BHMA A156.25-2013 (Indoor/Outdoor).
Door Thickness: 1-5/8" - 2" (41mm - 51mm) only.
Backset: Standard 2-3/4" backset.
Latch bolt: 1-1/8" x 2-1/4", Square Corner Faceplate, 1" housing diameter, 1/2" throw.
Strike: Standard 1-3/16" lip, ANSI, DPS, 1-1/4" x 4".
Certification: ANSI/BHMA Certified A156.25-2013, A156.2-2011, Series 4000, Grade 1, UL 294, UL 10C.
Function: F70 - Storeroom (Storeroom Lock with Vandlgard): Lockset is normally secure with outside lever disengaged. Valid credential or key momentarily unlocks door. Valid credential may be used to change to a passage or secured state. Inside lever always allows free egress.
NDE-Series Wireless Lock Specifications:
Users: Up to 5,000.
Audits: Up to 2,000.
Credential Verification Time: < 1 second.
Visual Communicatons: LED (red, amber, green).
Audible Communications: Audible indicator (field configurable).
Communication standards:
- 2.4 Ghz Wi-Fi (IEEE 802.11b/g).
- WPA2, WPA, WEP, 802.1x.
- Bluetooth low energy (version 4.0).
- Transport Layer Security (TLS) version 1.0.
- Advanced Encryption Standard (AES), 256-bit.
Wake-Up on Radio: Responds to command from host in less than 5 seconds when linked to ENGAGE Gateway (requires alliance member software).
Data Rate: 24 Mbps via Wi-Fi.
Connectivity Options:
- Mobile (send updated at the lock).
- Wi-Fi access point (automatic daily updates).
- No-Tour with MT20W enrollment reader and smart credentials.
- ENGAGE Gateway (real-time communicaton).
- RS-485 to ACP or IP to host.
Battery life: Up to 2 yrs with 4 AA batteries.
Operating temperature:
- Exterior: -31° to 151°F (-35° to 66°C).
- Interior: 32° to 120°F (0° to 49°C) (battery).
Operating humidity: 0 - 100% non-condensing.
* For PD Entry Locks Only:
Cylinder: 6-Pin, Schlage "C" Keyway (SC1), Keyed Different (KD).
Keying Options: See "Keying Options" for the following keying options on the PD NDBE-Series Levers:
- Keyed Alike: 1 key works all locks.
- Master Keyed: Locks are Keyed Different (KD) with 2 keys per lock; 1 Master Key opens all locks.
